ZeeVee Z4KDF3UA ZyPer4K HDMI 2.0 Fiber Decoder with USB and Dante

Product Overview

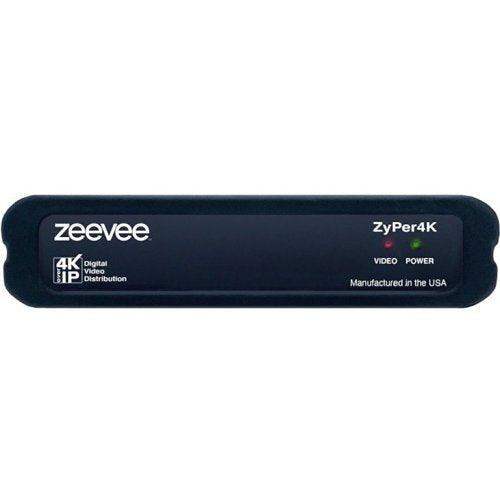

The ZeeVee Z4KDF3UA is a ZyPer4K SDVoE fiber decoder that outputs HDMI 2.0 video and transmits audio over a Dante network, with USB 2.0 extension over 10Gb multimode fiber up to 300 meters. As a Dante AV-over-IP decoder with integrated fiber connectivity and USB, it serves commercial AV installations requiring synchronized 4K video delivery alongside Dante audio distribution — eliminating the need for a separate Dante transmitter at the display endpoint. The unit is managed via the ZyPer Management Platform for video routing, video wall, and multiview configuration.

Product Description

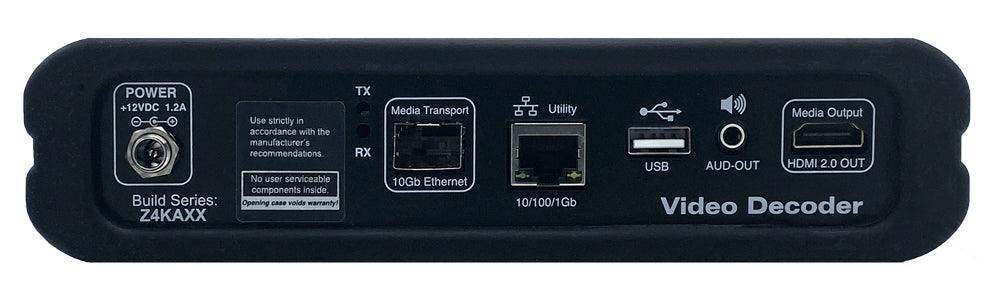

The Z4KDF3UA is a specialized variant in the ZyPer4K decoder family, adding Dante audio transmitter capability to a standard HDMI 2.0 output decoder. It receives ZyPer4K SDVoE streams over 10Gb SFP+ multimode fiber (up to 300m) and outputs video to an HDMI 2.0 display while simultaneously sending audio to a Dante audio network. This is particularly valuable in installations where Dante is the established audio distribution standard and video is distributed separately via SDVoE — such as large conference centers, performing arts facilities, and enterprise campuses with Dante audio infrastructure. The integrated USB 2.0 port enables KVM-over-IP at the display endpoint. ZMP manages all video routing assignments, video wall configurations (up to 15x15), and multiview layouts (up to 19 sources). HDCP 2.2 and AES-128 encryption are standard. RS-232 (9-pin D-sub, 115.2 kbps) and IR (3.5mm) pass-through enable control system integration at the display location. Power consumption is approximately 9W.

Key Features

• HDMI 2.0 Video Output — Delivers decoded 4KP60 4:4:4 video to HDMI displays from the ZyPer4K SDVoE network.
• Dante Audio Transmitter — Sends audio from the decoded stream onto a Dante audio network, integrating with existing Dante infrastructure at the display endpoint.
• USB 2.0 Extension — Enables display-side keyboard, mouse, and peripheral connection to remote source workstations via the SDVoE network.
• 10Gb Multimode Fiber (SFP+) — Fiber connectivity to 300m for long-distance display endpoint deployments.
• Uncompressed 4KP60 4:4:4 — Full-bandwidth, zero-latency 4K video decode and output.
• Video Wall: 15x15 — Large-format video wall support managed via ZMP.
• Multiview: 19 Sources — Flexible multi-source display layout configurations.
• HDCP 2.2 + AES-128 — Content protection and encrypted network transport.
• RS-232 & IR Pass-Through — Control system integration at the display location.
• ~9W Power Draw — Low consumption for high-density display deployments.
• 3-Year Warranty — ZeeVee standard commercial warranty.

Typical Applications

• Conference centers and meeting rooms with Dante audio networks and ZyPer4K 4K video distribution
• Performing arts facilities integrating SDVoE video distribution with Dante audio infrastructure
• University auditoriums and lecture halls with separate Dante audio and ZyPer4K video systems
• Corporate campus AV with Dante audio routing and SDVoE 4K video over fiber
• Houses of worship with established Dante audio networks receiving 4K video from ZyPer4K
• Broadcast and production environments with Dante audio distribution and IP video routing

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the Dante audio transmitter require a separate Dante license?

Dante licensing requirements depend on the Dante network configuration and any Dante Controller software in use. Consult ZeeVee and Audinate documentation for Z4KDF3UA-specific Dante licensing details prior to deployment.

Can the Z4KDF3UA output audio via both Dante and the 3.5mm analog port?

The unit includes both a Dante audio transmitter and an unbalanced stereo 3.5mm analog audio output. Consult ZeeVee's current firmware documentation for simultaneous output behavior.

Does Dante audio sync with the HDMI video output?

The Z4KDF3UA is designed to maintain audio-video synchronization between the Dante audio stream and the HDMI video output. For latency-critical deployments, verify sync performance in your specific network environment with ZeeVee support.

Is USB extension supported when Dante is active?

Yes. USB 2.0 extension operates independently of the Dante audio transmitter function. Both can be active simultaneously.

What Dante-enabled devices can receive audio from this decoder?

Any Dante-compatible device on the same Dante network — including Dante-enabled amplifiers, DSP processors, and audio interfaces — can receive audio transmitted by the Z4KDF3UA. Device discovery and routing is managed via Audinate's Dante Controller software.

Is there a copper equivalent of the Z4KDF3UA?

The Z4KDF3UA is a fiber-only model. For Dante decoder capability over copper, contact ZeeVee to confirm current product availability in the ZyPer4K line.

Does this decoder require the ZyPer Management Platform?

Yes. ZMP is required for all video routing, video wall, and multiview configuration. The Dante audio routing is managed separately via Dante Controller software.
