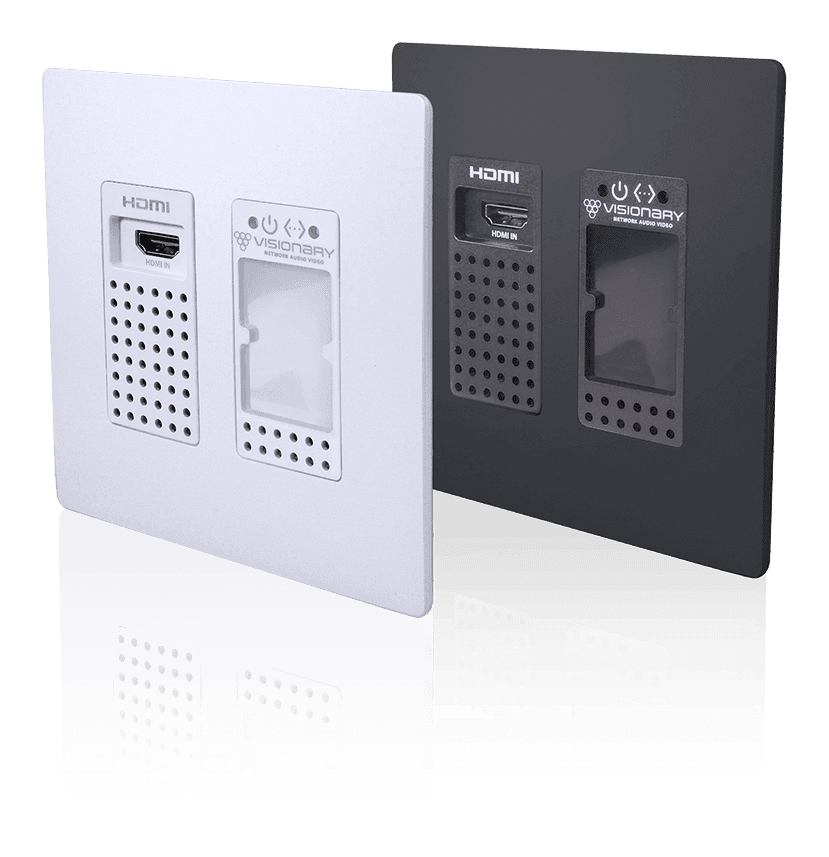

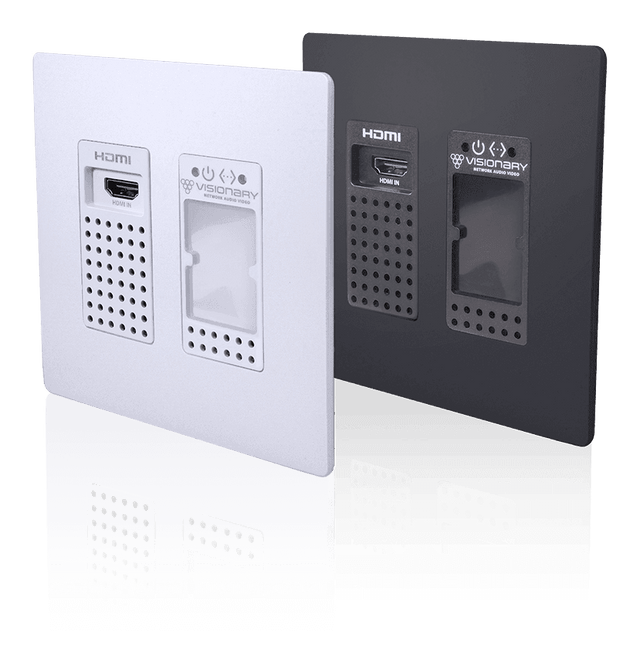

Visionary Solutions PacketAV DuetE-WP-H Wall Plate Encoder Faceplate, HDMI Only

The PacketAV® Duet Wallplate Encoder has been nothing short of a paradigm shift for networked AV.
True convergence; a single platform to support Dante™ /AES67 and Video over IP in a convenient wallplate form-factor.
Building on their success and wide adoption, the next generation of PacketAV® Duet Wallplate Encoders continue to provide powerful 4K UHD Video and Dante™ /AES67 Audio over a single Gigabit Ethernet port, now in a simplified HDMI only version for streamlined installations.

Features

One Gigabit LAN Port for 4K UHD Video, Dante®/AES67, and Control

• A single Ethernet port for Video over IP and Dante® AES67 audio embedding and de-embedding, with VLAN tagging capability to separate Audio & Video network traffic as needed

Balanced Audio Line Output on Rear Panel

• A rear-panel euro terminal block provides a stereo balanced audio output from Dante or de-embedded from HDMI.
  This output can feed a variety of local devices to provide a specific line level output to users, or it may be used to directly feed an audio power amplifier in the associated audio zone.

Mass Configuration

• Auto Discover all endpoints on the network, export to .CSV file (all configurable parameters included), make changes offline, upload .CSV file through embedded web page of encoder/decoder and push configuration to the network
• No external software required – mass configuration capabilities built into the endpoint embedded webpage UI

LLDP Support

• Link Layer Discovery Protocol (LLDP) is a protocol used by network devices for advertising their identity, capabilities, and neighbors on a local area network based on IEEE 802 technology
• Allows for dynamic control of endpoints based on automatic discovery of physical location

QoS Support

• Quality of Service (QoS) is an advanced feature that prioritizes network traffic resulting in performance improvement for critical network traffic

Control

• Vision Lite Control Software
• 3rd Party Control Drivers [Crestron, QSC, Symetrix, RTI, etc.]
• *API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators

HDMI 2.0 and HDCP 2.2 Compliant

Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built in Al

• Visionary’s highly efficient video compression codec is a modified full frame encoding that dynamically optimizes for fine lines (computer generated graphics) or motion video by using sophisticated Al to analyze the input source content. Actively matching the level of compression to a scene by leveraging periods of low motion video content reduces the stream’s size and enhances performance – enabling, without compromising image quality, Visually Lossless transmission of computer generated graphics or full-motion video sources.
• Adjustable Video Bitrate: (50 – 200 Mbps or Auto [800Mbps max])

Enterprise Level Security -AES Encryption, 802.1x, HTTPS, SSH

• Enterprise applications demand a secure Network AV solution
  • AES Stream Encryption – The Advanced Encryption Standard, or AES, is a worldwide standard and was adopted as the standard encryption algorithm by the U.S. government for encrypting classified information
  • HTTPS Secure API – Using secure SSL/TLS communications
    HIPS provides integrity that a client is communicating with the real API and receiving back authentic data.
    It also ensures privacy for applications and users using the API
  • 802.1x Authentication for Network access control – 802.1X provides a secure authentication mechanism for any device trying to access a network
  • SSH Network Protocol – SSH is a network protocol used to remotely access and manage a device through command line communications. The key difference between Telnet (used by other AV over IP manufacturers) and SSH is that SSH uses encryption, which means that all data transmitted over a network is secure

Seamless Fast Switching

• Tearing free, no black screen, no frame lock

Independent Routing

• Independently route all signals with the ability to separately matrix video & Bluetooth audio (including Dante®/AES67)
