Vaddio OneLINK Bridge Polycom Codec Kit for Vaddio HDBaseT Cameras - 999-9645-000

Product Overview

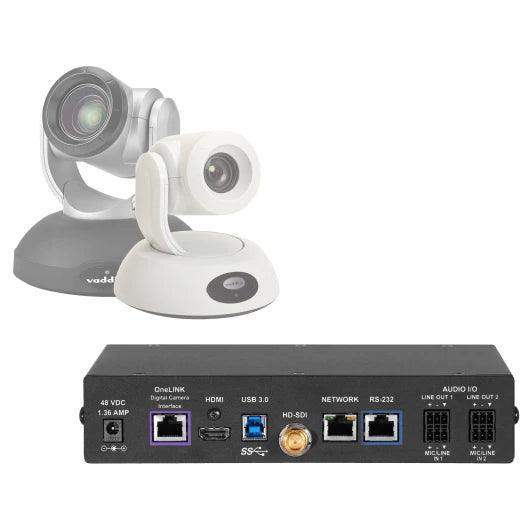

The Vaddio 999-9645-000 OneLINK Bridge Polycom Codec Kit bridges Polycom RealPresence Group 300, 310, 500, and 700 codecs with Vaddio HDBaseT cameras into USB-based soft-client conferencing platforms. It extends power, video, and control over a single Cat-5e or Cat-6 cable up to 328 ft (100m), delivers a simultaneous USB 3.0 output for Zoom, Teams, and Webex compatibility, and includes a configurable audio matrix with AEC. Compatible cameras include RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT.

Product Description

Many organizations deployed Polycom RealPresence Group codec systems paired with Vaddio HDBaseT cameras. As UCaaS platforms have become the primary conferencing medium, these facilities need a path to connect their existing infrastructure to Zoom, Teams, and Webex without replacing functional equipment.

The 999-9645-000 provides exactly that bridge. The OneLINK Bridge interface accepts video and control from a compatible Vaddio HDBaseT camera, routes it via HDBaseT to the AV rack, and outputs simultaneous HDMI (for the Polycom codec), USB 3.0 (for a room PC running Zoom or Teams), and HD-SDI. This means the Polycom codec retains full functionality for traditional codec-based calls while the USB 3.0 output makes the camera available to any soft client. Both call types run from the same room simultaneously without reconfiguration.

A configurable audio matrix with AEC handles audio routing and echo cancellation for both hard-codec and soft-client call types. A browser-based web interface provides system configuration and management. The bundle includes a Polycom fan-out cable, USB 3.0 cable, EZCamera RS-232 adapter, 48V power supply, and phoenix-style connectors.

Key Features

• Bridges Polycom Codecs to USB Soft-Client Conferencing - Enables Polycom RealPresence Group 300/310/500/700 systems to connect to Zoom, Teams, Webex, and other UC platforms.
• Compatible with Vaddio HDBaseT Cameras - Works with RoboSHOT 12E HDBT, 30E HDBT, RoboSHOT 20 UHD, 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT.
• Single-Cable HDBaseT Extension - Power, video, and control over Cat-5e up to 230 ft (70m) or Cat-6 up to 328 ft (100m).
• Simultaneous HDMI, USB 3.0, HD-SDI Outputs - Concurrent feeds for codec, soft-client PC, and HD-SDI distribution.
• Up to 1080p/60 via USB - Uncompressed USB 3.0 stream for full HD cloud conferencing.
• Configurable Audio Matrix with AEC - Handles audio routing and echo cancellation for both call types.
• Browser-Based Administration - Web UI for configuration and management from any networked device.
• Complete Polycom Cable Kit Included - Fan-out cable, USB 3.0 cable, RS-232 adapter, 48V power supply, and connectors.

Typical Applications

• Corporate boardrooms with Polycom RealPresence Group codecs and Vaddio cameras transitioning to hybrid UCaaS
• Government and legal meeting rooms with legacy Polycom AV infrastructure
• Education and training rooms needing simultaneous codec and cloud conferencing capability
• Enterprise facilities extending Polycom codec investments to support modern soft clients

Technical Specifications

Frequently Asked Questions

Which Polycom codecs does this kit support?
Polycom RealPresence Group 300, 310, 500, and 700 series codecs are supported.

Which Vaddio cameras are compatible?
RoboSHOT 12E HDBT, RoboSHOT 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT. Contact Creation Networks to confirm compatibility with your specific configuration.

Does the Polycom codec continue working for traditional video calls after installation?
Yes. The HDMI output continues to feed the Polycom codec for traditional codec-based calls. The USB 3.0 output simultaneously enables Zoom, Teams, and Webex connections.

What is the maximum cable run to the camera?
Cat-5e up to 230 ft (70m); Cat-6 up to 328 ft (100m) in a single cable run carrying power, video, and control.
