Tascam DR-40X 4-Channel / 4-Track Portable Audio Recorder and USB Interface with Adjustable Mic
Tascam DR-40X 4-Channel / 4-Track Portable Audio Recorder and USB Interface with Adjustable Mic is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tascam DR-40X 4-Channel / 4-Track Portable Audio Recorder and USB I...
For podcasts, sound effects, and music recording applications, the TASCAM DR-40X portable handheld recorder is capable of capturing up to four tracks of high-resolution audio with no external microphones required. Its onboard unidirectional condenser mics can be set for a wide or tight stereo image, and may be used simultaneously with the mic/line combo inputs. Equally adept as a handheld device or when used in stand- or camera-mounted setups, the DR-40X can handle anything from sampling sessions and interviews to podcasts and live concerts.
Flexible powering methods—batteries, USB bus power, or an AC adapter—make the DR-40X well suited to on-the-go recording, all-day video shoots, and computer-based audio production. Need to patch in external mics or an outboard mixer? The DR-40X's two balanced XLR-1/4" inputs accommodate mic- or line-level signals (even +4 dBu from professional consoles) and can supply phantom power if needed. Whether you use the built-in mics or an external source, selectable modes such as stereo safety track recording, peak reduction, limiting, and auto level give you options for achieving a clean, undistorted recording.

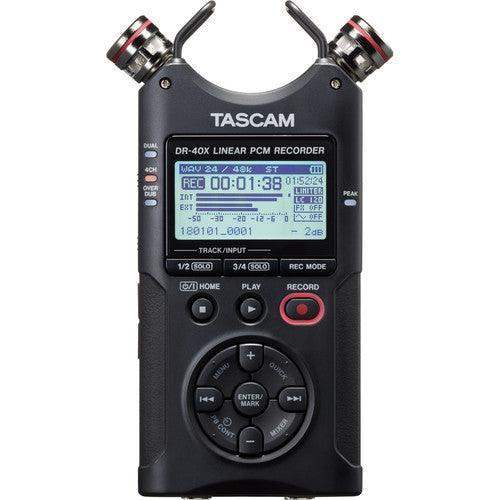

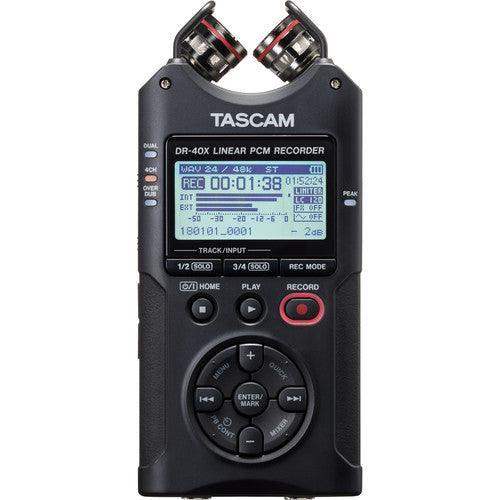

Easily pivot the capsules between two mic configurations to complement your sound source—use the A-B position (capsules facing outward) to produce a wide stereo image, or switch to the X-Y position (capsules facing inward) if you need a tighter stereo field with a strong center presence and fewer phase differences.
Features
- 128 x 64 pixel graphic LCD with backlight
- Quick-menu button for easy access to various functions
- 10 menu languages
- Delay compensation function eliminates time lags caused by differences in the distances of two sets of inputs from the sound source
- Overwrite function for punch-in recording with one level of undo
- Dictation mode designed for human voice recording and transcription
- Adjustable playback speed from 0.5 to 2 times (in 0.1 increments) at 44.1 kHz or 48 kHz
- MS decoding function allows proper stereo monitoring of a mid-side mic configuration
- Automatically creates a new file when the maximum file size is reached
- File divide/delete functions
- Loop/repeat playback
- Resume function retains the last stop point even when the DR-40X is powered off/on
- Jump-back playback feature skips back 1 to 10, 20, or 30 seconds during playback
- Up to 99 marks (locate points) per track
- Track increment creates new files at arbitrary locations during recording
- File name format can be set to use a user-defined word or the date
- The first six characters of the file name for recording can be set freely
- Playlist function
- Chromatic tuner
- Built-in rubber feet reduce the transfer of vibrations from a desktop or table to the onboard microphones
Specifications
TASCAM DR-40X Specs
| Number of Tracks | 4 |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Microphone | Built-In Cardioid Condenser Stereo Pair, A/B or X/Y Configuration |
| Built-In Speaker | Yes, 0.3 W Mono |
| Display | Monochrome LCD (Backlit) |
| Memory Card Support | SD (64 MB to 2 GB) SDHC (4 GB to 32 GB) SDXC (48 GB to 128 GB) |
| Internal Storage | None |
| Audio File Formats | BWF, MP3, WAV |
| Sample Rates | WAV: 44.1 / 48 / 96 kHz MP3: 44.1 / 48 kHz |
| Bit Depth | 16 / 24-Bit |
| Bit Rates | 32 to 320 kb/s (Record) 32 to 320 kb/s + VBR (Playback) |
| Signal Processing & FX | Auto Gain, EQ, Limiter, Low-Cut Filter, Reverb |
| Timecode Support | No |
| Recording Time | WAV 44.1 kHz/16-Bit: 1 Hr 41 Mins per GB (Stereo) WAV 48 kHz/16-Bit: 1 Hr 33 Mins per GB (Stereo) WAV 96 kHz/16-Bit: 46 Mins per GB (Stereo) WAV 44.1 kHz/24-Bit: 1 Hr 7 Mins per GB (Stereo) WAV 48 kHz/24-Bit: 1 Hr 2 Mins per GB (Stereo) WAV 96 kHz/24-Bit: 31 Mins per GB (Stereo) MP3 32 kb/s: 74 Hrs 32 Mins per GB (Stereo) MP3 64 kb/s: 37 Hrs 16 Mins per GB (Stereo) MP3 96 kb/s: 24 Hrs 50 Mins per GB (Stereo) MP3 128 kb/s: 18 Hrs 38 Mins per GB (Stereo) MP3 192 kb/s: 12 Hrs 25 Mins per GB (Stereo) MP3 256 kb/s: 9 Hrs 19 Mins per GB (Stereo) MP3 320 kb/s: 7 Hrs 27 Mins per GB (Stereo) |

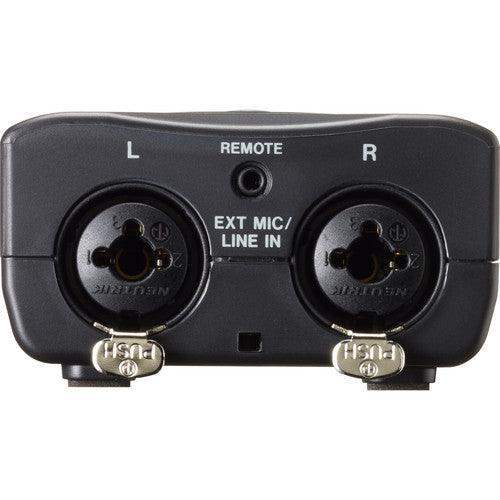

| Analog I/O | 2 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output |
| Digital I/O | None |
| Phantom Power | +24 / 48 V, Selectable On/Off (Applied to All Inputs) |
| Phantom Power Current | 3 mA per Channel |
| Plug-In Power | No |
| System Connection | 1 x Micro-USB (2.0) |
| Frequency Response | 20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA) 20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA) 20 kHz to 40 kHz +1/-3 dB (at 96 kHz, JEITA) |
| Max Input Level | Mic Inputs: -3 dBV Line Inputs: +20 dBu |
| Max Output Level | +2 dBV |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Impedance | Mic Inputs: 2.2 Kilohms Line Inputs: 10 Kilohms Line Outputs: 12 Ohms |
| SNR | Line Outputs: >92 dB |
| THD | ≤0.05% |
| Microphone Max SPL | 125 dB SPL |
| Power Options | Battery, USB Bus Power, AC/DC Power Adapter |
| Battery Type | 3 x AA (Included) |
| Approximate Battery Life | WAV 44.1 kHz/16-Bit: 18 Hours (Alkaline, 2 Channels, Phantom Off, Recording) 6.5 Hours (Alkaline, 2 Channels, Phantom On, Recording) 9 Hours (Alkaline, All Channels, Phantom Off, Recording) 19.5 Hours (Alkaline, 2 Channels, Playback, with Headphones) 16 Hours (Alkaline, All Channels, Playback, with Headphones) 16 Hours (NiMH, 2 Channels, Phantom Off, Recording) 5.5 Hours (NiMH, 2 Channels, Phantom On, Recording) 7.5 Hours (NiMH, All Channels, Phantom Off, Recording) 15.5 Hours (NiMH, 2 Channels, Playback, with Headphones) 12.5 Hours (NiMH, 2 Channels, Playback, with Headphones) WAV 96 kHz/24-Bit: 14.5 Hours (Alkaline, 2 Channels, Phantom Off, Recording) 8.5 Hours (Alkaline, All Channels, Phantom Off, Recording) 14 Hours (Alkaline, 2 Channels, Playback, with Headphones) 14 Hours (Alkaline, All Channels, Playback, with Headphones) 11 Hours (NiMH, 2 Channels, Phantom Off, Recording) 7.5 Hours (NiMH, All Channels, Phantom Off, Recording) 12 Hours (NiMH, 2 Channels, Playback, with Headphones) 11.5 Hours (NiMH, All Channels, Playback, with Headphones) MP3 128 kb/s: 16 Hours (Alkaline, 2 Channels, Phantom Off, Recording) 9 Hours (Alkaline, All Channels, Phantom Off, Recording) 16.5 Hours (Alkaline, 2 Channels, Playback, with Headphones) 16.5 Hours (Alkaline, All Channels, Playback, with Headphones) 12.5 Hours (NiMH, 2 Channels, Phantom Off, Recording) 8 Hours (NiMH, All Channels, Phantom Off, Recording) 13 Hours (NiMH, 2 Channels, Playback, with Headphones) 13.5 Hours (NiMH, All Channels, Playback, with Headphones) |
| AC/DC Power Adapter | VDC Not Included |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Mounting Options | 1/4"-20 Female |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 2.8 x 6.1 x 1.4" / 70 x 155 x 35 mm (Mics Closed) 3.5 x 6.1 x 1.4" / 90 x 155 x 35 mm (Mics Open) |
| Weight | 7.5 oz / 213 g (without Batteries) 9.9 oz / 282 g (with Batteries) |
| Package Weight | 1.05 lb |
| Box Dimensions (LxWxH) | 15.95 x 8.2 x 1.06" |
