Shure AD3 PLUG-ON MICROPHONE TRANSMITTER
Description

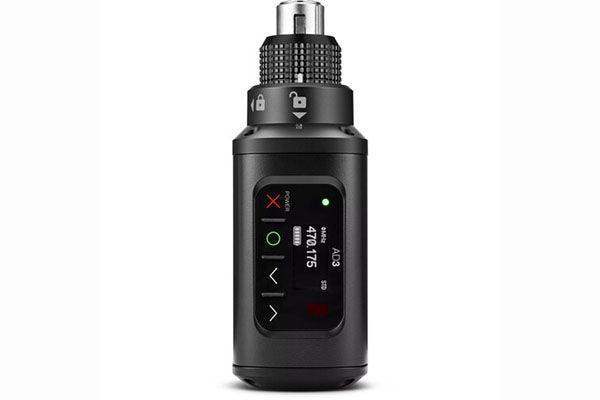

The Axient Digital AD3 plug-on transmitter transforms any microphone into an advanced, portable Axient Digital AD Series wireless microphone, delivering impeccable audio quality and RF performance, wide-tuning, and encryption features. Compatible with Axient Digital AD4D and AD4Q receivers in Standard or High Density modes, AD3 features a custom, fast, and secure XLR connector design, support for both AA and Shure SB900-series rechargeable battery options, and simple, user-friendly controls and menus. The AD3 is housed in a lightweight, rugged, metal chassis and is designed to resist sweat, moisture, and debris.
Features
- Patent-pending locking XLR connector for secure, wobble-free connection
- OLED display with easy-to-navigate menu and controls
- Rugged metal construction that is resistant to dust and moisture
- Automatic input staging optimizes gain setting
- AES 256-bit encryption-enabled for secure transmission
- 300 feet (100 meter) line-of-sight operating range
- Selectable modulation modes optimize performance for spectral efficiency
- Standard – Optimal coverage, low latency
- High density – Dramatic increase in max system channel count
- Switchable power levels (2/10/35 mW, region dependent)
- AA battery (included) or Shure SB900B rechargeable battery (sold separately) options
- Optional Shure SB900B lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect
- External power and charging option over USB-C port
- Switchable phantom power (off, +12V, +48V)
- Included: 2 x AA alkaline batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage
Specification
| Wireless Technology | Digital UHF |
| RF Frequency Band | 417 to 616 MHz |
| RF Bandwidth | 166 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m (Line of Sight) |
| Latency | 2 to 2.9 ms (Selectable) |
| Encryption | AES 256 |
| Modulation | Proprietary |
| Transmitter Type | Plug-On |
| RF Output Power | 2 / 10 / 35 mW |
| Audio I/O | 1 x XLR 3-Pin Female Balanced Input (Lockable) |
| Phantom Power | +48 V |
| Pad | None |
| Auto-Level Control | Yes |
| Gain Range | -12 to +21 dB (3 dB Steps) |
| Signal Processing | None |
| Frequency Response | 20 Hz to 20 kHz |
| Sync Method | IR |
| Antenna | 1 x Internal Single-Band Helical (Handheld) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable) |
| Approx. Battery Life | Med.: 8 Hours (Alkaline) Med.: 8 Hours (Lithium Shure SB900A) |
| USB/Lightning Connectivity | 1 x USB-C (Charging) |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Group, Signal Strength) |
| Housing | Aluminum |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
