Planar LX46HDU-L-100 46"Clarity Matrix G2 1920x1080 500 nit landscape - 997-9334-00
Planar LX46HDU-L-100 46"Clarity Matrix G2 1920x1080 500 nit landscape - 997-9334-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX46HDU-L-100 46"Clarity Matrix G2 1920x1080 500 nit la...
Product Overview

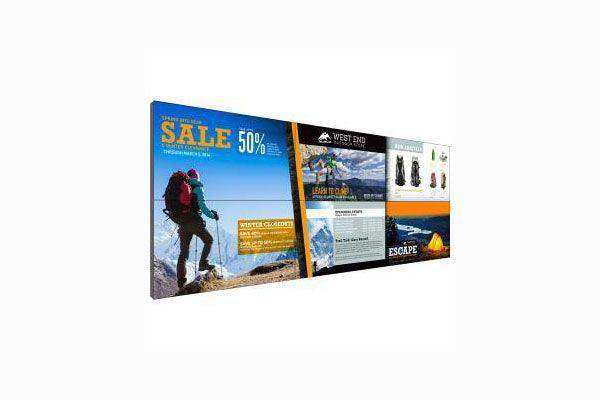

The Planar Clarity Matrix G2 LX46HDU-L-100 (997-9334-00) is a 46-inch Full HD LCD video wall panel in landscape orientation configured for multi-user, multi-touch interactive applications. This SKU includes ERO (Extended Ruggedness and Optics) optically-bonded glass and supports up to 32 simultaneous touch points across the video wall surface, making it the designated interactive variant of the LX46HDU-L-100 product line. Rated for 24/7 operation.
Product Description
SKU 997-9334-00 is the Clarity Matrix MultiTouch variant of the LX46HDU-L-100 landscape panel. It incorporates Planar ERO technology — an optically-bonded glass front that serves as both a rugged protective surface and a modular touch interface substrate. A touch sensor frame at the edge of each panel enables up to 32 simultaneous touch points across a tiled video wall, with pinpoint accuracy and false-touch rejection. Unlike competing systems that require a single large glass pane across the entire video wall (difficult to transport, install, and service), the modular ERO design allows each panel to be individually serviced without disturbing the touch surface of adjacent panels. The EasyAxis mounting system provides the ultra-slim profile and panel-to-panel alignment precision required for a continuous, gapless touch surface. Standard configurations include 2x2 and 3x3 arrays; custom configurations up to 350-inch diagonal are available as special orders. Both 6-point and 32-point touch options are available.
Key Features
- 46-inch Full HD (1920 x 1080) landscape LCD video wall panel with multi-touch
- 500 nits brightness, LED backlight
- ERO (Extended Ruggedness and Optics) optically-bonded glass — included
- Up to 32 simultaneous touch points across the video wall
- Modular touch surface — individual panels serviceable without wall disassembly
- Pinpoint touch accuracy; false-touch rejection
- EasyAxis ultra-slim mounting: 3.6-inch installed depth
- Off-board electronics design for 24/7 reliability
- Planar Big Picture Plus: 4K input processing at 60Hz
- Standard 2x2 and 3x3 configurations; custom up to 350" diagonal
- Available in 6-point or 32-point touch configurations
- Enhanced ambient light rejection and contrast via ERO glass
Typical Applications
- Multi-user collaboration walls in corporate boardrooms and war rooms
- Interactive museum exhibits and visitor experience centers
- Retail product configuration and interactive merchandising walls
- Education — large-format interactive classroom displays
- Command and control centers with touch-driven interface requirements
- Public information kiosks requiring a rugged, vandal-resistant touch surface
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | LX46HDU-L-100 / 997-9334-00 |
| Generation | Clarity Matrix G2 (MultiTouch variant) |
| Screen Size | 46 in. diagonal |
| Orientation | Landscape |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nits |
| Touch Points | Up to 32 simultaneous (6-point option available) |
| Touch Technology | ERO modular optical touch frame |
| Protective Glass | ERO optically-bonded (included) |
| Installed Depth | 3.6 in. (91mm) with EasyAxis |
| Off-board Electronics | Yes |
| Max Video Wall Diagonal | 350" (custom order) |
| Standard Configurations | 2x2, 3x3 |
| Input Voltage | 120V AC / 230V AC |
| USB | Yes |
| HDMI Inputs | 4 |
| Recommended Usage | 24/7 |
| Certifications | RoHS compliant |
Competitor Comparison
| Feature | Planar LX46HDU-L-100 (997-9334-00) | Samsung IA046B Touch | LG LSCB012 Touch | NEC UN462A Touch |
|---|---|---|---|---|
| Touch Points | Up to 32 simultaneous | Up to 10 | Up to 10 | Not available |
| Touch Surface | Modular ERO (per-panel) | Single overlay glass | Single overlay glass | N/A |
| Protective Glass | Optically bonded (ERO) | Optional | Optional | N/A |
| Brightness | 500 nits | 500 nits | 500 nits | 500 nits |
| Off-board Electronics | Yes | No | No | No |
| 24/7 Rated | Yes | Yes | Yes | Yes |
| Max Wall Size | 350" diagonal | Standard configs only | Standard configs only | Standard configs only |
Frequently Asked Questions
- How does SKU 997-9334-00 differ from 997-9344-00?
- 997-9334-00 is the multi-touch ERO variant, specifically configured for interactive video wall deployments with up to 32 simultaneous touch points and optically-bonded protective glass. SKU 997-9344-00 is the standard (non-touch) landscape panel without ERO glass.
- Can multiple users interact simultaneously without conflicts?
- Yes. The 32-point touch system is designed for multi-user interaction. Each user's touch inputs are tracked independently, so gestures by one person do not interfere with another user's interaction elsewhere on the wall.
- How is the modular ERO surface serviced compared to a single-pane touch overlay?
- With a single large glass overlay, servicing any panel requires removing the entire glass pane — a difficult and risky operation on large video walls. ERO is modular: each panel's glass and touch frame can be removed and replaced individually without disturbing adjacent panels.
- What is the maximum video wall size?
- Standard configurations are 2x2 and 3x3 arrays. Custom configurations up to 350-inch diagonal are available as special orders through Planar's professional services team. Both touch point counts (6 or 32) are available in all configurations.
- Is calibration included in the installation?
- Yes. Touch calibration is performed during installation as part of the standard commissioning process for Clarity Matrix MultiTouch systems.
