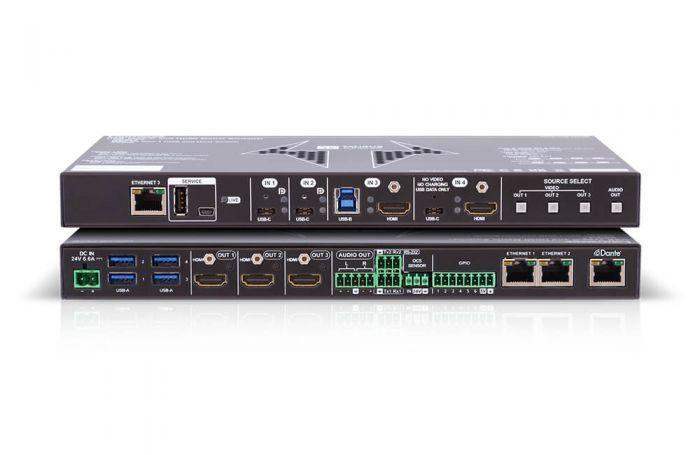

Universal Matrix Switcher with USB-C Connectivity and Dante USB Audio Bridge
Universal matrix switcher that exploits the USB-C connectivity for a simplified transmission of 4K video, audio, control signals and power providing meeting participants with easy host switching, utilizing data speeds of up to 5 Gbps under the USB 3.1 Gen1 providing video resolution capabilities up to 4K@60Hz at 4:4:4 as well as comprehensive and secure Ethernet features.
Features
- HDMI Stereo embedded Audio can be de-embedded and converted to 2 channel Dante/AES67 streams
- Multiple USB 3.1 Gen 1 connectivity for any type of USB devices (Camera, speakerphone, touch monitor, USB-HID devices etc…)
- USB-C input connectivity for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
- CEC at the HDMI outputs
- Passive, noiseless cooling
- USB-C charging up to 100W (120W total)
- Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-4x3-HC40-BD-LCC, SKU: 91360030)
- Separate USB 3.1 Host switching layer for multiple USB hosts and USB devices
- Dedicated secure corporate and room utility Ethernet connectivity
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
Specs
| Video | ||
| Resolution | Up to UHD/4k@60Hz 4:4:4 | |
| Signal Type | DP Alt Mode, HDMI 2.0, HDMI 1.x, DVI | |
| Maximum data rate | 18 Gbps | |
| Maximum pixel clock | 600 MHz | |
| Content protections | HDCP 1.x, HDCP 2.2 | |
| Connector type (IN) | 2x HDMI receptacle type A with screw locking option | |
| 2x USB-C receptacle with screw locking option | ||
| Connector type (OUT) | 3x HDMI receptacle type A with screw locking option | |
| Video processing | Signal parameter measurement | |
| Audio | ||
| Audio mode | Simultaneous pass-through and de-embedding to the Audio layer | |
| Supported audio formats for pass-through | All HDMI2.0 audio formats | |
| Supported audio formats for de-embedding | Uncompressed | HDMI Stereo embedded Audio can be de-embedded and converted to 2 channel Dante/AES67 streams |
| Control | ||
| Ethernet | Control | 1x 100Base-T via RJ-45 for Secure Control |
| User Data | 2x 100Base-T via RJ-45 for Configurable Ethernet | |
| RS232 | Connector | 2x 3Pol Phoenix |
| Symbol rate | between 9600 and 115200 baud | |
| Configuration | Parity: none, odd or even | |
| Stopbits: 1 or 2 | ||
| USB | Connectors | 2x USB Type C with charging function up to 100W (120W total), Optional Ethernet access |
| 1x mini USB Type B (reserved for service) | ||
| 1x USB Type A (reserved for future developments) | ||
| 1x USB Type B for Host PC | ||
| 1x USB Type C for Host PC | ||
| 4x USB Type A for peripherals | ||
| Room Occupancy Sensor | Connector | 3Pol Phoenix |
| GPIO | Connector | 8Pol Phoenix |
| General | ||
| Powering | External 160W power supply | |
| Dimensions | Width | 246 mm |
| Height | 26 mm | |
| Depth | 150 mm | |
| Operating conditions | Ambient temperature | 0-50oC |
| Relative humidity | 0-90% (non-condensing) | |
| Transportation conditions | Ambient temperature | -20-70oC |
| Relative humidity | 0-95% (non-condensing) | |
| Complience | EN 55032:2015 | |
| IEC 61000-3-3:2013+AMD1:2017 | ||
| FCC CFR Title 47, Part 15, Subpart B | ||
| Warranty | 3 years | |
