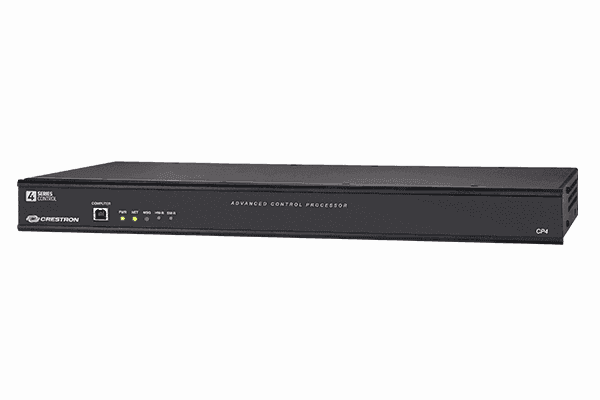

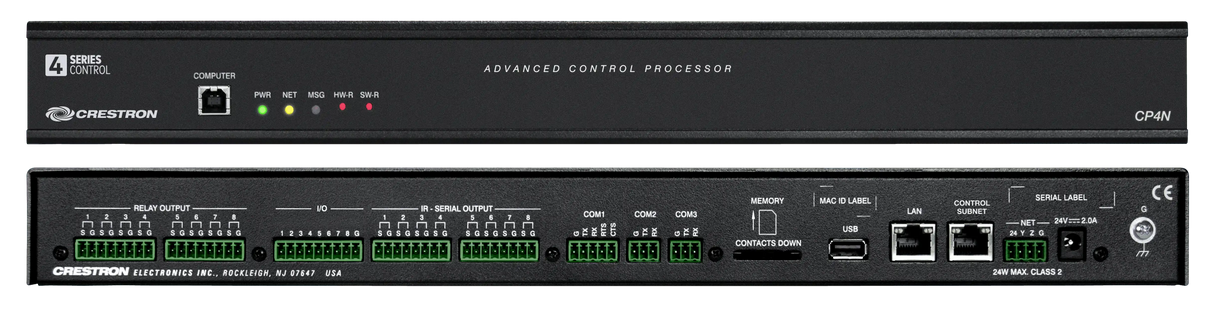

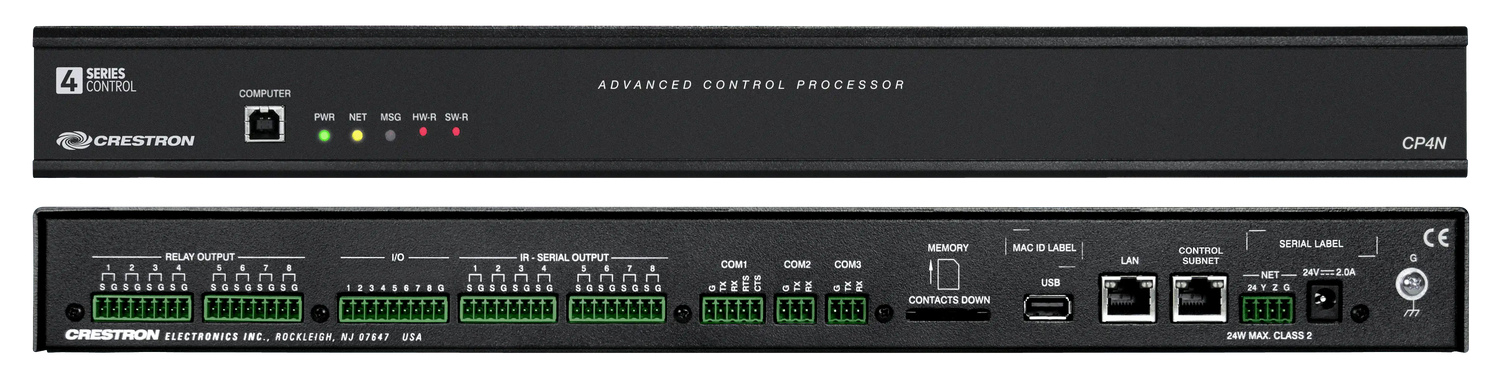

Crestron 4-Series Control System - CP4N

CrestronSKU: CP4N
No reviews

Price:
Sale price$3,080.00

Description

pec Sheet

The CP4N is a secure, high‑performance control processor with a powerful 4-Series™ control engine. The CP4N is designed to integrate and automate technology within any modern networked home, commercial building, or government facility. An isolated control subnet port provides a Gigabit Ethernet LAN dedicated to Crestron devices.

4-Series Control Engine
4-Series control systems come equipped with an upgraded multicore CPU, delivering a sizable speed and performance increase compared to all Crestron 3‑Series® control processors. The improved performance allows 4-Series control systems to handle the increasing demands of an advanced automated system. Crestron 4-Series delivers a dynamic and secure control system platform capable of managing a room full of disparate technologies.

Reliable networking and IP control afford seamless integration with other systems and devices, with add-on control capability using Crestron touch screens, wireless remotes, and mobile device apps, as well as remote management through Crestron Fusion® software and the XiO Cloud® service.

Modular Programming Architecture
The CP4N provides a modular programming architecture that allows the CP4N to run up to ten programs simultaneously. Programmers can develop and run independent, device‑specific programs, enabling each program to be optimized for a specific function and allowing for changes to be made to one program without affecting the whole system.

Dedicated Control Subnet
The Crestron Control Subnet is a Gigabit Ethernet network dedicated to Crestron devices. Via the Control Subnet port, an installer can connect a single touch screen or wireless gateway or can add a Crestron PoE switch (CEN‑SW‑POE‑5 or CEN‑SWPOE‑16, both sold separately) to handle multiple touch screens, gateways, AV components, and other devices. Auto-configuration of the entire subnet is performed by the CP4N, discovering each device and assigning IP addresses without any extra effort from the installer.

NOTE: The Control Subnet port does not supply any PoE power to connected devices

A separate LAN port provides a single-point connection to the local network, requiring only one IP address for the entire control system. The LAN port allows for interconnectivity between devices on the local subnet and other devices, systems, servers, and WAN/internet connections outside the local subnet. For sensitive applications that require heightened security, the entire Control Subnet can be isolated completely from the local network.

Onboard Control Ports
Through a full complement of onboard control ports, the CP4N can be integrated with a wide variety of audio, video, lighting, motorized shades, thermostats, door locks, sensors, security systems, and other equipment.

  • Gigabit Ethernet provides an interface for connecting to the building network and controlling Crestron AV switchers, audio processors, power controllers, and other IP controllable equipment.
  • Cresnet® network connectivity provides support for Crestron lighting dimmers, motorized shades, sensors, thermostats, keypads, and more.
  • Onboard RS‑232, IR/serial, relay, and Versiport I/O control ports enable direct integration with all types of third‑party equipment.

Crestron Fusion Room Monitoring and Scheduling
Crestron Fusion provides an integrated platform for creating smart buildings that save energy and enhance worker productivity. As part of a complete managed network in a corporate enterprise, college campus, convention center, or any other facility, the CP4N works with Crestron Fusion to enable remote scheduling, monitoring, and control of rooms and technology from a central help desk or mobile app. It also enables organizations to reduce energy consumption by tracking real-time usage and automating control of AV, lighting, shades, and HVAC. For more information about Crestron Fusion, visit www.crestron.com/fusion.

XiO Cloud Provisioning and Management
4-Series control systems leverage the power and flexibility of XiO Cloud services, enabling users to remotely provision, monitor, and manage Crestron devices across an enterprise network. XiO Cloud can be used to configure and load programs to the control system before it is received, making the control system fully functional as soon as it is connected to the network. XiO Cloud is built on the Microsoft® Azure® software platform and utilizes Microsoft's industry leading Azure IoT Hub technology. XiO Cloud enables installers and IT managers to deploy and manage thousands of devices in the time it previously took to manage just one. Unlike other virtual machine based cloud solutions, Azure services provide unlimited scalability to suit the ever growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.

Enhanced Enterprise-Grade Security
The CP4N is an enterprise‑class control processor that can be deployed across hundreds of spaces and set up easily using a web browser, Crestron Toolbox™ software, or XiO Cloud. It employs standard network security protocols, including 802.1X network access control, Active Directory® service authentication, SSH, TLS, and HTTPS to ensure reliability and compliance with your organization’s IT policies.

The CP4N is configured to meet Crestron's enhanced security standards right out of the box. The CP4N ships with authentication enabled and requires that an administrator account be created before access is granted to device configuration and control interfaces.

SNMP V3 Support
Built-in SNMP V3 support enables integration with third-party IT management software, allowing network administrators to manage and control Crestron systems on the network in an IT-friendly format.

BACnet Support
Native support for the BACnet communication protocol provides a direct interface to third-party building management systems over Ethernet, simplifying integration with HVAC, security, and other systems. Using BACnet, each system runs independently but communicates together on one platform.1

Apple HomeKit Integration
The CP4N supports integration with an Apple® HomeKit® technology system. Once the CP4N is paired with a HomeKit system via SIMPL programming, a Crestron TSR-310 can be used to control supported Apple devices. A pairing QR code is affixed to the CP4N that makes it easy to pair the control system directly to the Apple Home app.2


  • 4‑Series™ control system with 2 GB SDRAM and 8 GB flash memory
  • Embedded 4‑Series multicore CPU processor
  • iPhone®, iPad®, and Android™ device control app support
  • XPanel computer and web based control
  • Modular programming architecture
  • Onboard IR/serial, COM, I/O, relay, Cresnet® network, and high‑speed gigabit Ethernet control ports
  • Control subnet port providing a dedicated local network for Crestron® devices
  • High-speed USB 2.0 host port and rear panel memory card slot
  • Crestron Fusion® software room monitoring and scheduling support
  • XiO Cloud® service provisioning and management support
  • Enterprise‑class network security and authentication
  • SNMP V3 remote IT management support
  • Native BACnet network/IP support
  • Installer setup via software, web browser, or cloud
  • IPv6 ready
  • Integrates with Apple® HomeKit® technology
  • Rack mountable


Software & Firmware

Software : Crestron Control for Zoom Rooms™ Software 1.0.0 The Crestron Control for Zoom Rooms™ Software program allows for custom buttons to be added to the Zoom Rooms controller application using SIMPL programming.


Software : Cisco Room Devices Sample Program 6.0.3 The “Crestron-Cisco Room Devices” Example program is a ready to go program used to test and implement control of a Cisco RoomOS Device using SIMPL Windows and Crestron Control Systems.



Control Engine
Crestron® 4-Series; real-time, preemptive multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs
Communications
Ethernet 100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet and IP1, IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, SMTP email client
Control Subnet 100/1000 Mbps Ethernet, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP server, DNS server, port forwarding, isolation mode
Cresnet® Network Cresnet primary mode
USB Supports USB mass storage class devices via the rear panel USB 2.0 host port, supports computer console via the front panel USB 2.0 device port
RS-232/422/485 For 2-way device control and monitoring, COM port supports RS‑232 up to 115.2k baud with software handshaking, one port also supports RS‑422 or RS‑485 and hardware handshaking
IR/Serial Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0–5V) up to 115.2k baud
Memory
SDRAM 2 GB
Flash 8 GB
Memory Card Supports SD and SDHC cards up to 32 GB
External Storage Supports USB mass storage devices up to 1 TB

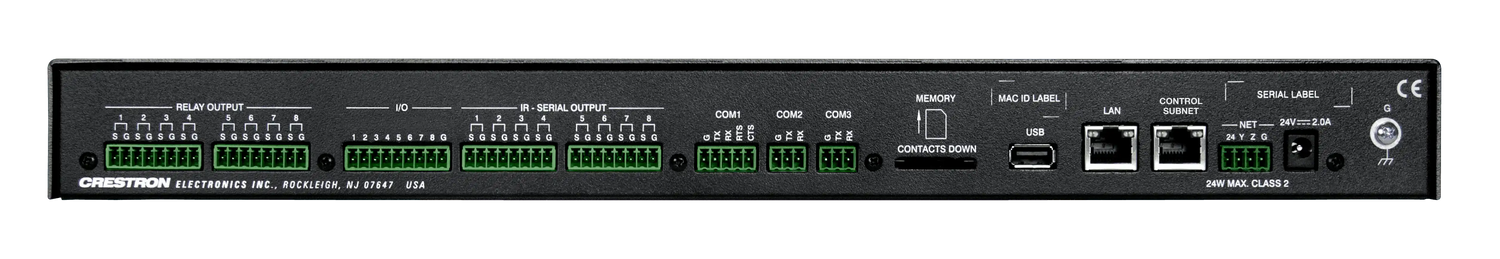

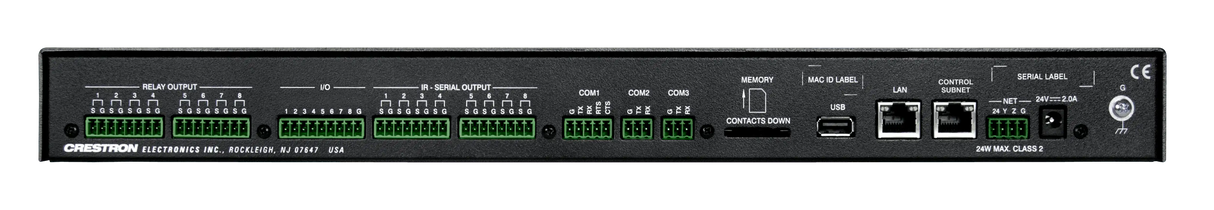

Connectors and Card Slots
RELAY OUTPUT 1–8 (2) 8-pin 3.5 mm detachable terminal blocks;
Comprises (8) normally open, isolated relays;
Rated 1A, 30VAC/VDC;
MOV arc suppression across contacts
I/O 1–8 (1) 9-pin 3.5 mm detachable terminal block;
Comprises (8) Versiport digital input/output or analog input ports (referenced to GND);
Digital Input: Rated for 0–24VDC, input impedance 20k Ω, logic threshold >3.125V low/0 and <1.875V high/1;
Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads;
Analog Input: Rated for 0–10VDC, protected to 24VDC maximum, input impedance 21k Ω with pull-up resistor disabled;
Programmable 5V, 2k Ω pull-up resistor per pin
IR - SERIAL OUTPUT 1–8 (2) 8-pin 3.5 mm detachable terminal blocks;
Comprises (8) IR output ports;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0–5V) up to 115.2k baud
IRP2 IR emitters sold separately
COM 1 (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232/422/485 port;
Up to 115.2k baud; hardware and software handshaking support
COM 2–3 (2) 3-pin 3.5 mm detachable terminal blocks;
Bidirectional RS-232 ports;
Up to 115.2k baud; software handshaking support
MEMORY (1) SD memory card slot;
Accepts one SD or SDHC card up to 32 GB for storage of log files
USB (1) USB Type A connector, female;
USB 2.0 port for storage devices
LAN (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port
CONTROL SUBNET (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Provides a dedicated local network for Crestron devices
NET (1) 4-pin 3.5 mm detachable terminal block;
Cresnet primary port;
Outputs power to Cresnet devices only if the included power pack is connected to the 24VDC power input jack;
Alternately functions as a Cresnet power input to power the unit from a Cresnet power supply;
See "Power" section for additional specifications
24VDC 2.0A (1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW-2420RU power pack included;
Passes through to the NET port to power Cresnet devices;
See "Power" section for additional specifications
G (1) 6-32 screw;
Chassis ground lug
COMPUTER (front) (1) USB Type B connector, female;
USB 2.0 computer console port;
For setup only

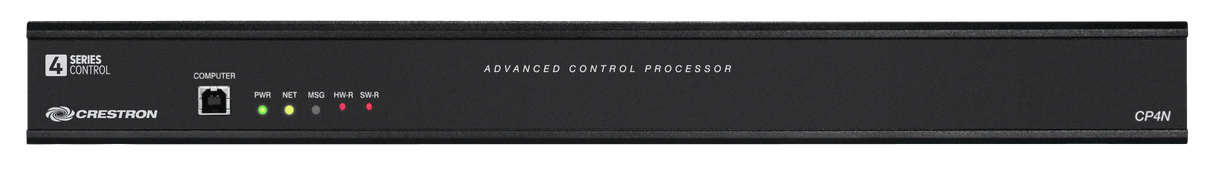

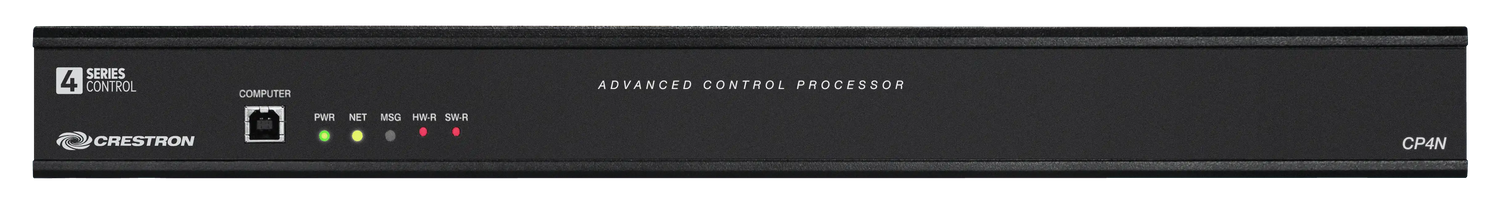

Controls and Indicators
PWR (1) Green LED, indicates operating power is supplied from the power pack or Cresnet power supply
NET (1) Amber LED, indicates communication with Cresnet devices
MSG (1) Red LED, indicates control processor has generated an error message
HW-R (1) Recessed push button for hardware reset
SW-R (1) Recessed push button for software reset
LAN (rear) (1) Bicolor green/amber and (1) Amber LEDs;
Green/amber LED indicates Ethernet link status and connection speed;
Amber LED indicates Ethernet activity
CONTROL SUBNET (rear) (1) Bicolor green/amber and (1) Amber LEDs;
Green/amber LED indicates Ethernet link status and connection speed;
Amber LED indicates Ethernet activity
Power
Power Source Options Power pack or Cresnet (connect only one)
Power Pack (included) Input: 100–240VAC, 50/60 Hz;
Output: 2.5A @ 24VDC;
Model: PW-2420RU
Cresnet Power Usage 15 W (0.625A @ 24VDC) when powered by a Cresnet power supply only
Available Cresnet Power 24 W (1A @ 24VDC) when powered by the included power pack only
Power Consumption 15 W (not including any connected Cresnet devices)
Environmental
Temperature 41 to 113°F (5 to 45°C)
Humidity 10% to 90% RH (noncondensing)
Heat Dissipation 50 BTU/hr
Enclosure
Chassis Metal, aluminum, black finish
Faceplate Extruded metal, black finish, polycarbonate label overlay
Mounting Freestanding or 1 RU 19-in. rack-mountable (adhesive feet and rack ears included)
Dimensions
Height 1.70 in. (44 mm) without feet
Width 17.28 in. (439 mm);
19.00 in. (483 mm) with rack ears
Depth 6.56 in. (167 mm)
Weight
3.12 lb (1.42 kg)
Compliance
Regulatory Model: M201903003;
UL® Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device
