Cambridge Qt 100 Sound Masking Control Module
The Qt 100 is ideal for single zone spaces of up to 1,000 square feet. The Qt 100 is easily controlled from the module’s front panel, making volume adjustments quick and easy.
Qt emitters are installed along a simple grid pattern based on ceiling height. Qt emitters can be installed into standard ceiling tiles ranging from 0.5" to 1.5" (1.3 cm - 3.8 cm) thick. Qt emitters can also be installed into any ceiling type using a variety of mounting options. Emitters are plug-and-play, daisy-chained together with CAT-3 and higher, plenum-rated cables. We supply with every emitter, pre-terminated CAT3 cables with industry standard RJ-45 connectors.
The Qt 100 comes standard with a wall mount. The wall mount provides level mounting for quick and easy installation.

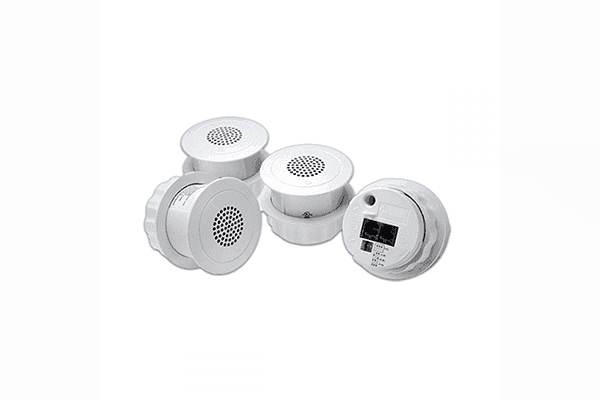

Cambridge 8 QT Sound Masking Emitters
Qt emitters are the backbone of the Qt Quiet Technology Sound Masking System. Qt emitters are wide dispersion direct field speakers with 1.25” (3.17 cm) drivers and are smaller than a coffee mug. All Qt emitters come in the adjustable format. These emitters deliver four uncorrelated audio channels, which provide uniform, unobtrusive sound masking. This feature, along with plug and play installation and easy configuration capability, make Qt™ systems the most intelligently engineered and most effective sound masking systems on the market today.

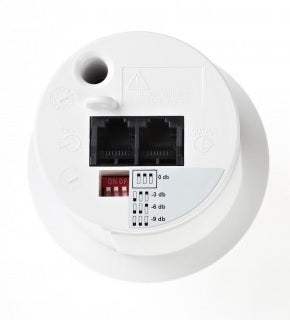

Qt™ Adjustable Emitters offer users greater flexibility in laying out their Qt system. Adjustable emitters allow users to reduce the volume level of an individual emitter by up to 9 dB in 3 dB decrements. The adjustable emitter is appropriate for individual spot adjustments, or creating micro zones down to 100 square feet (9.3 m2) of space.
Qt emitters are installed along a simple grid pattern based on ceiling height. For a standard 9’ (2.75 m) ceiling, emitters are laid out on a 10’ x 10’ (3 m x 3m) grid. Emitters can be installed into standard ceiling tiles ranging from 0.5” to 1.5” (1.3 cm – 3.8 cm) thick. Emitters are plug-and-play, daisy-chained together with CAT-3, plenum-rated cables. We supply with every emitter, pre-terminated CAT3 cables with industry standard RJ-45 connectors.
Equipment list
- 1 x QT 100 Sound Masking Control Processor
- (2) 4-packs of Sound Masking Emitters, 8 total emitters
- Initial-run 50ft Plenum-rated Cat5 Cable
- (8) 16ft UTP RJ45 Cables
- Mounts, hardware, and hole saw used for installation
