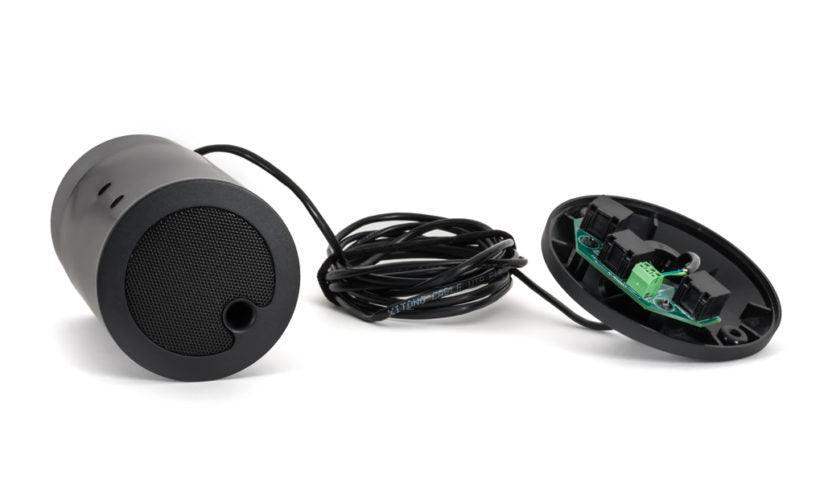

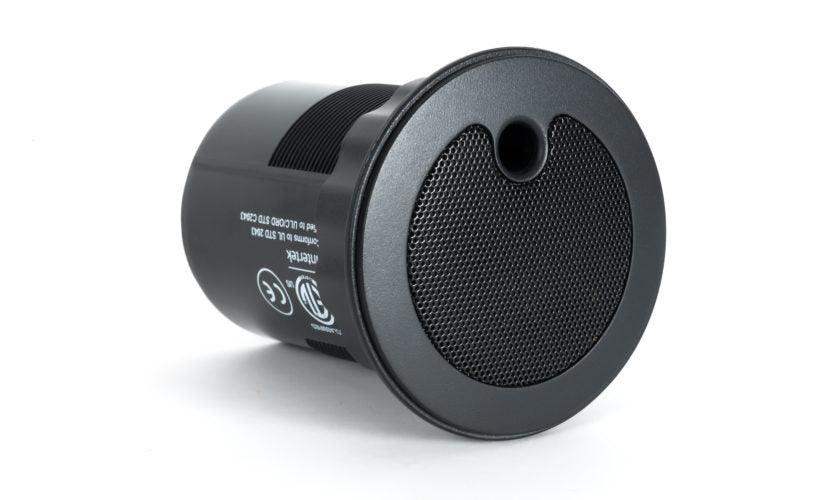

Cambridge Sound DS1320-B-4 Dynasound Active Emitter, 4 Pack, Cables not included (Black) - 911.0806.900

Sound Masking | Paging | Music

Small and Powerful

The Cambridge Sound DYNASOUND DS1320-B-4 Qt Active Emitter is a versatile and powerful device that can be used for sound masking, paging, and music. It is compact, easy to install, and produces high-quality sound in both open and finished ceilings.

Features

• Active electronics power the speaker
• Ported enclosure design allows lower frequency extension down to 125 Hz octave band for sound masking and 115 Hz for paging and music
• 17 dB louder than previous direct field emitter offerings
• Plenum-rated, UL-listed, and complies with UL 2043
• Delivers four uncorrelated audio channels to reduce phasing/comb-filtering

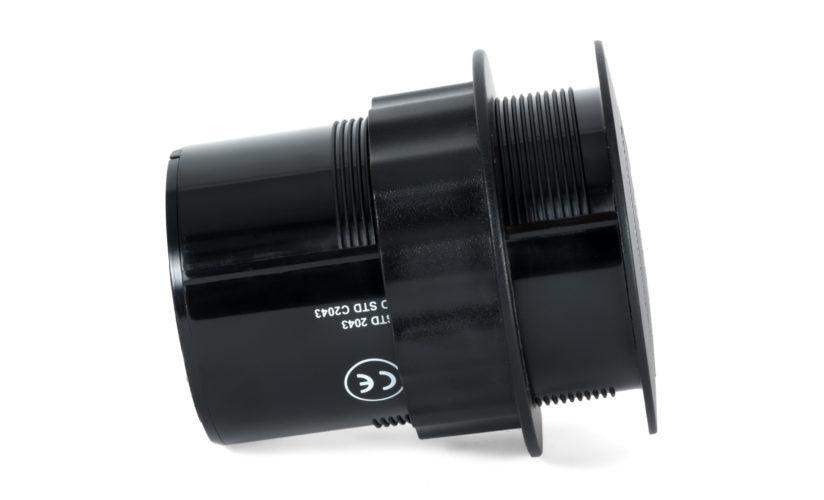

• Comes standard with a slip-ring mount for acoustical tile mounting
• Rear DIP switches reduce volume by 4.5 dB in 1.5 dB increments, if needed
• Compatible with the Qt 300 and Qt 600 control modules
• Control via web-based management from any device
• Compatible with DynasoundPro Network System (Specify DS1320)

Benefits

• Delivers superior uniformity which leads to a more comfortable sound masking experience and clear, quality office paging and background music
• Small but powerful speaker that’s virtually invisible once deployed in finished or open structure ceilings
• Utilizes the same control modules, cabling infrastructure, and speaker driver size as other Cambridge Sound Management systems, ensuring QtPro remains the easiest sound masking system to install and calibrate
• Provides new opportunities for sound masking system customization and optimization
• Features an extended sound masking spectrum for additional comfort
• Ability to use both the Qt® Active Emitter and original Qt Emitter on the same control processor simultaneously, if needed (requires separate zones)
• Feel confident knowing the Qt® Active Emitter has the same uniformity, zoning and direct-field sound masking as our other high quality QtPro™  solutions trusted by more than 30,000 customers in over 30 countries
• Direct-field is an efficient, effective, and a more affordable approach to sound masking, paging, and music reproduction

Key Facts

• 125 Hz frequency response for sound masking
• 115 Hz frequency response for music playback and paging
• 74 dB SPL at 1 meter distance
• Requires 600 Watt 3-zone power supply and power injector accessories to power the Qt® Active Emitter
• 5 Year Warranty
