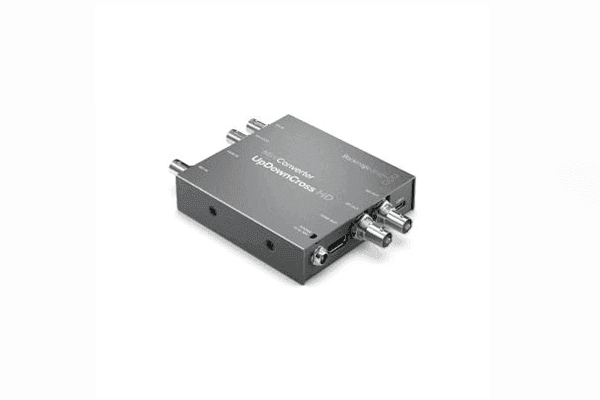

Blackmagic Design Mini Converter UpDownCross HD - CONVMUDCSTD/HD
Announcing the Blackmagic Mini Converter UpDownCross HD, a new broadcast quality standards converter that lets customers convert any SD or HD video format to any other SD or HD video format via SDI and HDMI input and output connections. In addition, customers also get automatic scaling of computer resolutions to standard broadcast formats.
Blackmagic Mini Converter UpDownCross HD is an incredibly affordable high quality standards converter that broadcasters can use to convert video formats from its SDI and HDMI inputs. It’s perfect for converting between existing SD and HD broadcast equipment, as well as for connecting SDI equipment to consumer HDMI devices such as laptop computers and big screen televisions. Blackmagic Mini Converter UpDownCross HD uses low latency, high quality Teranex conversion algorithms for broadcast quality results. Customers can simply set the output format they need and the input format is automatically converted, which also ensures valuable equipment is protected by always sending the correct video output signal.
Connecting HDMI computers to professional SDI equipment is virtually foolproof with the Blackmagic Mini Converter UpDownCross HD. That’s because customers never have to change their computer’s display setting. The converter takes whatever the HDMI output is from the computer and then automatically scales and standards converts it to the correct broadcast standard set by the user.
Features
- 3G/HD/SD-SDI Up/Down/Cross Conversion
- 1 x 3G/HD/SD-SDI Input
- 2 x 3G/HD/SD-SDI Outputs & 1 x Loopout
- 1 x HDMI Input & 1 x HDMI Output
- Support Signals up to 1080p60
- Automatic Input Signal Detection
- Automatic, Multirate Support
- Reference Input & Reclocking
- Control via DIP Switches or Software
- 12V Universal Power Supply Included
Specification
Blackmagic Design CONVMUDCSTD Specs
| Video Input | 3G/HD/SD-SDI: 1 x BNC HDMI: 1 x Type A |
| Video Output | 3G/HD/SD-SDI: 2 x BNC Loop-Through Out: 1 x BNC HDMI: 1 x type A |
| Reference Input | Black Burst & Tri-Level Sync: 1 x BNC |
| Reclocking | Yes |
| SDI Compliance | SMPTE 424M-B/296M/292M/259M ITU-R BT.656/BT.601 |
| SDI Video Sampling | 4:2:2 |
| SDI Color Space | YUV |
| SDI Audio Sampling | 48 kHz, 24-bit |
| Supported Video Standards | SDI: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 24/23.98 1080i 60/59.94/50 720p 60/59.94/50 HDMI: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50 NTSC SD: 525i 59.94 PAL SD: 625i 50 |
| Scaling | DVI Resolutions: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50 625i 50 525i 59.94 1024 x 768 800 x 600 640 x 480 |
| Power Supply | 12 VDC |
| Operation Voltage | 6 to 36 VDC |
| Power Consumption | 5 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Relative Humidity | 0 to 90%, non-condensing |
| Dimensions | 5.32 x 3.63 x 0.9" / 13.5 x 9.2 x 2.3 cm |
| Weight | 8.7 oz / 247 g |
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 5.8 x 5.55 x 2.6" |
