Product Overview

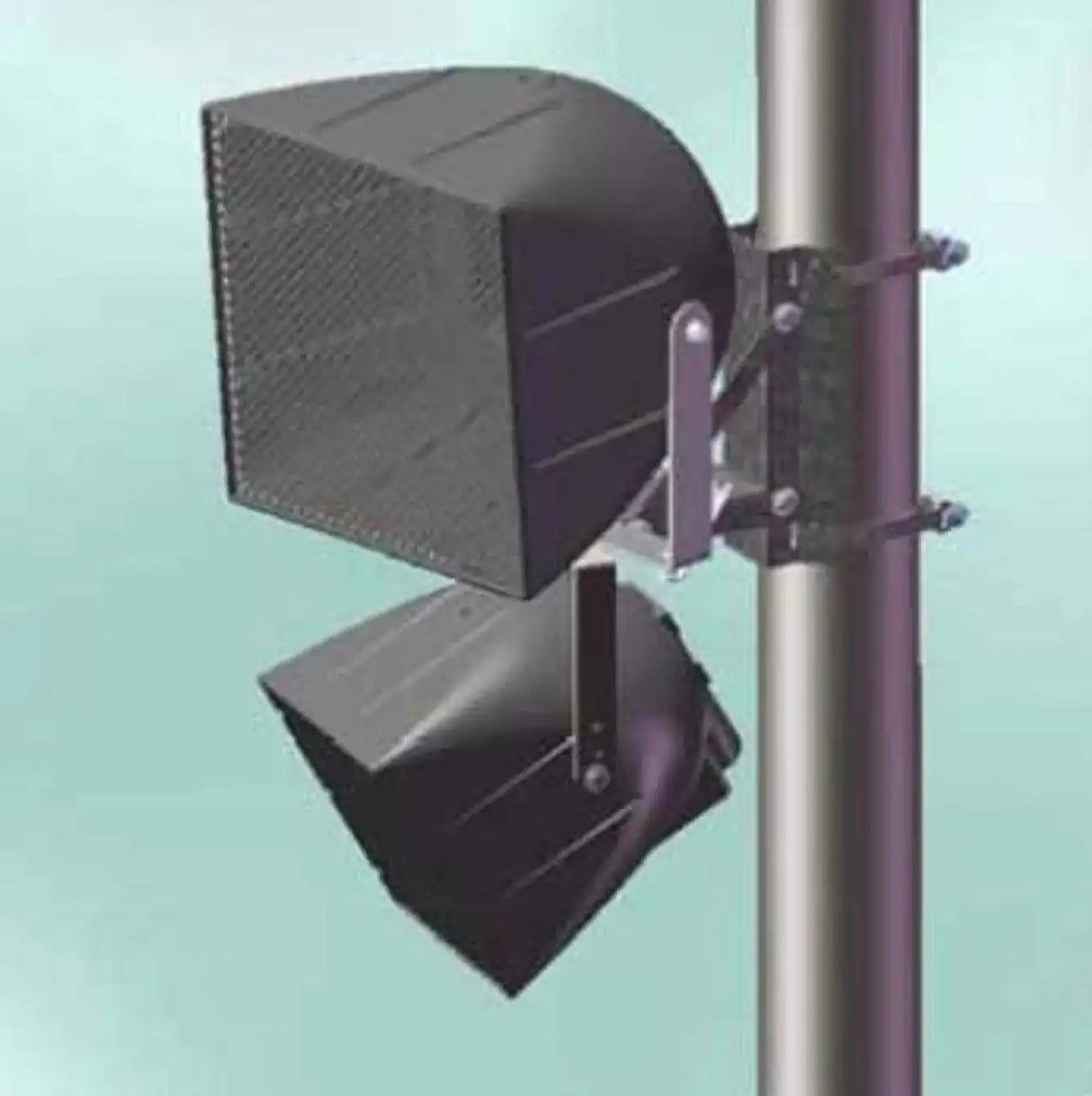

The Biamp Community PMB-2RR is a pole mount bracket for mounting small R-Series and small WET Series loudspeakers to poles and columns. It was designed for use with R.25 and R.5 loudspeakers and can also be used with Community's RMG-200A, W2-218, W2-228, and W2-2W8 loudspeaker models. The PMB-2RR can mount up to two loudspeakers in a top-bottom configuration with left-to-right panning and vertical downtilt.
Product Description
The bolt-together mounting kit attaches to a pole or column 6 inches or greater in diameter using clamps and 3/4-inch stainless steel banding. Clamps and assembly hardware are included, with banding sold separately. For poles between 6 and 10.75 inches in diameter, one PMB-BAND is used per bracket; larger poles require two. The PMB-2RR includes safety cable clips for R.25 and R.5 loudspeakers when an additional PMB-1RR is used above as a safety attachment point. All parts are constructed of weather-resistant stainless steel, aluminum, or hot-dipped galvanized steel, and the bracket is suitable for outdoor use.
Key Features
- Pole mount bracket — The PMB-2RR mounts small R-Series and WET Series loudspeakers to poles and columns.
- Dual loudspeaker mounting — It can mount up to two loudspeakers in a top-bottom configuration.
- Pan and tilt — The bracket provides left-to-right panning and vertical downtilt.
- Banding attachment — It attaches to poles 6 inches or greater using clamps and 3/4-inch stainless steel banding.
- Weather resistant — Parts are stainless steel, aluminum, or hot-dipped galvanized steel and suitable for outdoor use.
- Safety provisions — It includes safety cable clips for R.25 and R.5 loudspeakers.
Technical Specifications
| Function | Pole mount bracket for single/dual loudspeakers, pan-tilt |
| Compatible loudspeakers | R.25, R.5; also RMG-200A, W2-218, W2-228, W2-2W8 |
| Loudspeaker capacity | Up to 2 (top-bottom) |
| Minimum pole diameter | 6 inches |
| Banding | 3/4-inch stainless steel (PMB-BAND, sold separately) |
| Material (bracket and clamp bolt) | Hot-dipped galvanized steel |
| Material (fasteners) | Stainless steel |
| Material (clamp) | Aluminum |
| Working load | 100 lbs |
| Design factor | 10:1 ratio (static vertical load) |
| Outdoor use | Yes |
