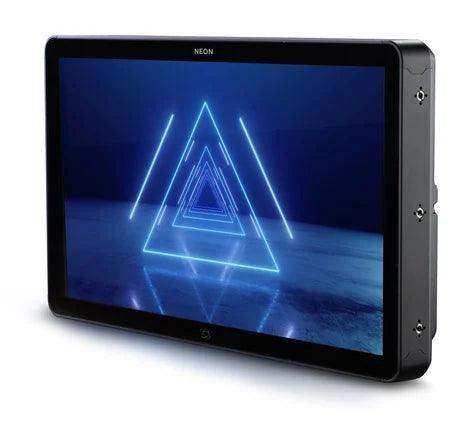

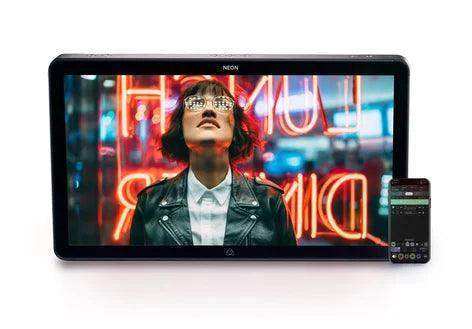

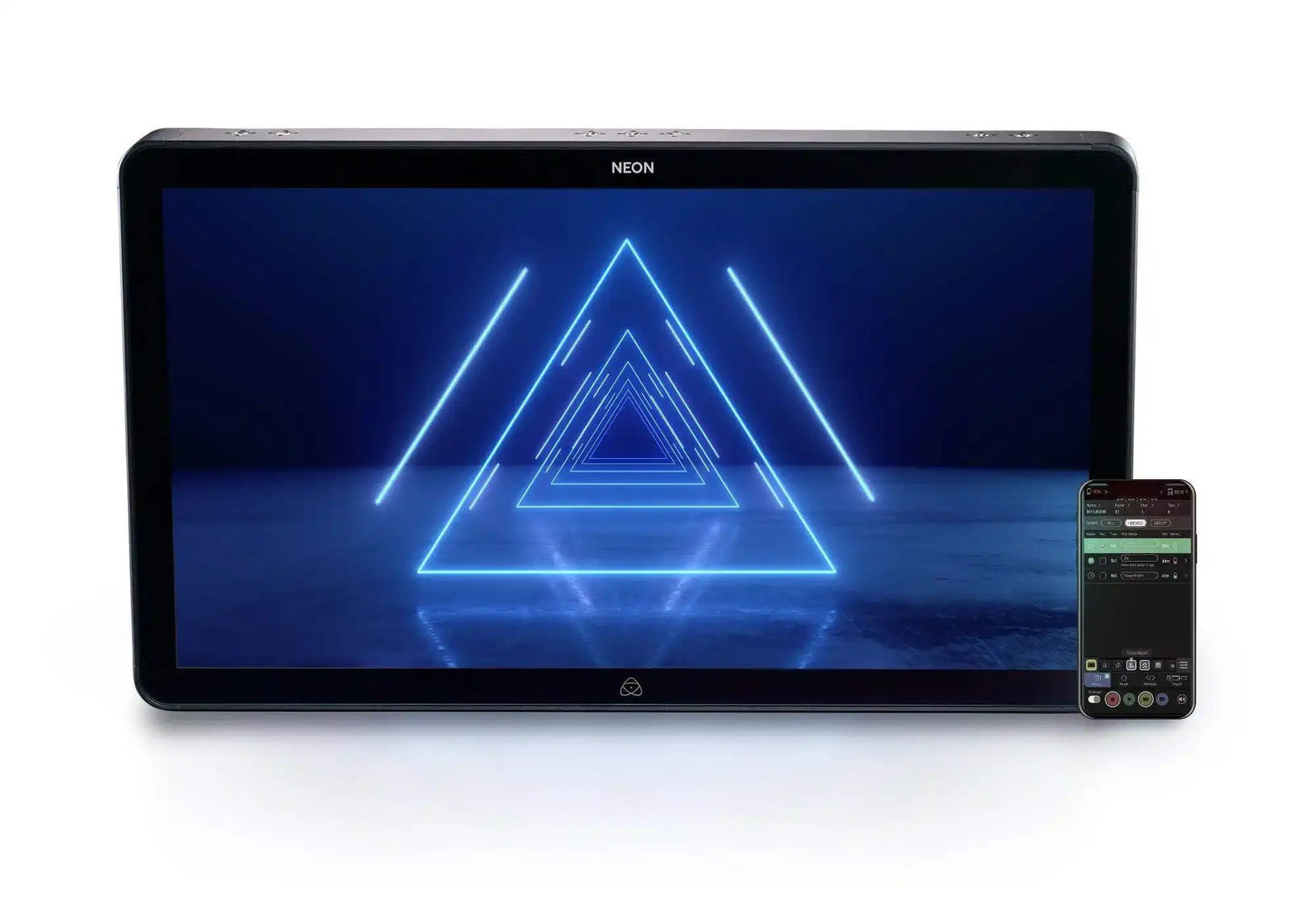

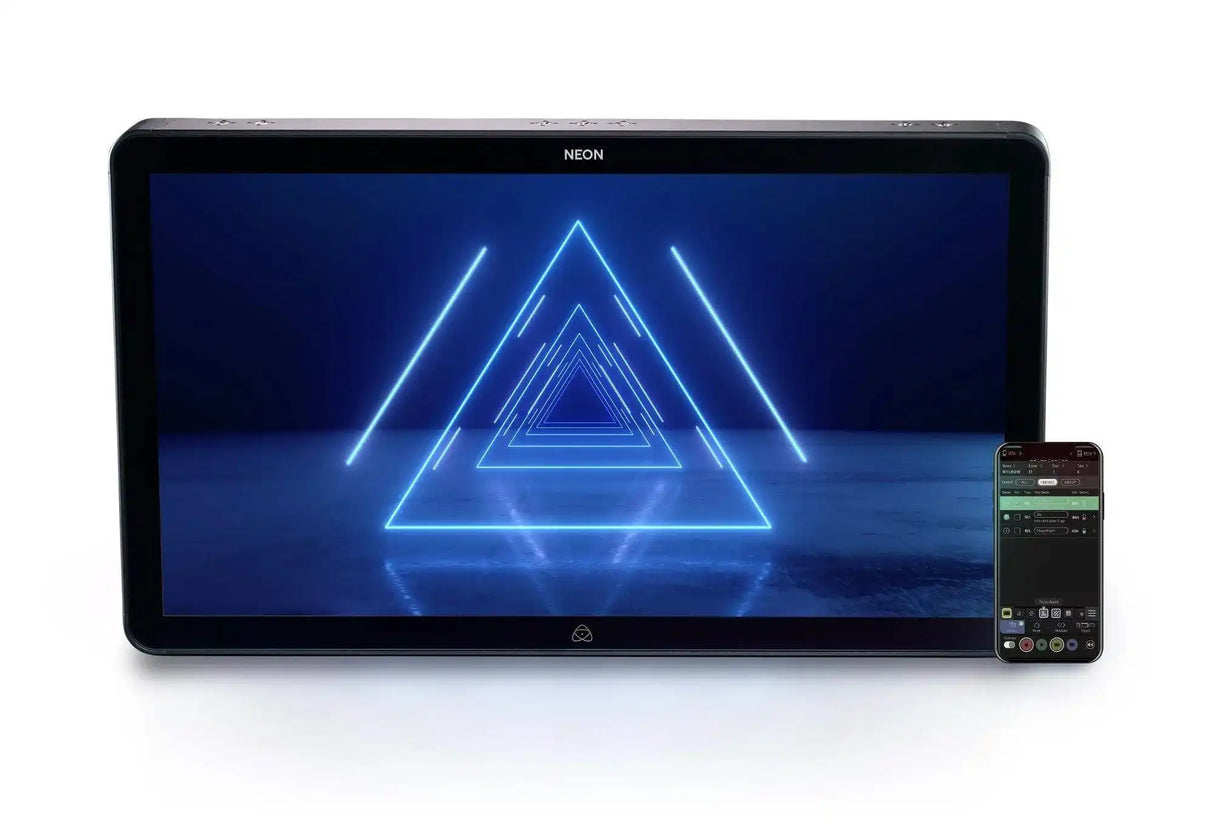

Atomos ATOMNEO171-US NEON 17" – 4K HDR On-Set Monitor-Recorder

Product Overview

The Atomos NEON 17 is a 17-inch 4K HDR monitor-recorder built for on-set and in-studio production environments where a large, accurate reference display is needed without the footprint of a full video village setup. Supporting Apple ProRes RAW and Avid DNx recording via HDMI and SDI inputs, the NEON 17 serves cinematographers, camera operators, and DIT technicians who need a precision field reference monitor and recorder in a single unit. Its DCI-P3 color gamut and HDR monitoring capabilities—covering HLG and PQ formats—deliver the image accuracy needed to evaluate exposure and composition on set with confidence.

Product Description

The Atomos NEON 17 positions a 17-inch 4K HDR reference display at the camera position or on a small DIT cart, bridging the gap between compact on-camera monitors and full-scale video village setups. It accepts HDMI and SDI inputs from the broadest range of professional cameras and renders footage in real time with DCI-P3 color accuracy and HDR tool access. Recording to removable SSD via the Atomos Master Caddy system captures Apple ProRes RAW, ProRes, and Avid DNx files directly from the monitor, eliminating a dedicated external recorder from the equipment chain.

The NEON 17 ships with the complete Atomos professional monitoring toolset accessible from its capacitive touchscreen: waveform, vectorscope, RGB parade, false color, focus peaking, zebra, anamorphic de-squeeze, and custom 3D LUT support via .cube file upload. For productions working with log footage across multiple camera brands, the NEON 17's gamma and gamut support covers Sony S-Log, Canon C-Log, ARRI Log C, Panasonic V-Log, RED Log, Fujifilm F-Log, and Nikon N-Log. Power is supplied via dual V-Lock or Anton Bauer gold-mount battery plates for continuous field operation, or via 4-pin XLR DC for studio and fixed-location setups. Teams looking for a smaller companion monitor for the NEON 17 can find compatible Atomos on-camera monitors at Creation Networks.

Key Features

• 17-Inch 4K HDR Reference Display — DCI-P3 color gamut with HDR monitoring support for HLG and PQ, designed for on-set and studio reference monitoring where a large display is needed without a full video village setup.
• 4K ProRes RAW Recording — Records Apple ProRes RAW, ProRes HQ/422/LT from HDMI and SDI sources to removable SSD for immediate post-production access.
• Avid DNx Codec Support — DNxHD and DNxHR recording for Avid-based post workflows.
• SDI and HDMI Inputs — Covers cinema, broadcast, and mirrorless camera platforms with both SDI and HDMI signal acceptance.
• Full Monitoring Toolset — Waveform, vectorscope, RGB parade, false color, focus peaking, zebra, frame guides, custom 3D LUT (.cube), and anamorphic de-squeeze.
• Broad Log Format Compatibility — Sony S-Log, Canon C-Log, ARRI Log C, Panasonic V-Log, RED Log, Fujifilm F-Log, Nikon N-Log, PQ, and HLG support.
• Dual Battery Power — V-Lock and Anton Bauer gold-mount battery plate support for uninterrupted field operation.
• Capacitive Touchscreen Interface — Fast access to monitoring tools without disrupting the active image feed.
• Calibration Support — Atomos Calibrator compatible with Calibrite Display Pro HL for verified HDR and Rec.709 display accuracy.
• Standard Mounting Points — 1/4"-20 and 3/8" mounting points for integration with monitor arms, carts, and stands.

Typical Applications

• On-set director's reference monitor for mid-scale productions
• DIT cart primary display and recording station
• Camera position large-format reference monitor
• Broadcast and studio monitoring
• Multi-camera production reference display
• Training room and multi-purpose room AV production setups

Technical Specifications

Frequently Asked Questions

What cameras are compatible with the NEON 17?
The NEON 17 accepts any camera with HDMI or SDI output, including cinema cameras from ARRI, RED, Sony, Canon Cinema, mirrorless bodies, and broadcast cameras. Log format support covers S-Log, C-Log, ARRI Log C, V-Log, RED Log, F-Log, and N-Log.

What recording media does the NEON 17 use?
It records to removable SSD drives using the Atomos Master Caddy system for high-capacity, fast-offload storage.

Can the NEON 17 be used as a monitor without recording?
Yes. The NEON 17 functions as a standalone HDR reference monitor with the full monitoring toolset active whether or not recording is engaged.

Does the NEON 17 support custom 3D LUTs?
Yes. Custom .cube format LUTs can be loaded for real-time preview, allowing on-set teams to view a graded look while recording in log format.

What power options are available?
Dual V-Lock or Anton Bauer gold-mount battery plates for field use, plus a 4-pin XLR DC input for studio or video village operation.

Is calibration supported?
Yes. Compatible with Atomos Calibrator app and Calibrite Display Pro HL or Display Plus HL probes for verified display accuracy.

What is the warranty?
1-year standard warranty, extending to 2 years upon registration at my.atomos.com.
