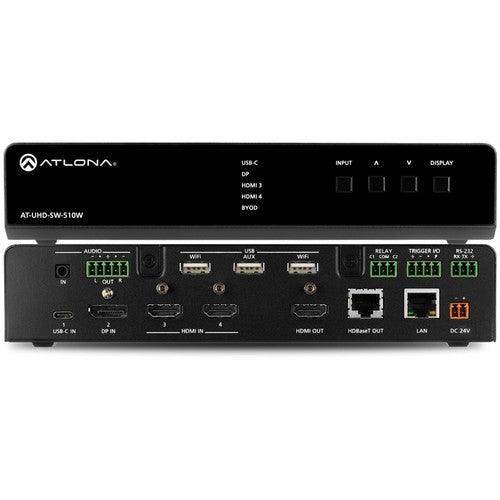

Atlona Five-Input Universal Switcher with Wireless Presentation Link - AT-UHD-SW-510W

Name: Atlona Five-Input Universal Switcher with Wireless Presentation Link - AT-UHD-SW-510W
Brand: Atlona
SKU: AT-UHD-SW-510W
Price: 1399.98 USD
Availability: InStock

$1,399.98

Shipping calculated at checkout.

Atlona | SKU: AT-UHD-SW-510W

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

The 4K/UHD 5-Input Universal Switcher with Wireless Presentation Link from Atlona is a 5x1 multi-format switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, as well as wireless connectivity for mobile devices. This HDCP 2.2 compliant switcher features an HDMI output and a mirrored HDBaseT output that can be used with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections.

Features

Two HDMI, one DisplayPort, one USB-C input, and a dedicated wireless AV input
True BYOD capability
Provides Wi-Fi connectivity for an iOS, Android, Mac, Chromebook, or Windows-based device
Includes dual IEEE 802.11ac Wi-Fi access points - secondary access point required for Miracast (Wi-Fi Direct)
Integrated access point can be segregated from the facility network for security reasons
Allows screen mirroring without the need for a separate app
Supports wireless video up to 1920 x 1080 at 30 Hz (4:2:0) (up to 1920 x 1080 at 60 Hz with Miracast)
Supports Miracast over Infrastructure for use of facility Wi-Fi or Ethernet network
Prevents unauthorized access (room hijacking) or content sharing with user-defined or randomly generated security authentication codes
Ensures presentation content is not received by SW510W units in adjacent rooms
Automatically changes display power state, and switches between inputs based on device connection or disconnection from the switcher
Works for both wired and wireless source devices
Enables effortless, automated system operation without the need for an external control system
USB-C charging for laptops, tablets, and smartphones

Specs

Video

Resolutions	UHD/HD/SD: 4096 x 2160 at 60/30/25/24 Hz, 3840 x 2160 at 60/30/25/24 Hz, 1080p at 60/59.9/50/30/29.97/25/24/23.98 Hz, 1080i at 60/59.94/50 Hz, 720p at 60/59.94/50 Hz, 576p at 50 Hz, 576i at 50 Hz, 480p at 60/59.96 Hz, 480i at 60 Hz VESA: 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1366 x 768, 1360 x 768, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480 HDMI output supports 4K/UHD at 50/60 Hz with 4:4:4 chroma sampling HDBaseT output supports 4K/UHD at 50/60 Hz with 4:2:0 chroma sub-sampling
USB	USB-C: Up to 4K/UHD at 60 Hz for devices supporting USB-C alternate mode video output
Wireless Capability	Up to 1920 x 1080 at 30 Hz 4:2:0 (up to 1920 x 1080 at 60 Hz with Miracast), dependent on wireless signal quality
Color Space	YUV, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Color Depth	8-/10-/12-bit
HDR	HDR10 and Dolby Vision at 60 Hz

Audio

Formats	Pass-Through Formats: PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
Analog Input	Unbalanced 2-channel, 3.5 mm
Analog Output	Balanced / unbalanced 2-channel, 5-pin captive screw
Sample Rate	32/44.1/48/88.2/96/176.4/192 kHz
Bit Rate	24-bit (maximum)
Distance	HDMI IN/OUT: 4K/UHD: 15' (5 m) 1920 x 1080: 30' (10 m) CAT5e/6: 4K/UHD: 230' (70 m) 1920 x 1080: 330' (100 m) CAT6a/7: 4K/UHD: 330' (100 m) 1920 x 1080: 330' (100 m)

Signal

Bandwidth	18 Gb/s (For HDMI 2.0 output, HDBaseT output limited to 10 Gb/s)
HDCP/CEC Support	CEC Support: Yes HDCP: 2.2 (wired device connections, only)

USB

Port	USB Type-C: USB-C for AV input (Alternate Mode), USB 2.0 Type-A for Wi-Fi antenna modules (3 ports)
Power	USB-C Power: Up to 60 W / 3 A at 20 V
Charging Capability	USB-C Device Charging Capability: Up to 20 V, 3 A Output: 60 W at 20 V, 36 W at 12 V, 15 W at 5 V

IP Specifications

Ethernet Ports	RJ45
Protocols	DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, Telnet, SSH, TCP/IP, UDP
Ethernet Speed	10/100/1000 Mb/s
Addressing	DHCP, static
Wi-Fi	IEEE 802.11n/ac 2.5 GHz / 5 GHz
Wi-Fi Protocols	WEP, WPA, PSK, WPA2 PSK, WPA Enterprise, WPA2 Enterprise
Antenna	Two included

Control Port

RS-232	Bidirectional, 3-pin captive screw
Relay Mode	3-pin captive screw, normally open (NO), with adjustable toggle and pulse modes Electrical rating: 48 V at 1 A
Trigger Connectivity	4-pin captive screw Electrical Rating: 30 V at 1 A (maximum)

General

Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Humidity	20 to 90%, non-condensing (RH)
Certification	CE, FCC, UL
Power Consumption	Full Load: 121 W 35 to 40 W (Idle)
Power Supply	Input: 100-240 VAC, 50/60 Hz Output: 5 VDC
Dimensions	With Feet: 1.8 x 8.5 x 10.2" (4.8 x 21.5 x 25.9 cm) Without Feet: 1.7 x 8.5 x 10" (4.4 x 21.5 x 25.4 cm)
Weight	3.7 lb (1.7 kg)
