Atlas Sound GD87 8" In-Ceiling Coaxial Speaker with 8-Watt 70.7V Transformer
Atlas Sound GD87 8" In-Ceiling Coaxial Speaker with 8-Watt 70.7V Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound GD87 8" In-Ceiling Coaxial Speaker with 8-Watt 70....
The GD87 is a high performance coaxial speaker with performance specifications identical to the legendary AtlasIED Model C803A. This similarity in sonic quality insures that existing C803A systems may be expanded with the new GD87 without any noticeable sonic or performance differences.

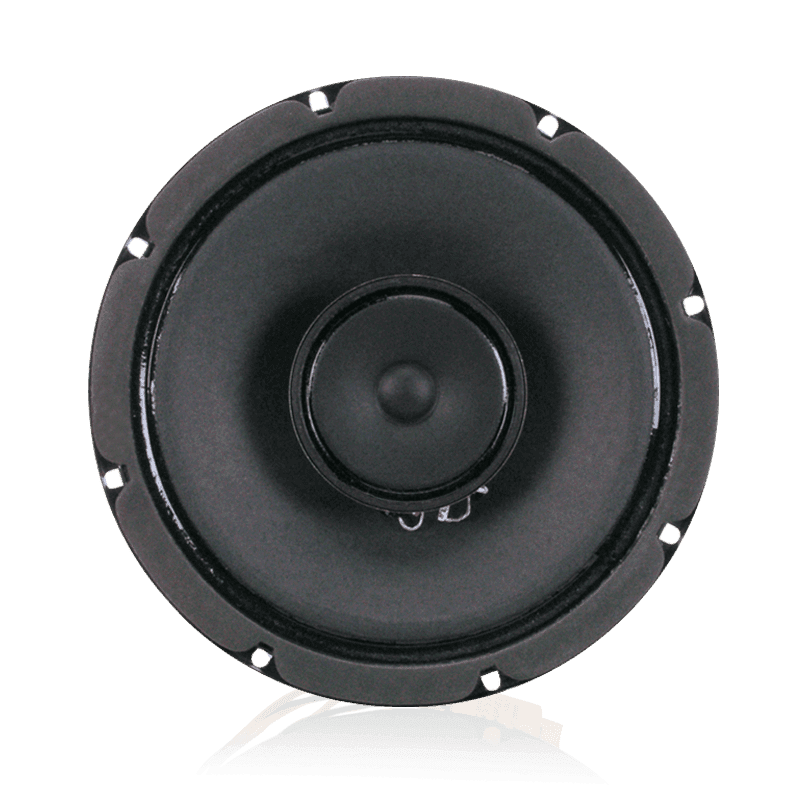

The high-quality, 16 watt Model GD87 utilizes a post mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 45Hz - 19kHz (nominal) frequency response and a broad, uniform dispersion pattern of 105° (2kHz octave band). The GD87 combines a full-size 8" (203mm) dia., low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet. The unit has an average sensitivity of 96dB (1W/1m).

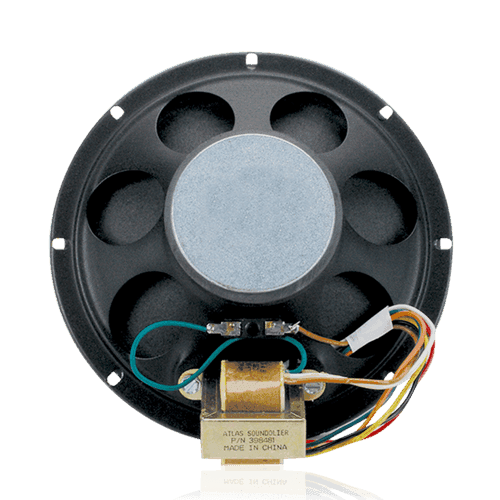

The speaker is matched with a high efficiency 8 watt 70.7V transformer with a maximum insertion loss of 0.6dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1dB from 50Hz - 15kHz. The primary taps are 1, 2, 4, and 8 watts.
Features
-
Individually Packaged for Stocking & Ordering Convenience
-
Safety Listed to UL 1480 & UL 2043
-
Industry Standard 8" (203mm) Coaxial, 16 Watt, Loudspeaker with High Quality Factory Installed 8 Watt Line Matching Transformer
-
Offers Proven Performance with Wide Frequency Response
-
Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
Specs
| Speaker Type | Treated Paper |
| Sensitivity | 96dB Average |
| Frequency Response | 55Hz - 15kHz |
| Power Taps | 1, 2, 4, & 8 Watts |
| Dispersion | 105° (2kHz Octave Band, -6dB Points) |
| Diameter | 8 1/8" (20.6375 cm) |
| Safety Listed | 1480, 2043 |
