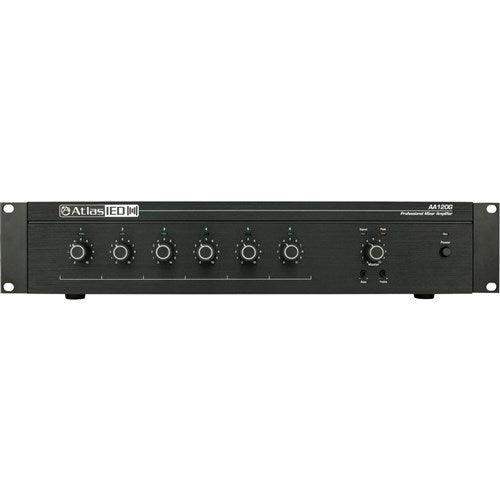

Atlas Sound AA120G 6-INPUT, 120-WATT MIXER AMPLIFIER

$992.99 $1,237.99

Shipping calculated at checkout.

AtlasIED | SKU: AA120G

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The AA120G is a 120 Watt six input multi load impedance mixer amplifier that is engineered with many unique features to assist the contractor or installer in today's commercial business audio environment. It is designed for distributed paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required.

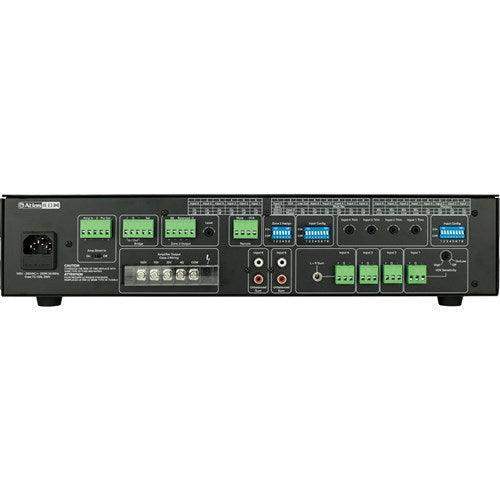

With four microphone / line inputs and two stereo line input, the A120G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. This mixer amplifier features VOX (Voice Operated Mute) and contact closure muting, tone control, Line out and Zone 2 Output. The AA120G offers a very unique Bridge In / Out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. VCA remote level control circuitry is included which may be assigned to the BGM input or globally for the entire amplifier.

The output power of output power of the AA120G will match nicely with AtlasIED FAP, SM, SD, and GD Series loudspeakers. 25V, 70.7V, 100V, and 8? outputs are provided

Features

120 Watt 6 Channel Mixer Amplifier
4 Mic/Line Inputs with Phantom On/Off per Mic and 2 Stereo Summing AUX Inputs
Bridge In/Out Circuit with Balanced Link / Internal Relay to Engage Circuit is Perfect for Small Room Combining Systems Eliminating the Need for External Electronics
Pre Out / Power Amp In for Patching External Processors
Remote or VOX Mute Capabilities
Special Low Cut Filter is 6dBu/octave at 400Hz and also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T
Zone 2 MOH Out from CH6 Line Source
UL60065 Listed

Specs

General Information
Manufacturer	Atlas Sound LP.
Manufacturer Part Number	AA120G
Manufacturer Website Address	http://www.atlassound.com
Brand Name	AtlasIED
Product Series	AA
Product Model	AA120G
Product Name	6-Input, 120-Watt Mixer Amplifier
Product Type	Amplifier
Technical Information
Minimum Frequency Response	50 Hz
Maximum Frequency Response	20 kHz
Impedance	8 Ohm
Audio
Audio Channels	6
RMS Output Power	120 W
Interfaces/Ports
Number of Analog Audio Inputs	4
Power Description
Operating Power Consumption	250 W
