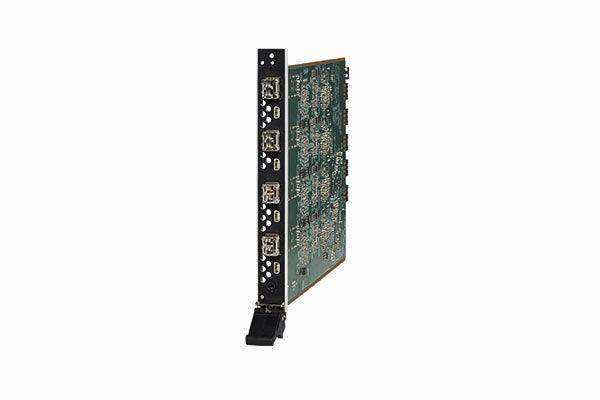

AMX DGX-O-DXFP-4K60 – Enova DGX DXLink 4K60 Fiber Output Board

Product Overview

The AMX DGX-O-DXFP-4K60 is a DXLink 4K60 fiber output board for Enova DGX enclosures, routing full 4K60 4:4:4 HDR matrix outputs over fiber optic cable to remote displays at distances beyond Cat-cable range — for inter-building distribution, electrically-isolated signal paths, and long-distance campus AV display networks.

Product Description

The AMX DGX-O-DXFP-4K60 DXLink 4K60 fiber output board routes 4K60 4:4:4 HDR signals from the Enova DGX matrix over multimode or single-mode fiber optic cable to remote displays via compatible DXLink fiber receivers — enabling 4K60 DGX matrix outputs to reach displays in separate buildings, across large campuses, or over electrically-isolated signal paths that Cat-cable DXLink cannot cover. It installs into any DGX enclosure slot and is the appropriate output board for university AV distribution hubs, performing arts centers, and government facilities where fiber infrastructure is already in place for long-distance AV signal routing from a central DGX matrix.

Key Features

• 4K60 4:4:4 HDR fiber output — Routes 4K60 DGX matrix signals over fiber beyond Cat-cable limits.
• Inter-building display distribution — Multi-building and campus-wide 4K60 AV from DGX matrix.
• Electrical isolation via fiber — Eliminates ground loop issues between buildings.
• DGX modular slot board — All DGX enclosure sizes.

Technical Specifications

Typical Applications

• Long-distance 4K60 AV signal distribution across large campuses, hospitals, and multi-building enterprise facilities
• Government and federal AV installations requiring fiber's electromagnetic interference immunity and physical tap-resistance
• Broadcast studios and production environments distributing 4K60 signals over existing single-mode fiber infrastructure
• Large venue and auditorium systems where DXLink fiber endpoints are positioned beyond twisted pair cable distance limits
• Secure government facilities requiring intrusion-resistant signal transport over long-haul fiber runs

Frequently Asked Questions

What is the maximum transmission distance for the DGX-O-DXFP-4K60 over fiber?
The DGX-O-DXFP-4K60 connects to DXLink fiber receivers and transmitters capable of distances well beyond the 100m twisted pair limit. Refer to the compatible DXLink fiber endpoint for the specific distance specification based on fiber type.

Which Enova DGX enclosures is the DGX-O-DXFP-4K60 compatible with?
The DGX-O-DXFP-4K60 is compatible with the Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.

Does the DGX-O-DXFP-4K60 support HDCP?
Yes. DGX DXLink fiber boards support HDCP-compliant signal transport for protected content distribution in commercial AV environments.
