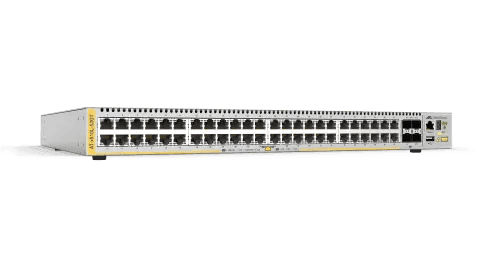

Allied Telesis X510L-52GT-90 L3 SW 48 10/100/1000 BASE-T PO

Allied Telesis AT-X510L-52GT Layer 3 Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X, 10GBase-X - 3 Layer Supported - 4 SFP Slots - Twisted Pair, Optical Fiber - Rack-mountable

The Allied Telesis x510 Series of stackable Gigabit Layer 3 switches includes a full range of security and resiliency features, coupled with easy management, making them the ideal choice for network access applications.

Allied Telesis x510 Series switches area high-performing and feature-rich choice for today's networks. They offer a versatile solution for Enterprise applications. With a choice of 24- and 48-port models with 1/10Gigabit uplink ports, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack™), the x510 Series can connect anything from a small workgroup to a large busines.

Powerful Network Management
Meeting the increased management requirements of modern converged networks, Allied Telesis Management Framework TM (AMF) automates many everyday tasks including configuration management. The complete network can be managed as a single virtual device with powerful centralized management features. Growing the network can be accomplished with plug-and-play simplicity, and network node recovery is fully zero-touch.

Network Resiliency
The convergence of network services in the enterprise has led to increasing demand for highly available networks with minimal downtime. VCStack, in conjunction with link aggregation, provides a network with no single point of failure and an easy solution for resiliency in access applications. Ethernet Protection Switched Ring (EPSRingTM) resilient ring protocol ensures distributed networks have high- speed access to online resources and applications.

The x510 Series can form a VCStack of up to four units for enhanced resiliency and simplified device management. Full EPSRing support and VCStack LD (Long Distance), which enables stacks to be created over long distance fiber links, make the x510 Series the perfect choice for distributed environments.

Reliable
The x510 Series was designed with reliability in mind, and guarantees continual delivery of essential services. With dual built-in power supplies and near-hitless online stack reconfiguration, maintenance may be performed without affecting network uptime.

The x510DP features dual hot-swappable load-sharing power supplies for maximum uptime. With front-to- back or back-to-front cooling options, the x510DP is ideal for data center applications.

The x510L Series switches enable high-value solutions at the network edge.

Secure
Advanced security features protect the network. Unprecedented control over user access is provided with Network Access Control (NAC), mitigating threats to network infrastructure. This ensures the network is accessed only by known users and devices - all users' adherence to network security policies is checked, and then either access is granted or remediation is offered. Secure access can also be provided for guests.

A secure network environment is guaranteed. The x510 Series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control.

Future-proof
The x510 Series ensures a future- proof network, with superior flexibility coupled with the ability to stack multiple units. All x510 Series models feature 1/10 Gigabit uplinks ports and a comprehensive IPv6 feature set, to ensure they are ready for future network traffic demands.

• Built-in power supply to ensure all components are being supplied with accurate voltage
• Supports layer 3 switching for enhanced performance and usability
• Rack mounting enables you to organize wires & secure cables for professional installation
• Management capability allows maximum efficiency and with unrestricted control
• Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
• Provides efficient communication with other layer 3 switch in the stack to ensure maximum productivity
• Twisted Pair media support for a dependable and productive connectivity
• Features 48 networking ports to meet the requirements of the most demanding workgroups
• Layer 3 Switch provides dependable and powerful connectivity for maximum usability

Specs

Management & Protocols Manageable Yes Network & Communication Layer Supported 3 Miscellaneous Country of Origin China Environmentally Friendly Yes Power Description Power Source Power Supply Redundant Power Supply Supported No I/O Expansions Expansion Slot Type SFP SFP+ Number of Total Expansion Slots 4 Number of SFP Slots 4 Shared SFP Slot No Physical Characteristics Weight (Approximate) 14.99 lb Form Factor Rack-mountable Height 1.7" Width 17.3" Depth 12.8"

Interfaces/Ports Modular No Uplink Port Yes Stack Port Yes Total Number of Network Ports 48 Port/Expansion Slot Details 48 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot Media & Performance Network Technology 10GBase-X 1000Base-X 10/100/1000Base-T Ethernet Technology 10 Gigabit Ethernet Gigabit Ethernet Media Type Supported Optical Fiber Twisted Pair General Information Product Type Layer 3 Switch Manufacturer Part Number AT-X510L-52GT-90 Manufacturer Website Address http://www.alliedtelesis.com Manufacturer Allied Telesis, Inc Product Model AT-X510L-52GT Product Name AT-X510L-52GT Layer 3 Switch Product Series x510L Brand Name Allied Telesis
