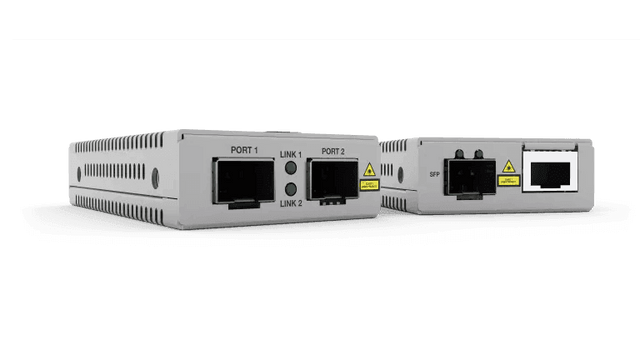

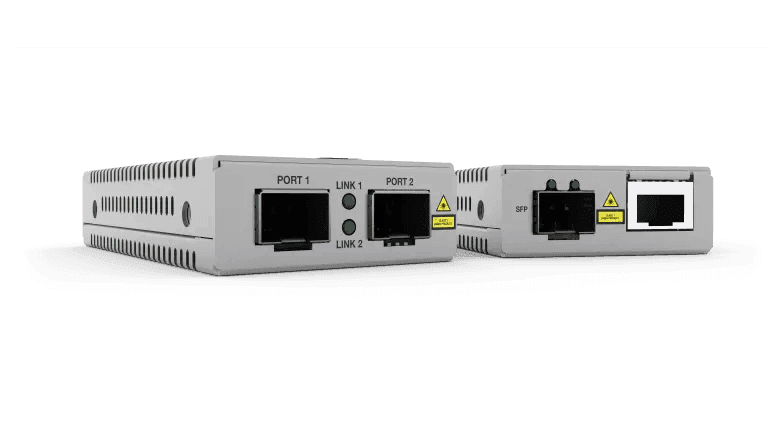

Allied Telesis AT-MMC10GSP/SP-960 MINI MEDIA CONVERTER SFP+ TO SFP+ UNIV PSU TAA

Allied Telesis MMC10GSP/SP Transceiver/Media Converter - Single-mode, Multi-mode - 10 Gigabit Ethernet - 10GBase-X - 328 ft - 2 x Expansion Slots - SFP+ - 2 x SFP+ Slots - Power Supply - Wall Mountable, Rack-mountable - TAA Compliant

The Allied Telesis MMC10G Series of mini media converters leverage their smaller size to not only help the environment with a small carbon footprint, but also to save space in the office. Despite its compact size, the MMC10G Series delivers all the power and functionality of standard size media converters.

Extend NetworksThe MMC10G Series are available in 10G BASE-T to SFP+, and SFP+ to SFP+ configurations. The SFP+ connectors are capable of multi-mode or single-mode fiber connectivity. As well as 1G or 10G SFP's, the twisted- pair copper port has a 1G/10G RJ45 connector with a maximum operating distance of 100 meters (328 ft) using Cat6a/7 cabling.

VLAN Support

Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC10G Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.

Small and Flexible

The smaller size and external power supply of the MMC10G Series allows them to be used almost anywhere.

MissingLink (ML)

The MissingLink™ (ML) feature monitors network connections allowing network managers to quickly identify the source and location of failed segments and minimize downtime.

Smart Link Restoration

Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.

Power Saving

The MMC10G Series continues Allied Telesis commitment to the environment. Using only 4W of power, the MMC10G Series media converters are some of the most efficient in the market today.

Loopback/Traffic Generator

The MMC10G Series has a loopback function and Traffic Generator to help diagnose network connections.

1G/10G support

The MMC10G supports both 1Gbps and 10Gbps media conversion. The speed must match on both ports -- either 1Gbps copper to fiber, or 10Gbps copper to fiber, conversion.

Features

• With 10GBase-X technology get up to 10Gbps data transfer rate over supported network cable
• Tuck the device out of the way with its Wall Mounting feature
• Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances

Specs

Power Description Power Source Power Supply Miscellaneous Country of Origin Singapore TAA Compliant Yes Network & Communication Network Technology 10GBase-X Ethernet Technology 10 Gigabit Ethernet I/O Expansions Expansion Slot Type SFP+ Number of Total Expansion Slots 2 Number of SFP+ Slots 2 Media & Performance Maximum Distance Supported 328 ft Media Type Supported Optical Fiber Fiber Mode Supported Multi-mode Single-mode

Physical Characteristics Weight (Approximate) 6 oz Form Factor Wall Mountable Rack-mountable Height 0.9" Width 2.2" Depth 4" General Information Product Type Transceiver/Media Converter Manufacturer Part Number AT-MMC10GSP/SP-960 Manufacturer Website Address http://www.alliedtelesis.com Manufacturer Allied Telesis, Inc Product Model MMC10GSP/SP Product Name MMC10GSP/SP Transceiver/Media Converter Product Series MMC10G Brand Name Allied Telesis
