Allied Telesis AT-GS950/16PS-10 16PORT 10/100/1000T WEBSMART SW W/2SFP COMBO PT POE+ & US PWR CORD

Regular price $872.00
Shipping calculated at checkout.
Allied Telesis  |  SKU: AT-GS950/16PS-10

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted

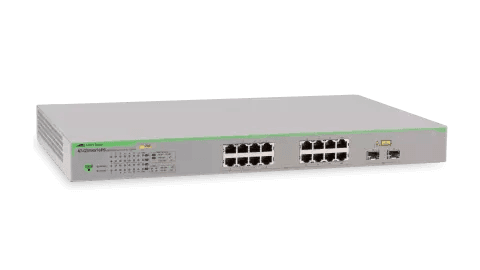

Allied Telesis 16 Port Gigabit WebSmart Switch - 16 Ports - Manageable - 10/100/1000Base-T - 2 Layer Supported - 2 SFP Slots - Wall Mountable, Desktop, Rack-mountable - Lifetime Limited Warranty
ECO-Friendly
TheAT-GS950/16 eco-friendlyWebSmart switch conforms withAlliedTelesis' commitment to environmentally friendly processes and products. It is designed to minimize power consumption through the use of a high efficiency power supply and a low power chipset.

With a low 12.07W typical power consumption, and a reduction in power during after-work hours (overnight mode) - as well as other powersaving features included as standard,theAlliedTelesis AT-GS950/16 truly lives up to it's name as an'ecofriendly'switch.Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers theTotal Cost of Ownership (TCO) to the user, as the product costs less to run, and has improved reliability

Features
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
  • Management capability allows maximum efficiency and with unrestricted control
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Expand your network capacity with the help of 16 networking ports and transfer your data quickly and easily
  • Effectively increases available bandwidth on your network
  • 64 MB memory seamlessly handles multiple connections together
Specs
Network & Communication
Layer Supported 2
Reliability
MTBF 26300 Hour
Management & Protocols
Management
  • SNMP v1/2c/3
  • MIB II
  • VLAN
  • DHCP
  • QoS
  • Web-based Management
  • RMON
Manageable Yes
Power Description
Power Source Power Supply
PoE (RJ-45) Port No
Media & Performance
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet
Media Type Supported Twisted Pair
Memory
Flash Memory 16 MB
Standard Memory 64 MB
Memory Technology DRAM
I/O Expansions
Expansion Slot Type SFP
Number of Total Expansion Slots 2
Number of SFP Slots 2
Shared SFP Slot Yes
General Information
Product Type Ethernet Switch
Manufacturer Part Number AT-GS950/16PS-10
Manufacturer Website Address http://www.alliedtelesis.com
Manufacturer Allied Telesis, Inc
Product Model AT-GS950/16
Product Name 16 Port Gigabit WebSmart Switch
Brand Name Allied Telesis
Miscellaneous
Certifications & Standards IEEE Standards:
  • 802.3
  • 802.3i
  • 802.3u
  • 802.3z
  • 802.3z
  • 802.3ab
  • 802.3x
  • 802.1p
  • 802.1x
  • 802.1d
  • 802.3ad
  • 802.1Q
  • 802.1d
  • 802.1w

Electrical/Mechanical Approvals:

  • UL 1950
  • FCC/EN55022 Class A
  • VCCI Class A
  • C-Tick
  • EN60950 (TUV)
  • EN55024
  • CE
  • CSA/CUL
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification China RoHS
RoHS
WEEE
80 Plus
Physical Characteristics
Weight (Approximate) 4.63 lb
Form Factor Desktop
Wall Mountable
Rack-mountable
Height 1.7"
Width 13"
Depth 7.9"
Interfaces/Ports
Token Ring Port No
LRE Port No
USB No
Number of Network (RJ-45) Ports 16
Modular No
Management Port No
Stack Port No
Bypass No
Total Number of Network Ports 16
Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot
16 x Gigabit Ethernet Network
