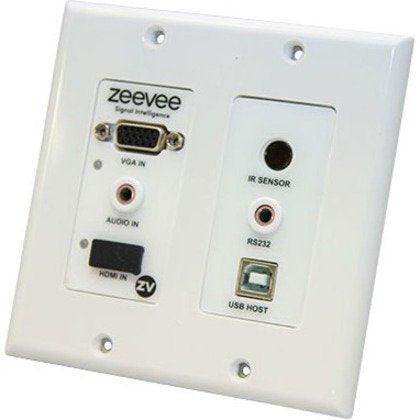

ZeeVee ZYPERUHD-WE ZyPer UHD Wall Plate Encoder
The ZyPerUHD-WE Wallplate Encoder is a HDMI 2.0 and VGA input Encoder with IP streaming via Gbit/copper. Ports include: Audio Input of unbalanced stereo audio on 3.5mm jack, VGA video on 15-pin D-sub connector (no audio), HDMI 2.0a capable of up to 4KP60 4:2:0 with embedded audio and HDCP 2.2 encryption, IR, RS-232 control port and USB 2.0 Type B and POE. Power supply is not include. Includes wall mount brackets. Requires ZyPerUHD Decoder and ZyPerUHD/ZyPerHD management Platform. Cables not included
The ZyPerUHD platform allows for the easy distribution and switching of ultra high definition compressed video, audio, and other data signals using ZyPerUHD encoder and decoder modules and off-the-shelf 1Gb Ethernet switches.
Features
- JPEG 2000 compressed 4K video, audio, and control using off-the-shelf (OTS) 1Gb Ethernet switches. Support for both analogue and digital audio
- ZyPerMP (Management Platform) with Maestroz software GUI allows simple set up and control of ZyPerUHD. ZyPerMP also has an open API allowing control via 3rd party systems
- Power over Ethernet support (PoE)
- Ultra low latency (less than 2 frames)
- Supports HDR
- Video Wall support up to 5x5
- Source and display control (RS232, IR, USB)
- HDCP 2.2 compliant
- Wallplate Encoder option
- ZyPerUHD can also be used in a point-to-point configuration to encode a 4K video source across a dedicated copper connection to a display up to 100m away
Specification
| General Information | |
| Manufacturer | ZeeVee, Inc |
| Manufacturer Part Number | ZYPERUHD-WE |
| Manufacturer Website Address | http://www.zeevee.com |
| Brand Name | ZeeVee |
| Product Model | ZYPERUHD-WE |
| Product Name | ZyPerUHD-WE: Wall Plate Encoder |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Maximum Operating Distance | 328.08 ft |
| Video | |
| Graphics Modes | 4K UHD |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| VGA In | Yes |
| USB | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of VGA Inputs | 1 |
| Physical Characteristics | |
| Form Factor | Wall Plate |
