The ZyPer4K platform allows for the distribution and switching of high definition uncompressed video, audio, and control using ZyPer4K encoder and decoder modules and off-the-shelf 10Gb Ethernet switches (both fiber and copper).
Unparalleled Quality and Performance
When picture quality and latency matter, there is no alternative to the ZyPer4K encoder and decoder product line. Delivering uncompressed 4K at virtually zero latency, the ZyPer4K is the first SDVoE solution on the market — enabling the distribution of content to an unlimited number of displays over a 10Gb Ethernet switch. Using industry standard CAT 6a cables, or fiber, you can send audio and video from HDMI, SDI, Analog and DisplayPort source up to 100 meters - and using the USB port, control keyboards, mice, and cameras directly over your network. ZyPer4K also has a 1Gb direct network connection, ideal connecting other IP devices - without extra cabling. By using standard networking cables and switches, a ZyPer4K solution can save up to 40% compared to the cost of conventional, proprietary AV switches - without sacrificing image quality, resolution and latency.
Uncompressed 4K
ZyPer4K delivers perfect pixel for pixel reproduction of uncompressed 720p, 1080p HD, Ultra HD, and 4K resolution content directly over a standard 10Gb Ethernet network using standard CAT 6a cables. ZyPer4K eliminates the need to have a separate AV network or proprietary matrix switcher for video and other AV content.
1Gb network port to every source and display
Each ZyPer4K encoder and decoder unit has a 1Gb network port you can use for any IP network device including digital signage media players, IP Cameras, Video/Audio conferencing equipment and even WiFi network equipment.
Features
- Functions: Video Encoding
- Maximum Resolution: 4096 x 2160
- USB: Yes
- HDMI: Yes
- Network (RJ-45): Yes
- Form Factor: External
- Height: 1.5"
- Width: 5.7"
- Depth: 6.9"
- Weight (Approximate): 2.12 lb
Specification
General Information | |
Manufacturer | ZeeVee, Inc |
Manufacturer Part Number | Z4KENCF3U |
Manufacturer Website Address | http://www.zeevee.com |
Brand Name | ZeeVee |
Product Line | ZyPer4K |

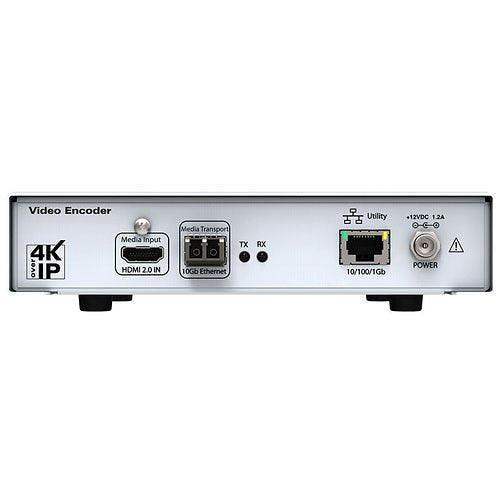

Product Name | ZyPer4K Video Encoder |
Product Type | Video Encoder |
Technical Information | |
Functions | Video Encoding |
Maximum Resolution | 4096 x 2160 |
Interfaces/Ports | |
USB | Yes |
HDMI | Yes |
Network (RJ-45) | Yes |
Physical Characteristics | |
Form Factor | External |
