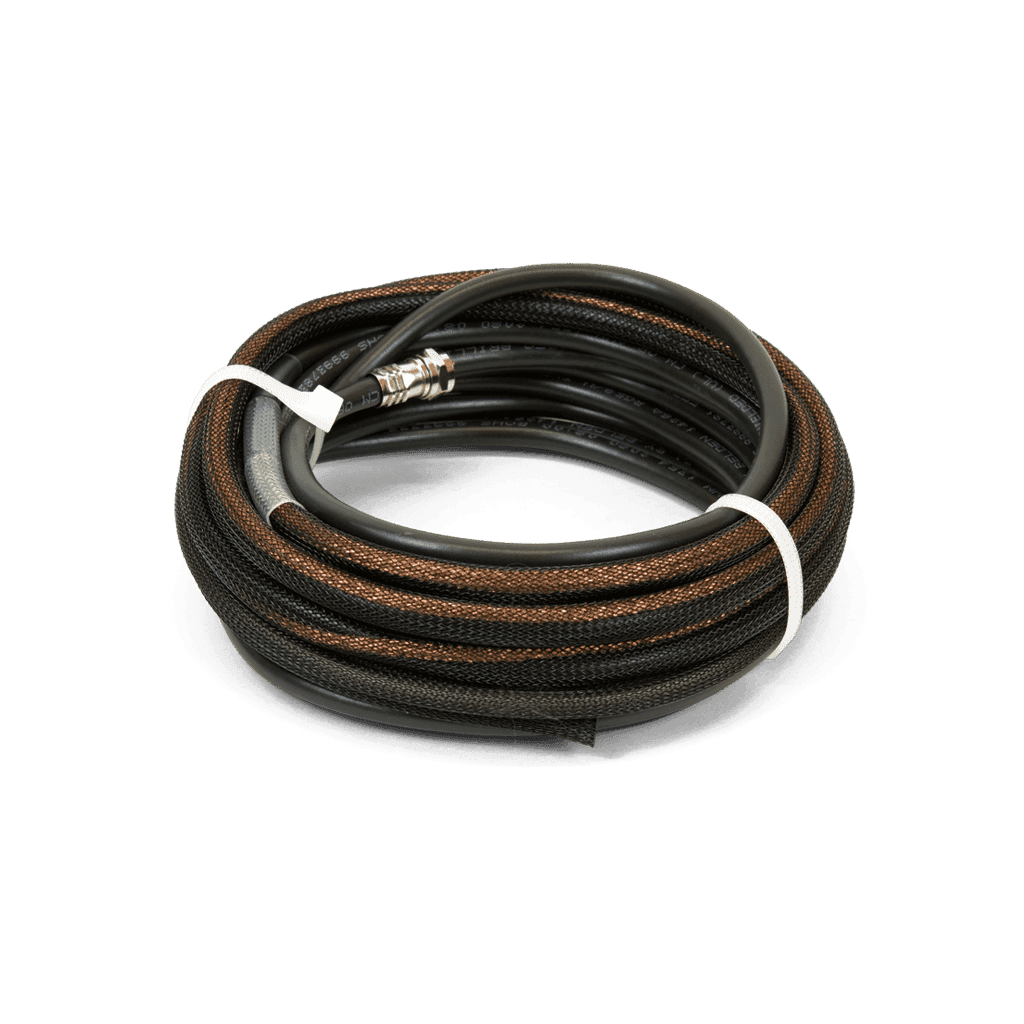

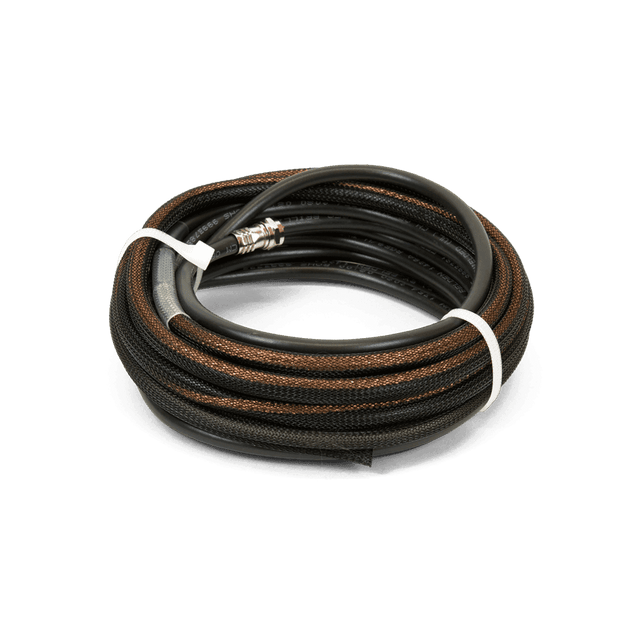

Remote Coaxial Antenna, 72-76 MHz FM, 22ft overall cable length with last 80inches being active antenna. Use with large-area FM transmitters. Works with optional 50′ antenna extension (WCA 008 50). Shipping: 9″ x 5″ x 7″, 1.0 lbs.
- For Use with: PPA T45,PPA T45NET, PPA T27 transmitters
- Connector Type: F-connector
- Cable Type: RG 59 coax
- Nominal Impedance: 75 Ohms
- Total Cable Length: 22'
- Active Antenna Length: 80"
- Compatible with optional 50' antenna extension
Features
- For Use with PPA T45, PPA T45NET
- PPA T27 Transmitters
- Total Cable Length: 22'
- Active Antenna Length: 80"
Specifications
Williams Sound ANT005 Specs
| For Use with | Transmitters: PPA T45 PPA T45NET PPA T27 |
| Connector Type | F-connector |
| Cable Type | RG 59 coax |
| Nominal Impedance | 75 Ohms |
| Total Cable Length | 22.0' / 6.7 m |
| Antenna Length | Active Antenna Length: 80.0" / 203.2 cm |
Packaging Info
| Package Weight | 0.83 lb |
| Box Dimensions (LxWxH) | 6.35 x 6.2 x 2.3" |
