WF T8
| Dimensions | 17” W x 7.625” D x 1.72”H (43.18 cm x 19.37 cm x 4.4 cm) |
| Weight | 5.0 lbs (2.27 kg) |
| Color | Black |
| Rack Mount | Standard 19” Rack, one EIA rack space high, one rack space wide |
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| Power Switch | Rocker; backlit red LED indicates power on |
| Temperature Range | Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C) |
| Audio Processor Functions | DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control |
| Frequency Response | 31 – 16000 Hz, ±3 dB (“Music” Audio Preset) |
| Signal-to-Noise Ratio | Greater than or equal to 69 dB (streaming to iPhone) |
| Total Harmonic Distortion | Less than 0.25% @ 1 kHz |
| Common Mode Rejection | Greater than 52 dB @ 1 kHz |

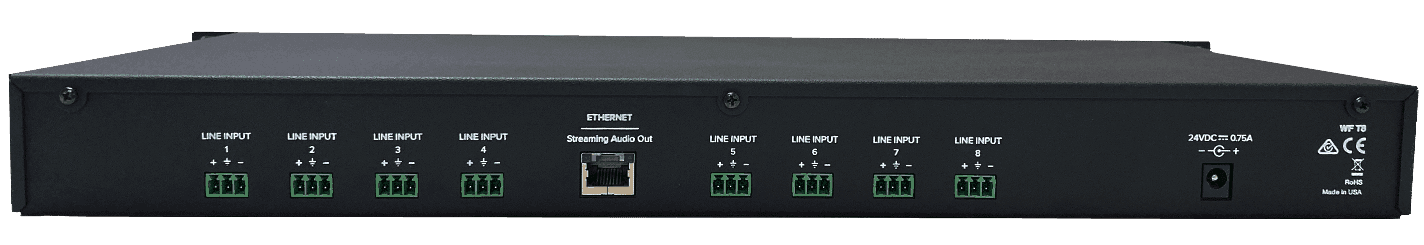

| Audio Inputs | 8 Phoenix-style Line Level Analog Audio, Balanced or Unbalanced Line Level |
| Audio Input Gain Adjust | In menu, adjustable to +6 to -60 dB, in 1dB steps |
| Ethernet | RJ-45 on the back of the unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant. |
| Approvals | FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme |
| Warranty | 2-year warranty against component failure and manufacturing defects. See the Full Warranty statement on the website for details. |
Warranty
2 Years
