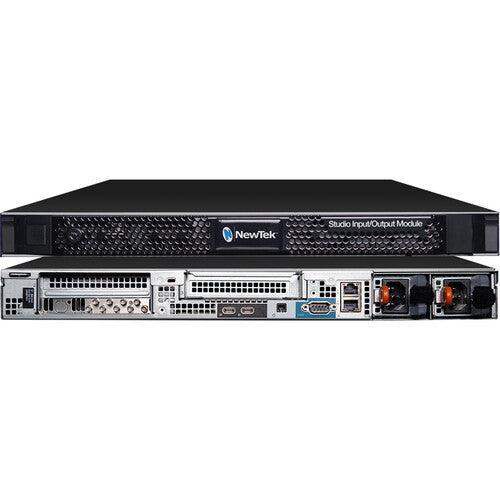

Vizrt NC2I/O Studio I/O Module - FG-003244-R001

Bridge your NDI infrastructure with SDI and NDI I/O streams using the NC2 Studio I/O Module from NewTek. Route up to eight channels of SDI video across your network to transmit and receive SD, HD, or UHD 4K video in a studio environment.

Eight HD-BNC terminals can connect to video sources, audio sources, decks, or monitors, and can each be configured for input or output. You can configure the NC2 to input or output up to eight 3G-SDI, two 12G-SDI with four 3G-SDI, or any other I/O configuration you need. It supports color correction on each channel with professional imaging controls, multi-format processing, and Dante, AES, ASIO, and WDM audio with your existing drivers and licenses.

Since the module only needs to attach to your network, you can deploy multiple modules in different locations inside your network, instantly integrating that location into your production. Its 10 Gb/s Ethernet port can easily support high-quality video streams in an NDI environment. Multiview video can also be locally displayed via USB Type-C. This unit mounts in a standard 19" equipment rack, so you can add more units for a greater number of inputs and outputs at a given location.
