The E/D5100 AV over IP endpoints can be deployed on any industry-standard IP network, offering seamless integration with existing enterprise IP networks or separate parallel private networks. This flexibility allows for efficient installation without intermingling video traffic with data or voice, ensuring optimal network performance and stability.
Upgrade your AV installations with Visionary Solutions’ next-generation E/D5100 4K60 4:4:4 capable AV over IP endpoints and experience the future of AV distribution
Features

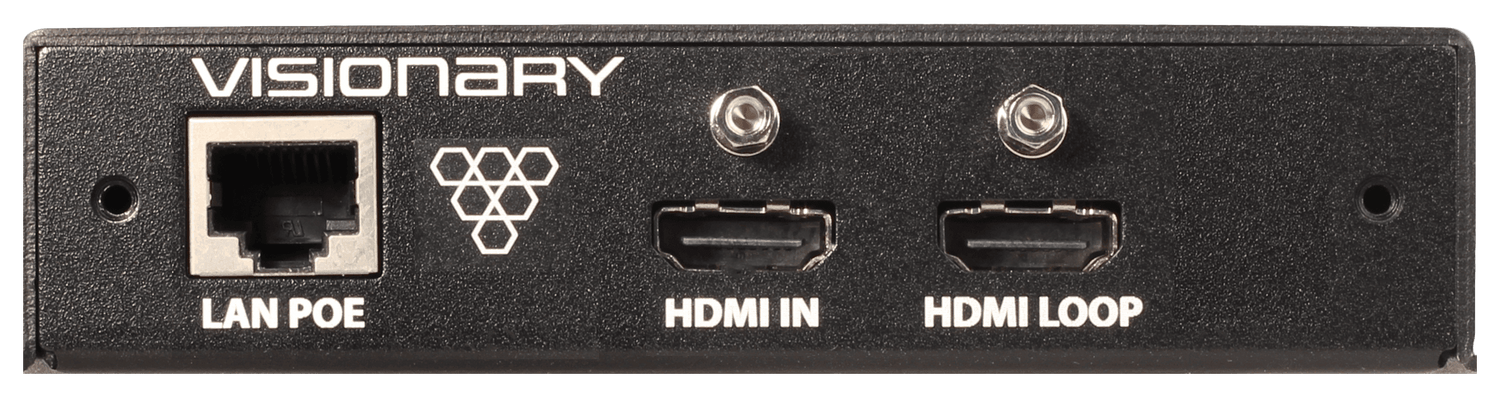

Gigabit LAN Port for 4K UHD 4:4:4 Video, Control, and Powered Device (PD)
A single Ethernet port for AV over IP, KVM over IP, USB over IP and RS-232 over IP, and POE Power Input

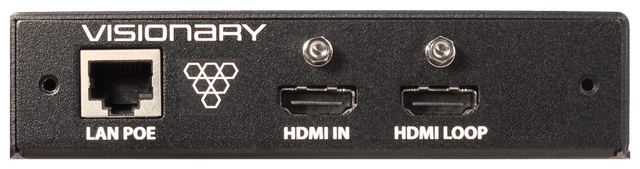

HDMI loop-through (Encoder)
Single HDMI loop-through
Native AES67 Audio Support
Seamlessly integrates with AES67 audio networks, enabling high-quality, low-latency audio transmission over IP. Ensures full interoperability with other AES67-compliant devices for professional audio applications.
Independent Routing
Independently route all signals with the ability to separately matrix video, audio, and USB.
Auto Video Scaler
No need to worry about configuring the source resolution
Isochronous USB 2.0 over IP
Isochronous USB 2.0 over IP
Enables real-time data transfer for USB devices, such as webcams and microphones, over the network. This feature simplifies the deployment of video conferencing solutions and offers greater flexibility in AV system design. By leveraging the AV over IP infrastructure, it allows seamless integration and extension of USB peripherals.
Enterprise Level Security –AES Encryption, 802.1x, HTTPS, SSH
Enterprise applications demand a secure Network
AES Stream Encryption – The Advanced Encryption Standard, or AES, is a worldwide standard and was adopted as the standard encryption algorithm by the U.S. government for encrypting classified information
HTTPS Secure API – Using secure SSL/TLS communications HTTPS provides integrity that a client is communicating
with the real API and receiving back authentic data
802.1x Authentication for Network access control
SSH Network Protocol – SSH is a network protocol used to remotely access and manage a device through command line communications.
USB 2.0 over IP (KVM), RS-232 over IP, and CEC over IP
Control practically any remotely located device using USB devices and interfaces
Also supports KVM over IP
Control any device with an RS-232 interface
HDMI CEC signal extension over IP
4K60 4:4:4 Video Support
Experience ultra-high-definition video with 4K resolution at 60 frames per second and full 4:4:4 color sampling for unparalleled image quality, suitable for professional applications where every detail matters.
Built in Video Wall Functions
A Single platform to support distributed displays and Video Walls; without expensive video wall processors
Enhanced Video Wall functionality – supports video rotation 180/270 degrees
Easily create video walls using normal commodity displays
Built-in video wall processor that allows you to build up to a 16×16 video wall
Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built-in AI
Visionary’s highly efficient video compression codec is a modified full frame encoding that dynamically optimizes for fine lines (computer generated graphics) or motion video by using sophisticated AI to analyze the input source content. Actively matching the level of compression to a scene by leveraging periods of low motion video content reduces the stream’s size and enhances performance – enabling, without compromising image quality, Visually Lossless transmission of computer generated graphics or full-motion video sources.
Adjustable Video Bitrate: (50 – 200 Mbps or Auto [800Mbps max])
GPIO – 1×1 I/O User Configurable
Control third party devices from any endpoint on the network
Dynamic OSD text overlay capabilities
The ability to overlay dynamic or fixed text on screen enables displaying of alerts, announcements, special instructions, clocks / timers, schedules, and other messaging
Mass Configuration
Auto Discover all endpoints on the network, export to .CSV file (all configurable parameters included), make changes offline, upload .CSV file through embedded web page of encoder/decoder and push configuration to the network
No external software required – mass configuration capabilities built into the endpoint embeddedwebpage UI
LLDP Support
Link Layer Discovery Protocol (LLDP) is a protocol used by network devices for advertising their identity, capabilities, and neighbors on a local area network based on IEEE 802 technology
Allows for dynamic control of endpoints based on automatic discovery of physical location
QoS Support
Quality of Service (QoS) is an advanced feature that prioritizes network traffic resulting in performance improvement for critical network traffic
Control
Vision Lite Control Software
3rd Party Control Drivers [Crestron, QSC, Symetrix, RTI, etc.]
*API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators
KVM Multi Display Roaming
Switch keyboard d mouse control automatically and seamlessly between PC’s by moving the cursor across the boundaries of a display and ‘roaming’ to adjacently mapped displays.
Seamless Fast Switching
Tearing free, no black screen, no frame lock
Full Motion MJPEG Substream
Maximize bandwidth efficiency and enhance video quality with a full motion MJPEG substream, delivering smooth, high-quality video feeds for preview or monitoring purposes without impacting the primary 4K60 4:4:4 video stream.
HDMI 2.0 and HDCP 2.2, 2.3 Compliant
Specs
