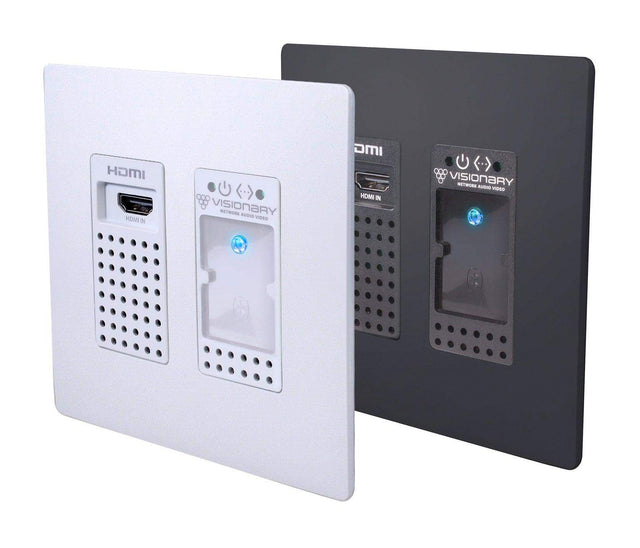

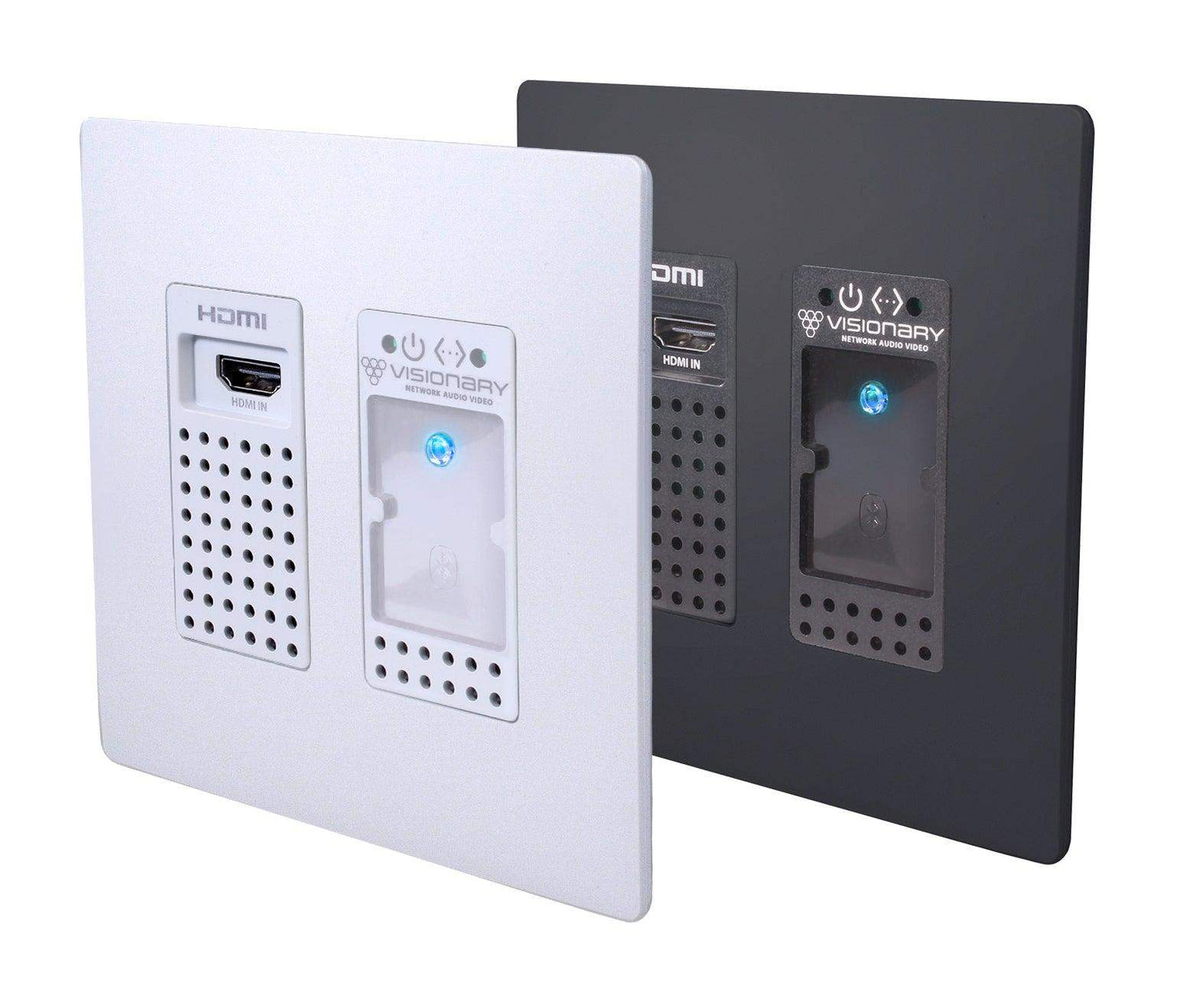

Visionary Solutions PacketAV DuetE5-WP-BT Wall Plate Encoder Faceplate, Bluetooth

Introducing the next-generation DuetE5-WP-BT 4K60 4:4:4 Wallplate AV over IP Encoder from Visionary Solutions. Building on the widely adopted PacketAV® Duet Wallplate Encoder, which brought true convergence of Dante®/AES67 and Video over IP in a convenient wallplate form-factor, the DuetE5-WP-BT raises the bar with enhanced features and powerful capabilities.

The DuetE5-WP-BT delivers stunning 4K60 4:4:4 video with accurate color reproduction and smooth motion handling, ensuring exceptional performance in various AV applications. The next-generation wallplate encoder continues to support Dante®/AES67 audio, providing seamless integration with professional audio systems and networks.

The DuetE5-WP-BT features built-in bi-directional Bluetooth® wireless audio connectivity, enabling effortless streaming of audio from Bluetooth®-enabled devices and expanding the range of supported audio sources. The wallplate encoder can be easily mounted in a wall, tabletop, lectern, or floor box using a standard 2-gang US or UK back box, simplifying installation and offering a sleek, unobtrusive design. The DuetE5-WP-BT connects to power (standard POE) and Ethernet using only a single category cable, streamlining deployment and reducing cable clutter.

Visionary Solutions’ PackeTV® and PacketAV® products can be deployed on any industry-standard IP network, allowing use on existing enterprise IP networks or a physically separate parallel network (private network) to offload traffic without intermingling of video traffic with data or voice.

Experience the future of networked AV with the DuetE5-WP-BT 4K60 4:4:4 Wallplate AV over IP Encoder with Bluetooth® from Visionary Solutions. With its powerful capabilities and advanced features, the DuetE5-WP-BT is the ideal choice for professionals seeking a versatile, high-quality, and easy-to-install AV over IP solution.

Features

One Gigabit LAN Port for 4K UHD Video, Dante®/AES67, and Control

• A single Ethernet port for Video over IP and Dante® AES67 audio embedding and de-embedding, with VLAN tagging capability to separate Audio & Video network traffic as needed

Bluetooth® Audio Connectivity

• Bluetooth® 5.0 for extended range, faster data throughput, and more reliable connections
• Bluetooth® Audio bridge for Dante™
• Supports both A2DP profile for media streaming and Hands Free Profile (HFP) for bi-directional smartphone bridging
• Connect easily and share audio from your Mac, Laptop, Tablet, Mobile, and Other Bluetooth® enabled devices

Mass Configuration

• Auto Discover all endpoints on the network, export to .CSV file (all configurable parameters included), make changes offline, upload .CSV file through embedded web page of encoder/decoder and push configuration to the network
• No external software required – mass configuration capabilities built into the endpoint embedded webpage UI

LLDP Support

• Link Layer Discovery Protocol (LLDP) is a protocol used by network devices for advertising their identity, capabilities, and neighbors on a local area network based on IEEE 802 technology
• Allows for dynamic control of endpoints based on automatic discovery of physical location

QoS Support

• Quality of Service (QoS) is an advanced feature that prioritizes network traffic resulting in performance improvement for critical network traffic

Control

• Vision Lite Control Software
• 3rd Party Control Drivers [Crestron, QSC, Symetrix, RTI, etc.]
• *API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators

Seamless Fast Switching

• Tearing free, no black screen, no frame lock

Independent Routing

• Independently route all signals with the ability to separately matrix video & Bluetooth audio (including Dante®/AES67)

HDMI 2.0 and HDCP 2.2 Compliant

Intuitive Single Button Bluetooth® Pairing with LED Status Indication

• Simple one button pairing/connect process, multiple pairing modes  – Manual (default), Auto and Private
• Pairing button can be disabled for restricted use applications with third-party control systems
• LED “off mode

Balanced Audio Line Output on Rear Panel

• A rear-panel euro terminal block provides a stereo balanced audio output from Dante™ or de-embedded from HDMI.
  This output can feed a variety of local devices to provide a specific line level output to users, or it may be used to directly feed an audio power amplifier in the associated audio zone.

Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built in Al

• Visionary’s highly efficient video compression codec is a modified full frame encoding that dynamically optimizes for fine lines (computer generated graphics) or motion video by using sophisticated Al to analyze the input source content. Actively matching the level of compression to a scene by leveraging periods of low motion video content reduces the stream’s size and enhances performance – enabling, without compromising image quality, Visually Lossless transmission of computer generated graphics or full-motion video sources.
• Adjustable Video Bitrate: (50 – 200 Mbps or Auto [800Mbps max])

Enterprise Level Security -AES Encryption, 802.1x, HTTPS, SSH

• Enterprise applications demand a secure Network AV solution
  • AES Stream Encryption – The Advanced Encryption Standard, or AES, is a worldwide standard and was adopted as the standard encryption algorithm by the U.S. government for encrypting classified information
  • HTTPS Secure API – Using secure SSL/TLS communications
    HIPS provides integrity that a client is communicating with the real API and receiving back authentic data.
    It also ensures privacy for applications and users using the API
  • 802.1x Authentication for Network access control – 802.1X provides a secure authentication mechanism for any device trying to access a network
  • SSH Network Protocol – SSH is a network protocol used to remotely access and manage a device through command line communications. The key difference between Telnet (used by other AV over IP manufacturers) and SSH is that SSH uses encryption, which means that all data transmitted over a network is secure

Specs
