Tannoy Wood Back Can Kit for PCI 7DC IW In-Wall Loudspeakers - TA-PCI 7DC IW BC
Tannoy Wood Back Can Kit for PCI 7DC IW In-Wall Loudspeakers - TA-PCI 7DC IW BC is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy Wood Back Can Kit for PCI 7DC IW In-Wall Loudspeakers - TA-P...
Description
Accessories Steel Back Can Kit for PCI 7DC IW

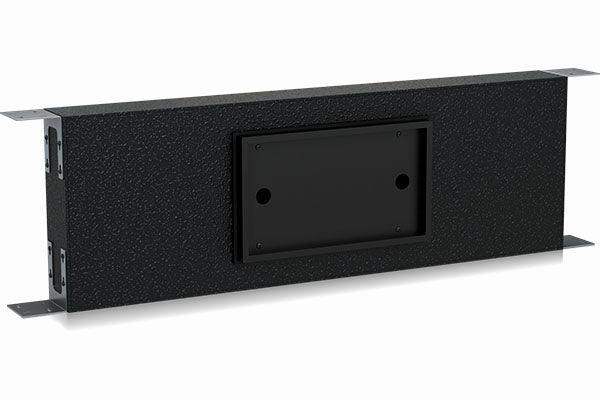

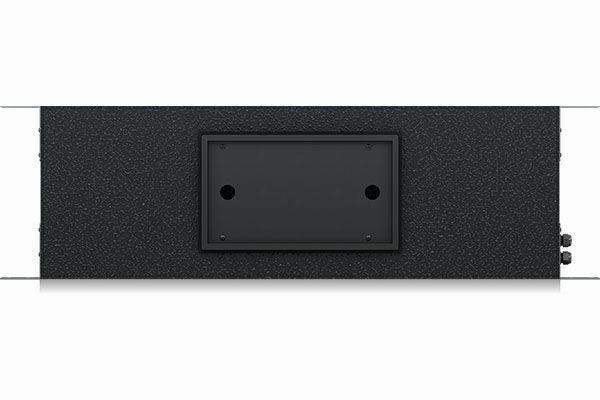

The PCI 7DC IW Back Can is an acoustically enhanced wood back can designed for the pre-installation of PCI 7DC IW wall-mount loudspeakers. Early installation of the low profile back can is fast and simple and significantly reduces the amount of time required for project finalisation. Two cable glands mounted on the side of the back can are provided for input and link output.
Features
-
Wood backcan installation kit for PCI 7DC IW in-wall loudspeakers
-
Secures optimum position and working space of the loudspeaker during construction pre-installation
-
Improves sound insulation to adjoining rooms
-
Includes positioning aid, place-holder rings, back can, cabling tube
-
Tannoy - Over 90 years of British sound heritage and innovation
Specifications
Performance
| Frequencyresponse ( ± 3dB) |
50 Hz – 20 kHz |
| Frequencyresponse(-10dB) |
30 Hz – 20 kHz |
| Sensitivity(1 W @ 1m) |
86dB |
| Directivityfactor (Q) |
4.4averaged 1 kHz to10 kHz |
| Directivityindex(D I) |
6.4averaged 1 kHz to10 kHz |
Power handling (I EC)
| Average |
80 W |
| Programme |
160 W |
| Peak |
320 W |
| Recommendedamp lifierpower |
240 W @ 8 Ω |
| Nominal Impedance(LoZ) |
8 Ω |
| Rated maximum SPL(1 m,LoZ) |
108dB |
| Average |
105dB |
| Peak |
111dB |
| Crossoverpoint |
1.6 k H z |
Coverage angles
| 500 Hz |
180° horizontal ,152° vertical |
| 1 kHz |
132° horizontal ,136° vertical |
| 2 kHz |
118° horizontal ,130° vertical |
Transducers
| Low frequency diameter/material/type |
201 mm ( 7") |
| High frequency diameter/material/type |
25.4 mm (1") |
Physical
| Back can |
Wood, with spraypainting |
| Baffle |
Reflex loaded UL94 V-0rated ABS |
| Grille |
Steel ,with weather resistant coating |
| Stee l , with weather resistant coating | |
| Safety features |
--- |
| Clamping design |
--- |
| Connectors |
Replacement Plug Housing |
| Dimensions ( HxWxD) |
1202 x347 x128 mm (4 7.3 x13.7 x5.0") |
| Bezel dimensions |
410 x248 mm(16.1 x9.8") |
| Mounting depth |
101 mm (4.0") |
| Hole cutout dimensions |
395x231 mm (15.6x9.1") |
| Net weight |
13.5kg(29.8 lbs) |
| Packed quantity |
1 |
| Included accessories |
Grille,paint mask, tool kit, screws (x4), spring washers (x4), plain washer (x4) |
| Optional accessories |
BACK CAN PCI 7DC IW |
