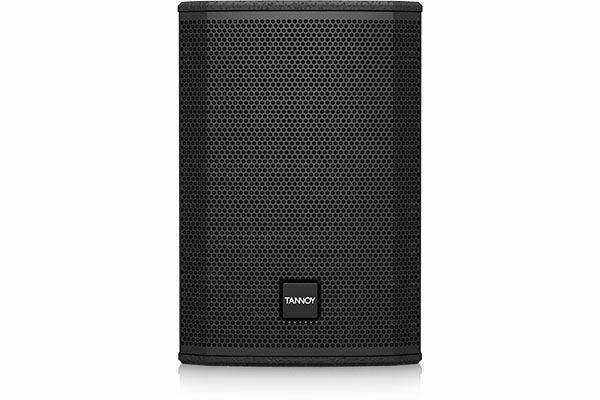

Tannoy VX 6 Dual Concentric Full Range Loudspeaker (Pair,Black) - TA-VX6-BK

Name: Tannoy VX 6 Dual Concentric Full Range Loudspeaker (Pair,Black) - TA-VX6-BK
Brand: Tannoy
SKU: TA-VX6-BK
Price: 778.00 USD
Availability: InStock

$778.00

Shipping calculated at checkout.

Tannoy | SKU: TA-VX6-BK

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

VX 6

Sold as a pair, The VX 6 may be one of the smaller Dual Concentric full range loudspeakers in the VX range, but it boasts an exceptional performance-to-size ratio. VX 6 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VX 6 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

Features

Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
100 Watts continuous, 400 Watts peak power
6" Dual Concentric full range driver for point source phase coherence
Precise 90° dispersion for optimum coverage and forward projection
Ideal for FOH, floor monitor, delay and stage front fill applications
Vented and internally braced plywood enclosure
Finished with hard wearing semi matt black paint
Rugged powder coated perforated steel mesh grille
Blanking plate for optional VTH pole mount
Optional horizontal mounting yoke (available separately)
Neutrik speakON* NL4 and barrier strip connectors for input and link output
10-Year Warranty Program*
Designed and engineered in the U.K.

System

Frequency response (Full range mode)	92 Hz - 35 kHz ±3 dB 80 Hz - 45 kHz -10 dB
Nominal dispersion	90° conical @ -6 dB point
Directivity factor (Q)	5.6
Directivity index (DI)	7
Power handling (IEC)
Passive	100 W continuous, 400 W
Bi-amp	-
Sensitivity	91 dB (1 W @ 1 m))
Maximum SPL
Passive	111 dB continuous, 117 dB peak
Bi-amp	-
Impedance
Passive	8 Ω
Bi-amp	-
Crossover Type	Passive / Bi-amp switchable
Components	1 x 6" (150 mm) constant directivity PowerDual

Enclosure

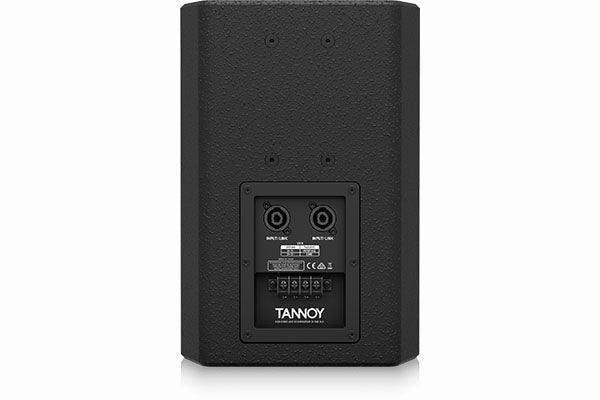

Connectors	2x Neutrik speakON* NL4 1 x barrier strip terminals
Wiring
Passive	Pins 1+ / 1- Input, Pins 2+ / 2- Link
Bi-Amp	-
Dimensions H x W x D	334 x 226 x 216 mm (13.1 x 8.9 x 8.5")
Net weight	5.0 kg (11.0 lbs)
Construction	12 mm (1/2") plywood, vented and internally braced
Finish	Semi matt black paint (white optional)
Grille	Powder coated perforated steel
Flying hardware	M6 x 2 yoke bracket insert (4 mm allen key) M6 x 4 inserts Compatible with industry standard brackets Blanking plate for optional VTH pole mount

Accessories

Multi Angle Wall Mount<br/>Multi Angle Wall Mount-WH<br/>Yoke Horizontal VX 5.2/VX 6<br/>Yoke Horizontal VX 5.2/VX 6 - WH<br/>VTH Top Hat
