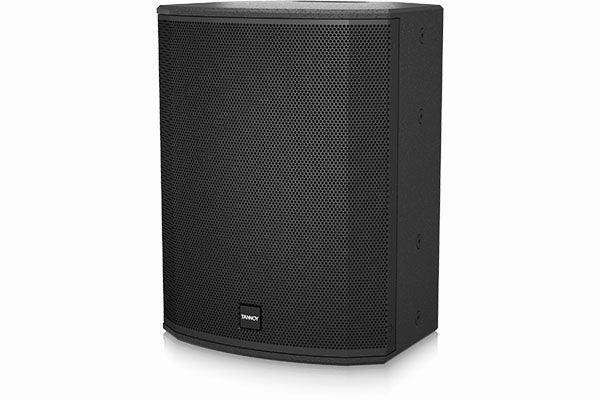

Tannoy VX 12Q PowerDual Full Range Loudspeaker (Black) - TA-VX12Q-BK
Tannoy VX 12Q PowerDual Full Range Loudspeaker (Black) - TA-VX12Q-BK is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy VX 12Q PowerDual Full Range Loudspeaker (Black) - TA-VX12Q-BK
VX 12Q
The VX 12Q is a new class of device that delivers high SPL, low distortion audio coverage in a complete high performance loudspeaker cabinet. It provides a high impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for midscale portable/live PA applications. Thanks to its twin driver design for extended low frequency reproduction and flexible mounting options, the VX 12Q is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 12Q can also be configured for bi-amp operation.
Features
-
Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
-
350 Watts continuous, 1,400 Watts peak power
-
12" PowerDual full range driver for point source phase coherence
-
Q-Centric waveguide for tighter vertical or horizontal pattern control
-
Precise 75° H x 40° V dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor and side fill applications
-
Configurable for bi-amp operation
-
Vented and internally braced plywood enclosure
-
Finished with hard wearing semi matt black paint
-
Rugged powder coated perforated steel mesh grille
-
Blanking plate for optional VTH pole mount
-
Optional horizontal and vertical mounting yokes (available separately)
-
Integrip handles ergonomically integrated into top and bottom of cabinet
-

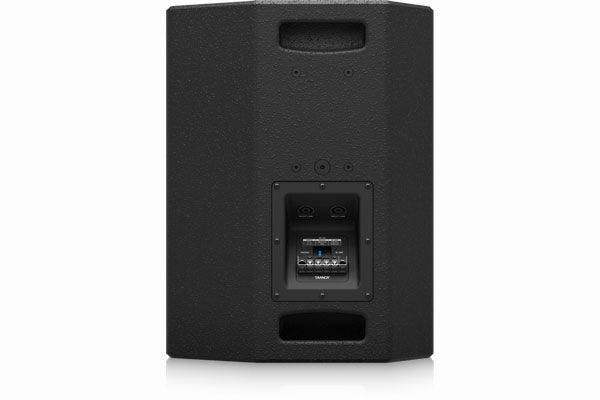

Neutrik speakON* NL4 and barrier strip connectors for input and link output
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Performance
| Frequency Response (-3 dB) 1) |
80 Hz Ð 25 Hz |
| Frequency Range (-10 dB) 1 |
60 Hz Ð 30 kHz |
System Sensitivity (1 W @1 m) 2)
| Passive - Full Range |
97 dB (1W = 2.83 V for 8 ohms) |
| Biamp (LF) |
98 dB |
| Biamp (LF) |
108 dB |
| Dispersion (degrees conical) |
75 degrees (H) x 40 degrees (V) |
| Driver Complement |
1 x 305 mm (12.00Ó) PowerDual™ with Q-Centric waveguide |
| Crossover |
Passive 1.5 kHz Product can be reconfigured for bi-amped operation. Bi-amp system parameters in Operation Manual |
| Directivity Factor (Q) |
13.0 (averaged 1 kHz to 8 kHz) |
| Directivity Index (DI) |
11.1 (averaged 1 kHz to 8 kHz) |
Rated Maximum SPL (2)
| Passive - Full Range |
123 dB (average) 129 dB (peak) |
| Biamp (LF) |
124 dB (average) 130 dB (peak) |
| Biamp (HF) |
127 dB (average) 132 dB (peak) |
Power Handling
| Passive - Full Range |
Average: 350 W Programme: 700 W Peak: 1400 W |
| Biamp (LF) |
Average: 350 W Programme: 700 W Peak: 1400 W |
| Biamp (HF) |
Average: 80 W Programme: 160 W Peak: 320 W |
Recommended Amplifier Power
| Passive - Full Range |
700 W @ 8 ohms |
| Biamp (LF) |
700 W @ 8 ohms |
| Biamp (HF) |
160 W @ 8 ohms |
| Nominal Impedance |
8 ohms |
Distortion
| 10% Full Power (10.2 V) |
2nd Harmonic 3rd Harmonic |
| 250 Hz |
0.72% 0.17% |
| 1 kHz |
0.57% 0.76% |
| 10 kHz |
5.11% 0.08% |
Distortion
| 10% Full Power (10.2 V) |
2nd Harmonic 3rd Harmonic |
| 250 Hz |
0.16% 0.19% |
| 1 kHz |
0.18% 0.49% |
| 10 kHz |
1.63% 0.08% |
Construction
| Enclosure |
36.07 litre, 15 mm (enclosure) and 18 mm (front) birch plywood, vented and internally braced |
| Finish |
Textured black or white paint, with custom colours on request. Powder coated perforated steel grille Airnet cloth behind |
| Connectors |
2 x speakON NL4MP and Barrier strip |
| Fittings |
8 x M10 Flying inserts (portrait or landscape mounting), 8 x M10 yoke bracket inserts, 2 x Integrip carrying handles, Blanking plate for optional VTH pole mount, Fixings compatible with PowerdriveTM style brackets, 4 x M6 inserts |
| Dimensions (H x W x D) |
W: 370 mm ( 14.6Ó), H: 486 mm (19.1Ó), D: 360 mm (14.1Ó) |
| Net Weight |
21.0 kg (46.3 lbs) |
| Shipped Weight |
23.0 kg (50.7 lbs) |
| Packed Quantity |
1 |
