Tannoy SAT SUB Compact Wall-Mount Subwoofer (Black) - TA-SAT-SUB-BK
Description

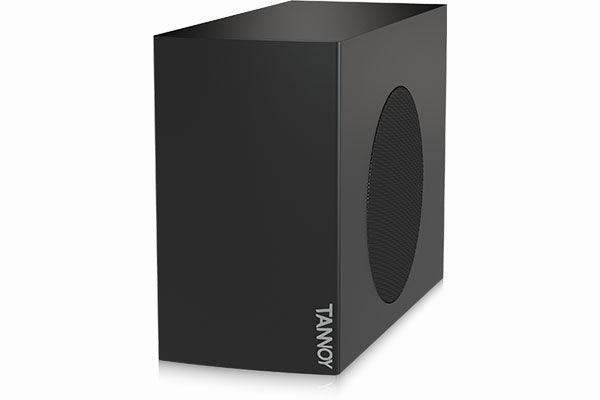

SAT SUB
Slimline 6.5" subwoofer for use in commercial background and foreground music applications. The subwoofer reproduces low frequencies below 400Hz and includes connections for the SAT 3 satellite loudspeakers (available separately). Wall bracket included. This product range is ideal for both background and foreground music in bars, restaurants and shops.
Features
-
Slimline 6.5" subwoofer
-
Integrated crossover and terminals for 2 or 4 satellite speakers
-
80 Watts continuous, 100 Watts peak power
-
45 Hz - 400 Hz bandwidth
-
Built-in transformer for 70/100 V operation
-
Matte black finish with cloth covered grille
Performance
| Frequency response (-10 dB) |
Frequency response (-10 dB) |
| Sensitivity 1 W/ 1m |
93 dB |
| Power handling | |
| Average |
80 W |
| Programme |
120 W |
| Recommended amplifier power |
120 W @ 8 Ω |
| Nominal Impedance |
8 Ω |
| Maximum SPL @1 m |
116 dB |
| Transformer taps |
100V: 20, 40, 80, 8 LoZ, 70V: 10, 20, 40, 80, 8 LoZ |
| Crossover point |
200 Hz |
Transducers
| Diameter/material/type |
1 x 165 mm (6.5") Paper |
Physical
| Enclosure material |
MDF |
| Grille material |
Steel |

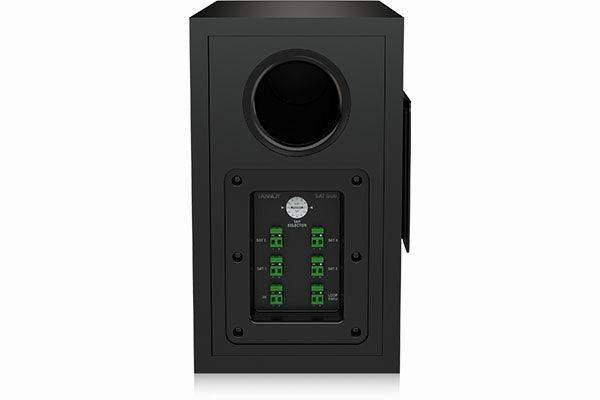

| Connectors |
Phoenix Contact terminal block x 6 |
| Dimensions (HxWxD) |
175 x 413 x 300 mm (speaker only, no bracket included) |
| Net weight |
10.7 kg 23.5 lbs) (bracket included) |
| Included accessories |
wall mount bracket, 4x rubber feet, and paper positioning template |
