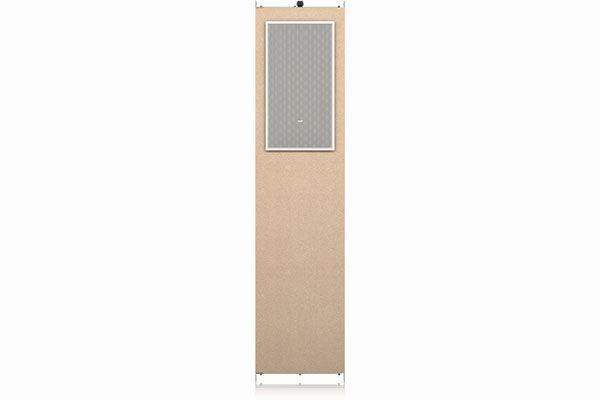

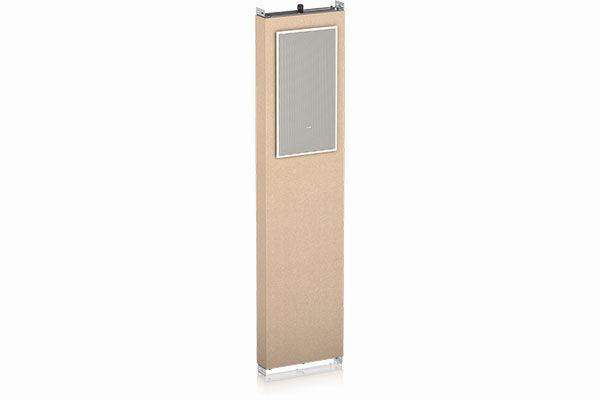

Tannoy PCI SUB IW with BACK CAN Premium Dual 8 In-Wall Subwoofer - TA-PCI SUB IW/BC
Tannoy PCI SUB IW with BACK CAN Premium Dual 8 In-Wall Subwoofer - TA-PCI SUB IW/BC is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy PCI SUB IW with BACK CAN Premium Dual 8 In-Wall Subwoofer - ...
Description
Studio Sound at Home
Designed to fit seamlessly into your world, the new Tannoy PCI series is the perfect premium loudspeaker for modern living. Discover a beautiful blend of innovative technology combined with sophisticated good looks that will match any décor. State of the art driver materials and Tannoy’s Unique Dual Concentric driver technology combine to deliver music and film that is breathtakingly realistic and with phenomenal clarity.
The PCI Range is designed with the same exacting standards as our flagship hi-fi and professional loudspeakers.
Features
-
Premium, high-definition subwoofer for in-wall installation applications
-
Dual 8" woofers with rigid cones for clean, clear and dynamic bass
-
High-excursion and high power handling
-
Rigid diecast chassis for improved bass performance and durable application
-
200 Watts continuous, 800 Watts peak power
-
Extremely thin bezel for discreet installation, with wooden pre-install back can kit included
-
Integrated single unit chassis construction for easy installation
-
Semi matt white finish fits unobtrusively in any environment
-
Powder coated UV resistant perforated steel mesh grille with dust protection
-
Removable grille for custom painting
-
Self-aligning clamp mounting system
-
Removable Tannoy grille badge
-
Tannoy - Over 90 years of British sound heritage and innovation
Specifications
Performance
| Frequency response (±3 dB) |
100 Hz – 2 kHz |
| Frequency response (-10 dB) |
45 Hz – 2.3 kHz |
| Sensitivity (1 W @ 1m) |
90 dB |
Power Handling (IEC)
| Average |
200 W |
| Programme |
400 W |
| Peak |
800 W |
| Recommended amplifier power |
600 W @ 8 Ω |
| Nominal Impedance (Lo Z) |
8 Ω |
| Rated maximum SPL (1 m, Lo Z) |
116 dB |
| Average |
113 dB |
| Peak |
119 dB |
| Crossover point |
NA |
Transducers
| Low frequency diameter/material/type |
2 x 219 mm (8") |
Physical

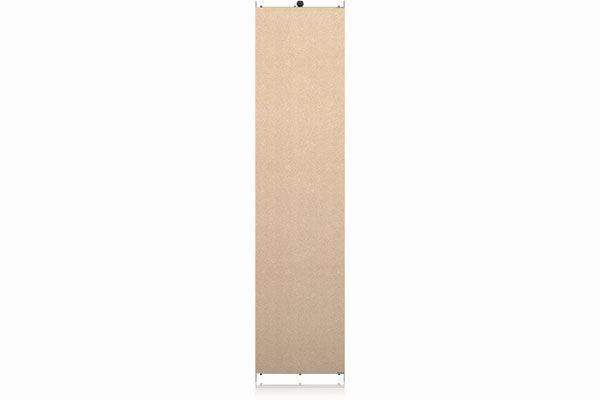

| Back can |
BACK CAN PCI SUB IW Wood |
| Baffle |
Reflex loaded UL94 V-0 rated ABS |
| Grille |
Steel, with weather resistant coating |
| Clamping design |
Security toggle clamp |
| Connectors |
Phoenix Contact terminal block |
| Dimensions (H x W x D) |
1465 x 345 x 113 mm (57.7 x 13.6 x 4.5") |
| Bezel dimensions |
495.6 x 264.5 mm (19.5 x 10.4") |
| Mounting depth |
93.1 mm (3.7") |
| Hole cutout dimensions |
482,5 x 252,5 mm (19 x 9.94") |
| Net weight |
16.9 kg (37.2 lbs) |
| Packed quantity | |
| Included accessories |
PCI SUB IW: Grille, paint mask, cutout template. BACK CAN PCI SUB IW: washers (x12), screws (x12), bracket (x4), cable clamp. |
| Optional accessories |
PCI SUB IW and Back Can PCI SUB IW are also available separately |
