Tannoy PCI 5DC IW Premium 5" Dual Concentric In-Wall Loudspeaker - TA-PCI 5DC IW
Tannoy PCI 5DC IW Premium 5" Dual Concentric In-Wall Loudspeaker - TA-PCI 5DC IW is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy PCI 5DC IW Premium 5" Dual Concentric In-Wall Loudspeak...
Description
Studio Sound at Home
Designed to fit seamlessly into your world, the new Tannoy PCI series is the perfect premium loudspeaker for modern living. Discover a beautiful blend of innovative technology combined with sophisticated good looks that will match any décor. State of the art driver materials and Tannoy’s Unique Dual Concentric driver technology combine to deliver music and film that is breathtakingly realistic and with phenomenal clarity.
Features
-
Premium, high-definition loudspeaker for in-wall installation applications
-
5" Dual Concentric driver featuring TANNOY point-source constant directivity
-
Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage unachievable with discrete, two-way designs
-
Blue Kevlar* cone with high-excursion, rubber surround for high power handling
-
3-way variable high-frequency level switch for customised performance preferences
-
60 Watts continuous, 240 Watts peak power
-
Extremely thin bezel for discreet installation
-
Rigid diecast chassis for improved bass performance and durable application
-
Integrated single unit construction for easy installation
-
Semi matt white finish fits unobtrusively in any environment
-
Powder coated UV resistant perforated steel mesh grille with dust protection
-

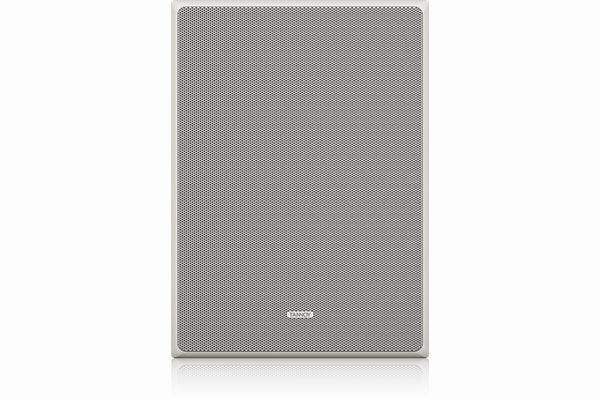

Removable grille for custom painting
-
Self-aligning clamp mounting system
-
Removable TANNOY grille badge
-
Tannoy - Over 90 years of British sound heritage and innovation
Specifications
Performance
| Frequencyresponse(±3dB) |
50 Hz – 20kHz |
| Frequencyresponse(-10dB) |
30 Hz – 20kHz |
| Sensitivity(1W @ 1m) |
85dB |
| Directivityfactor (Q) |
4.2averaged1kHz to10kHz |
| Directivity index (DI) |
6.2averaged1kHz to10kHz |
Power handling (IEC)
| Average |
60W |
| Programme |
120W |
| Peak |
240W |
| Recommended amplifier power |
180W @ 8 Ω |
| Nominal Impedance (Lo Z) |
8 Ω |
| Rated maximum SPL(1 m,Lo Z |
106 dB |
| Average |
103dB |
| Peak |
109dB |
| Crossover point |
1.6kHz |
Coverage angles
| 500 Hz |
180° horizontal,161° vertical |
| 1kHz |
156° horizontal,164° vertical |
| 2kHz |
131° horizontal,143° vertical |
| 4kHz |
107° horizontal,89° vertical |
Transducers
| Low frequency diameter/material/type |
128 mm (5") |
| High frequency diameter/material/type |
20.4 mm (0.8”) |
Physical
| Back can |
Option 1: BACK CAN IW:Steel,powder coating |
| Baffle |
Reflex loaded UL94 V-0rated ABS |
| Grille |
Steel, with weather resistant coating |
| Safety features |
N/A |
| Clamping design |
Security toggle clamp |
| Connectors |
PhoenixContact terminal block |
| Dimensions (HxWxD) |
264x191x102 mm (10.4x 7.5x4.0") |
| Bezel dimensions |
Square:264.2x190.5 mm (10.4x 7.5") |
| Mounting depth |
91.7 mm (3.6") |
| Hole cutout dimensions |
248x173 mm (9.8x6.8") |
| Net weight |
1.7 kg(3.7 lbs) |
| Packed quantity |
1 |
| Included accessories |
Grille,paint mask, cutout template |
| Optional accessories |
Option 1: BACK CAN IW Option 2:PMK 5 IW |
