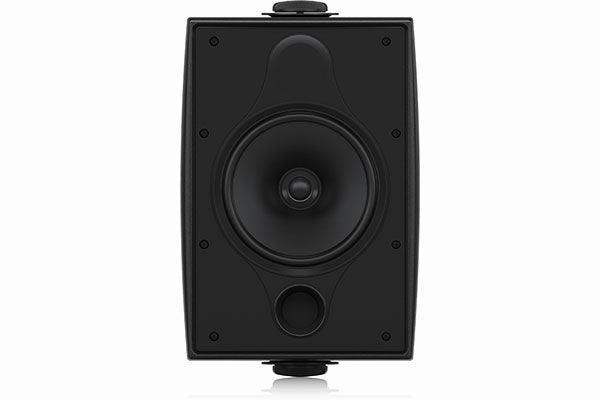

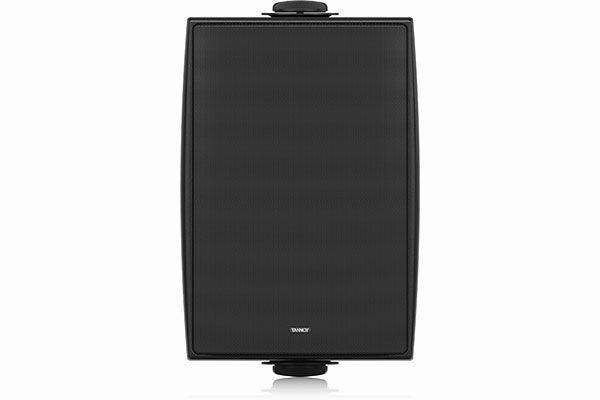

Tannoy DVS 6T 6" Coaxial Surface-Mount Loudspeaker with Transformer (Black,Pair) - TA-DVS6T-BK
Tannoy DVS 6T 6" Coaxial Surface-Mount Loudspeaker with Transformer (Black,Pair) - TA-DVS6T-BK is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy DVS 6T 6" Coaxial Surface-Mount Loudspeaker with Transf...
Description
(Sold as a pair)
DVS 6T
Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6T is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 6T is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship
Features
-
Full range surface-mount loudspeaker for indoor and outdoor installation applications
-
60 Watts continuous, 240 Watts peak power
-
6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
-
0.75" ferrofluid cooled soft dome neodymium high frequency driver
-
90° constant directivity dispersion for optimum coverage
-
UL 1480 certified for general signalling systems
-
UV and weather resistant UL 94 V-0 ABS enclosure
-
Multiple transformer taps for 70 V and 100 V line systems
-
Low insertion loss 60 W line transformer with easily accessible tapping switch
-
All components weather resistant to IP64 for outdoor use
-
Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment
-
Painted perforated aluminium mesh grille with dust protection
-

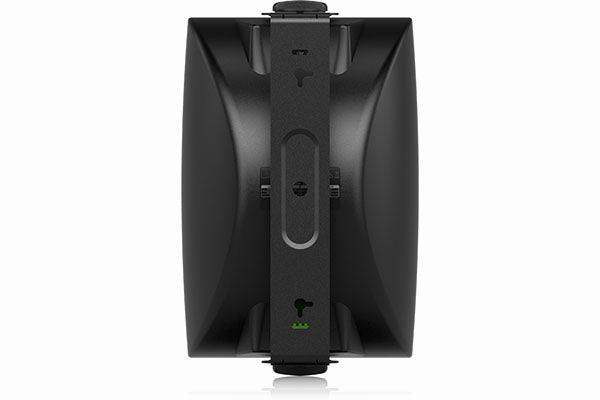

Yoke bracket included for ease of installation
-
Phoenix* connectors input and link output
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Specifications
Performance
| Frequency response (-3 dB)<sup>1</sup> |
80 Hz - 20 kHz |
| Frequency response (-10 dB)<sup>1</sup> |
65 Hz - 30k Hz |
| System sensitivity (1 W @ 1 m)<sup>2</sup> |
88 dB |
| Dispersion (-6 dB) |
90 degrees conical |
| Transducers |
Coaxial |
| Low frequency |
165mm (6.5") mineral loaded cone material |
| High frequency |
20 mm (0.79) |
| Crossover |
4.3 kHz - 2nd order LF, 2nd order HF |
| Directivity (Q) |
10.6 averaged 1 kHz to 10 kHz |
| Directivity (DI) |
9.6 averaged 1 kHz to 10 kHz |
| Rated maximum SPL <sup>2</sup> |
105 dB (average) |
Transformer Version
| Transformer taps | |
| Maximum wire gauge for connector |
2.5 mm CSA (AWG12) |
| Safety Agency Ratings |
UL-1480, CE |
Power Handling
| Average |
60 W |
| Programme |
120 W |
| Peak |
240 W |
| Recommended amplifier power |
120 W @ 6 Ohms |
| Nominal impedance |
6 Ohms |
| Construction | |
| Enclosure |
ABS |
| Grille |
Aluminium, painted |
| Connectors |
Euroblock type removable locking connector with screw terminals with “loop through” facility |
| Supplied accessories |
Yoke bracket |
| Packed quantity |
2 |
| Dimensions (H x W x D) |
340.5 x 212.2 x 216.5 mm |
