Description
(Sold as a pair)
CMS 3.0 CMS 503DC PI
The CMS 503DC PI is a full bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" Dual Concentric point source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 503DC PI delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.
Features
-
Full range ceiling loudspeaker for installation applications
-
60 Watts continuous, 240 Watts peak power
-

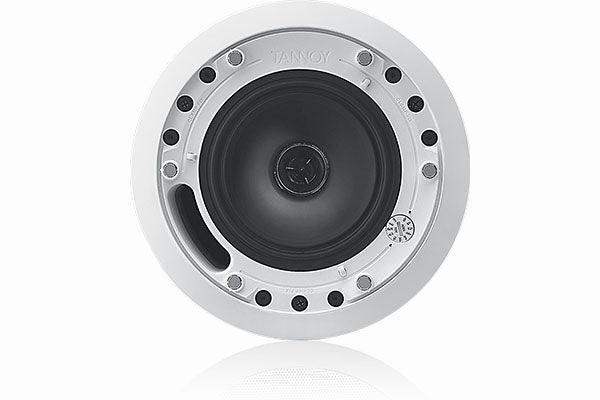

Next generation 5" Dual Concentric driver featuring Omnimagnet technology
-
Torus Ogive waveguide for improved high frequency response and directivity
-

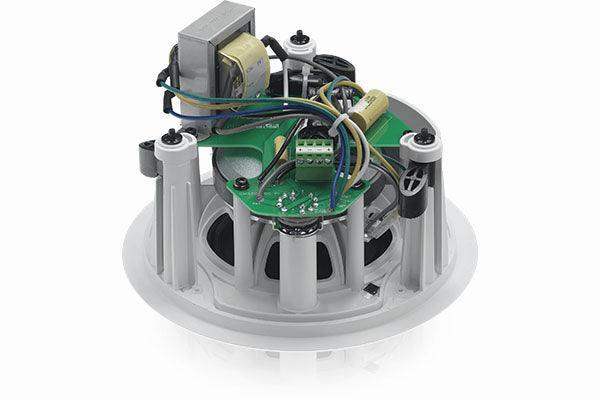

Pre-install version supplied without back can (available separately)
-
UL 1480 certified for general signalling systems
-
UL 2043 certified for air-handling spaces
-
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
-
Low insertion loss 30 W line transformer with easily accessible tapping switch
-
Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
-

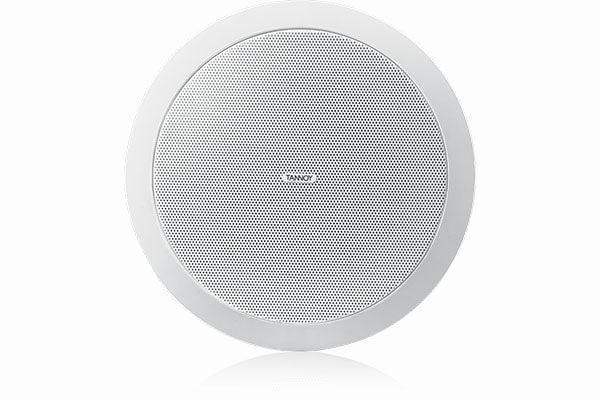

Semi matt white finish fits unobtrusively in any environment
-
Powder coated UV resistant perforated steel mesh grille with dust protection
-
Removable magnetic grille for custom painting
-
Optional ARCO designer grilles available for minimal architectural impact
-
Self-aligning 3 way clamp mounting system
-
Mounting C-ring and ceiling tile rails included
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Specifications
Performance
| Frequency response (-3 dB) (1) |
85 Hz - 50 kHz BM Backcan |
| Frequency range (-10 dB) (1) |
74 Hz - 54 kHz BM Backcan |
| Frequency range (-10 dB) (1) |
70 Hz - 54 kHz PI Backcan |
| System sensitivity (1 W @ 1 m) (2) |
89 dB (1 W = 4 V for 16 Ohms) |
| Nominal coverage angle |
90 degrees conical |
| Power handling (3) |
Transducers
| Dual concentric point source driver |
1 x 130 mm (5.0") Dual |
| Low frequency |
35 mm (1.38") voice coil, |
| High frequency |
20 mm (0.79") PEI dome |
Physical
| Enclosure |
Safety features
Clamping design
| Backcan options |
Physical
| Dimensions |
