Soundtube SA202 Class AB Mini Amplifier with 20W per channel output at 4 Ohms.
Soundtube SA202 Class AB Mini Amplifier with 20W per channel output at 4 Ohms. is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Soundtube SA202 Class AB Mini Amplifier with 20W per channel output...

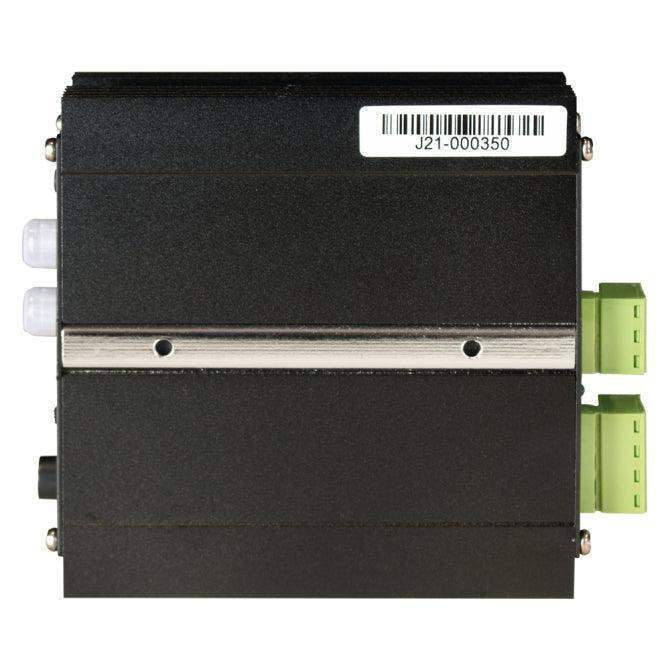

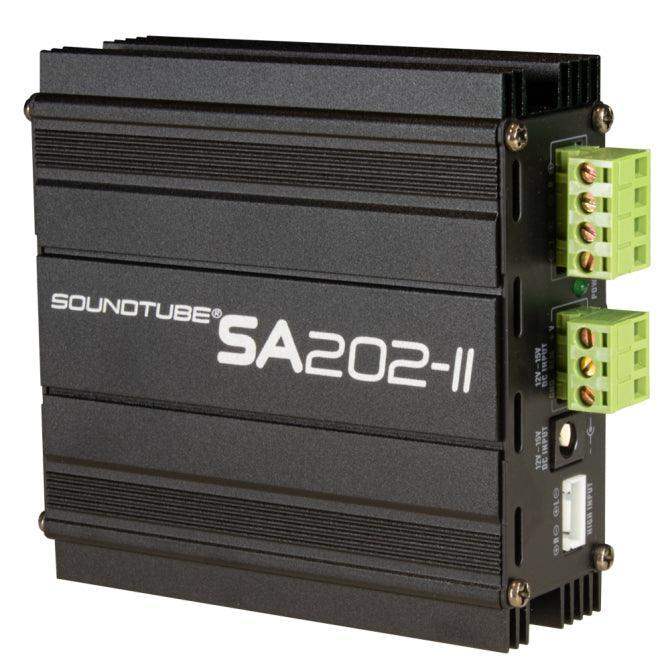

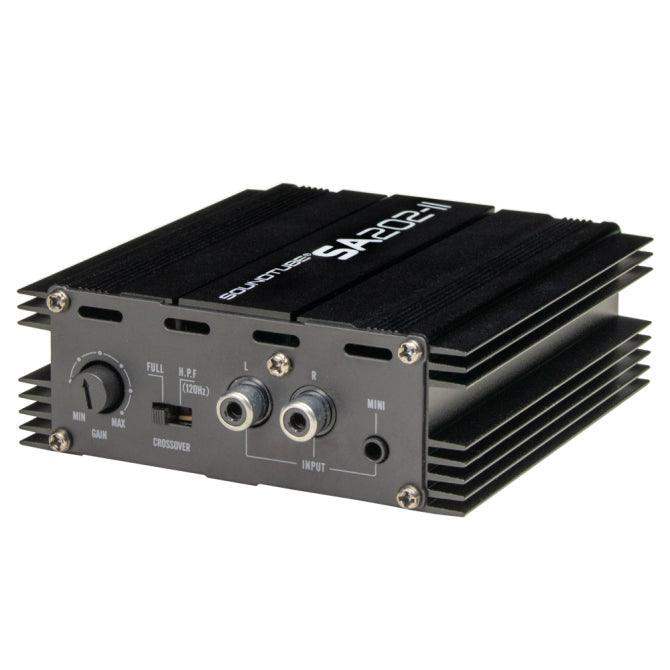

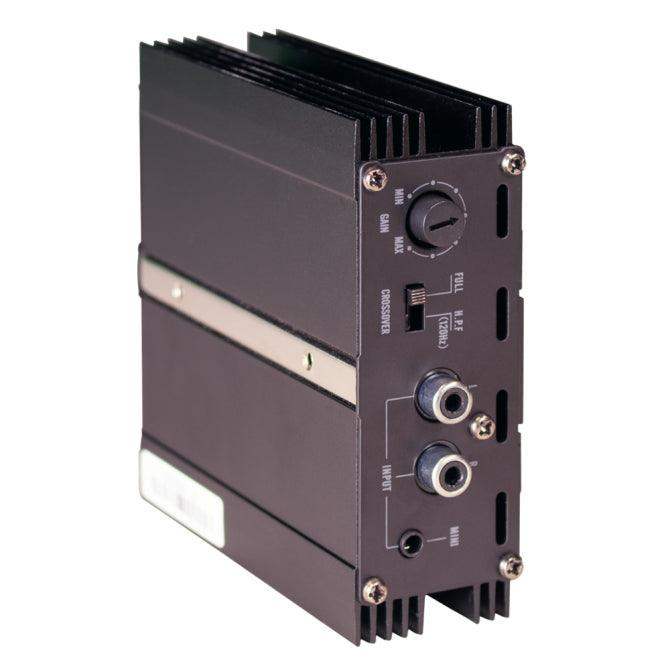

The SA202 amplifier is an ultra-compact, 2-channel amplifier with extra heat sink surfaces for extended duty at full power. Rated at 20 watts per channel output at 4 Ohms with max gain of 35 dB. Dual RCA, stereo mini jack, and high-level inputs. Power inputs include either three-pin Euroblock or barrel connector. 12-volt trigger for automatic on/off functions when source power is detected. Mounting hardware is included and adapts to pole, surface or security attachment installations.
Power per channel @ < 10 % THD: 20 watts (4 ohm stereo) 10 watts (8 ohm stereo
Power per channel @ < 1 % THD: 15 watts (4 ohm stereo) 8 watts (8 ohm stereo)
Specs
| Color | Black |
|---|---|
| UPC | 644216234509 |
| Manufacturer | SoundTube |
| Manufacturer's Category | Amplifier |
| Depth | 4.86 in / 123.44 mm |
| Height | 1.43 in / 36.2 mm |
| Width/Diameter | 3.98 in / 101.09 mm |
| Shipping Weight | 0.75 lbs / 0.34 kg |
| Carton Height | 1.75 in / 44.45 mm |
| Carton Length | 5.75 in / 146.05 mm |
| Carton Width | 4.5 in / 114.3 mm |
| Certifications | CE, RoHS |
| Included Accessories | 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Pole/Surface Mount Adapter |
| Optional Accessories | Rack Mount Adapter (AC-SA202-RMA)|Power Supply (PS1530-RDT)|UK Power Cord (AC-PSCORD-UK)|EU Power Cord (AC-PSCORD-EU)|China Power Cord (AC-PSCORD-CHINA) |
| Input Impedance | 6K Ω |
| Output Type | Euroblock |
| Voltage Gain | 35 dB |
| Frequency Response (± 3 dB) | 20 Hz - 20 kHz |
