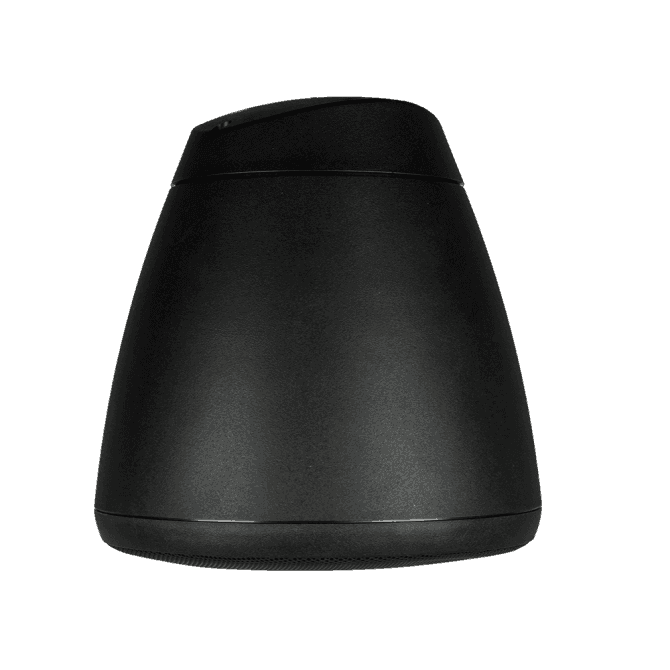

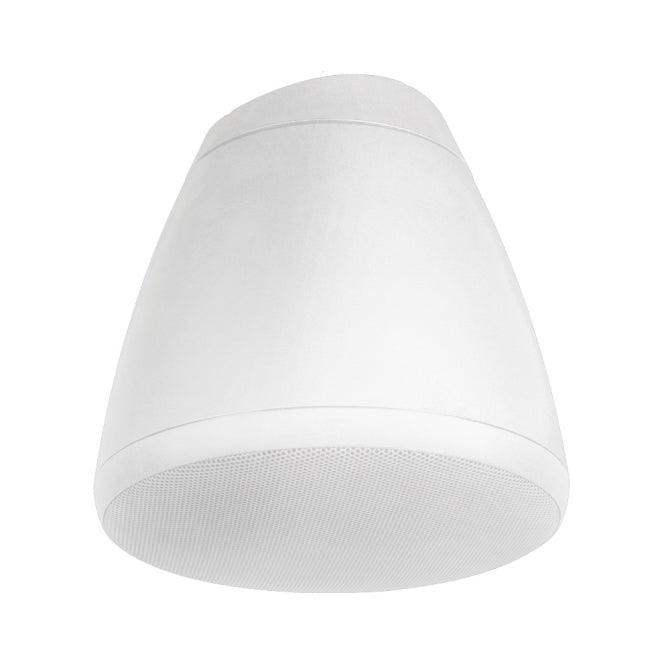

Soundtube RS62-EZ 6.5" Hanging Speaker
Designed for superior off-axis performance and easy installation, the RS62-EZ offers attractive styling in an economical speaker for open-ceiling uses. The RS62-EZ uses one 6.5 inch (165 mm) coaxial driver with BroadBeam Ring™ technology for consistently smooth high frequency sound and 16 ohm impedance for easy daisy chaining in low voltage systems. The RS62-EZ includes galvenized steel hanging cables and a built in mounting plate for suspending the speaker as well as a threaded opening on top of it®'s cover plate for direct-to-conduit mounting. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and includes an aluminum grille with protective powder coated finish. Cost effective engineering with high-performance sound makes the RS62-EZ speaker ideal for music and paging applications in retail, grocery stores, restaurants, hotels, casinos, museums, trade shows and conference rooms and is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. For applications where additional bass is required, SoundTube®'s RS1001i-II-T 10-inch subwoofer may be used. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.
Specs
| Manufacturer | SoundTube |
|---|---|
| Manufacturer's Category | RS-EZ Economical Pendant |
| Height | 10.4 in / 264.2 mm |
| Width/Diameter | 10.08 in / 256 mm |
| Shipping Weight | 9.5 lbs / 4.31 kg |
| Carton Height | 13.25 in / 336.55 mm |
| Carton Length | 12 in / 304.8 mm |
| Carton Width | 12 in / 304.8 mm |
| Certifications | CE, EN54, RoHS, UL1480A |
| Enclosure Properties | Ported, Reinforced ABS |
| Included Accessories | Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland |
| Optional Accessories | Black Grille (GRL-RS62-EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
| Source Inputs | 4 Pin Ceramic Terminal |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.6 and 7.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.5dB and 8.5dB |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 100 Hz - 22 kHz |

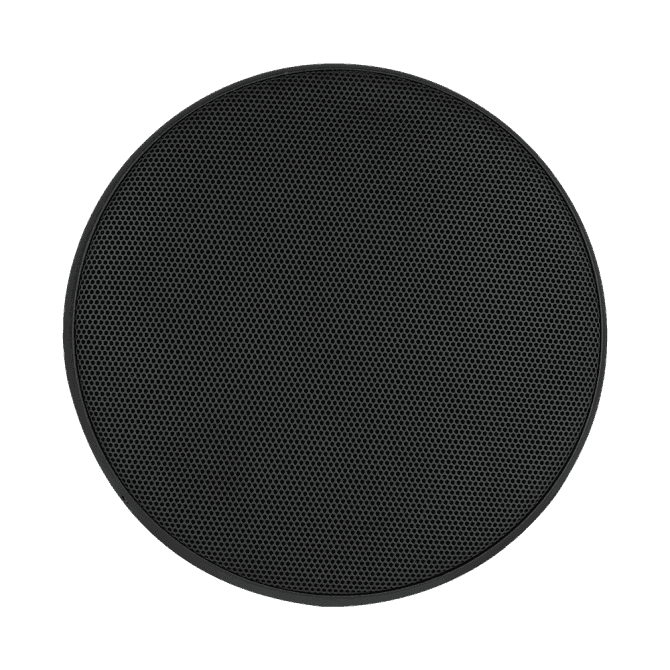

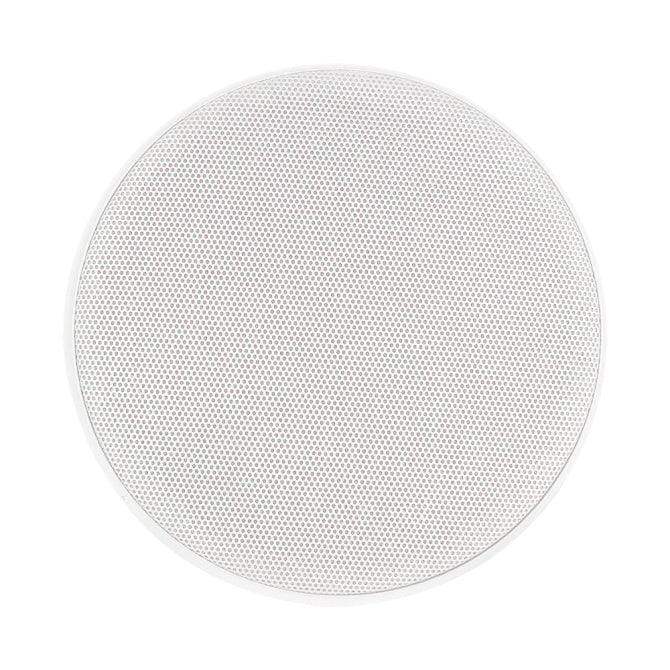

| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 32W |
| Max. Program Power | 64 W |
| Minimum Impedance (Ω Ohms) | 16 Ω |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (Ω Ohms) | 16 Ω |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring® |
| Woofer Driver | 6.5" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 91.2 dB |
| Sensitivity dB @ 2.83V/1M | 88.2 dB |

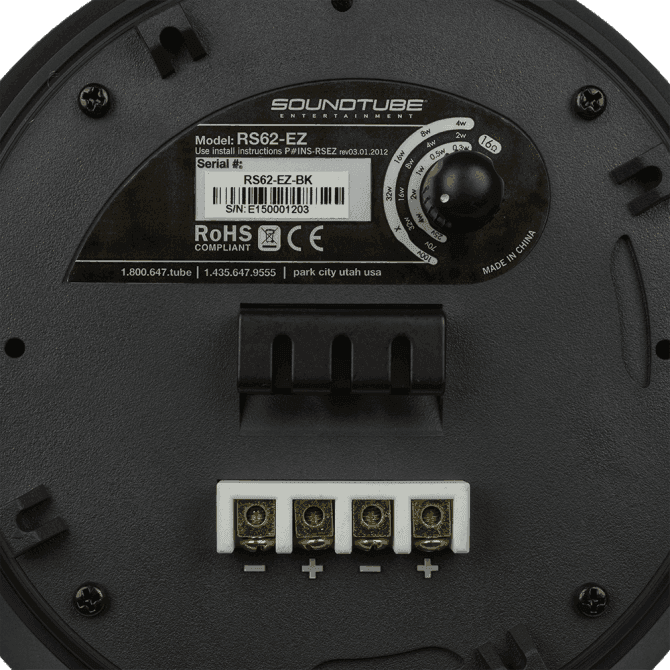

| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 16 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 4W/32W/32W |
