Soundtube RS600I 6.5" Hanging Speaker with a BroadBeam Tweeter

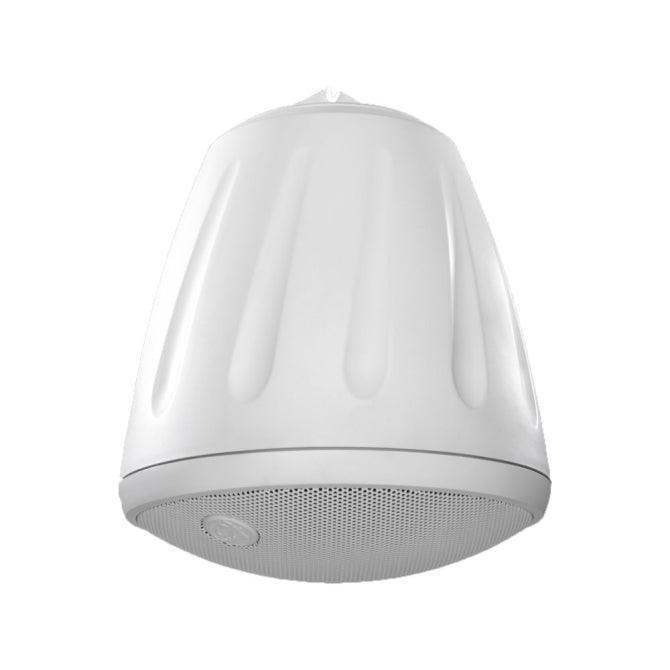

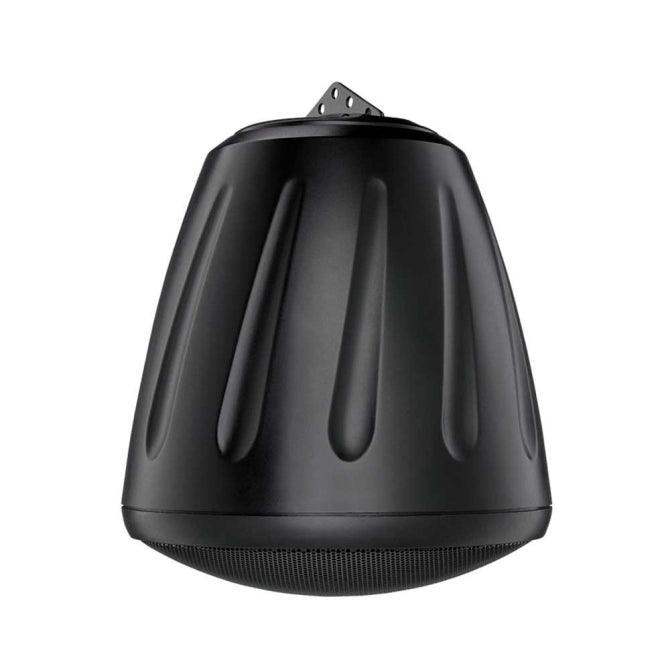

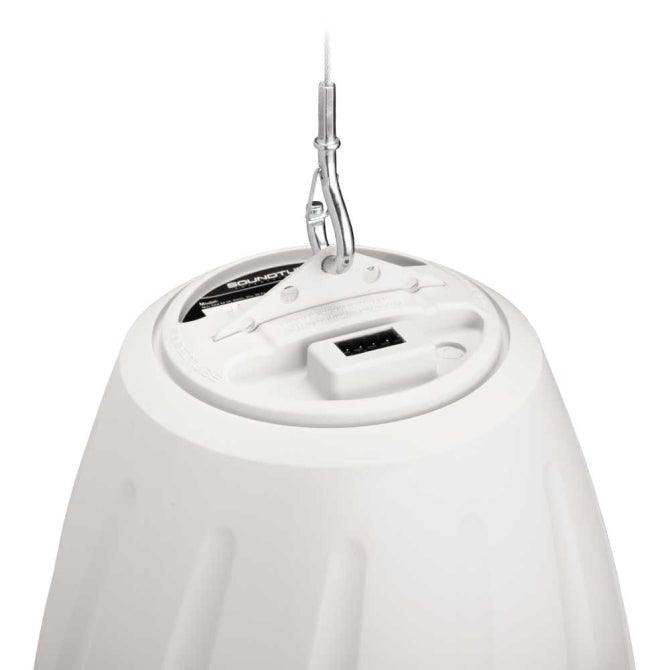

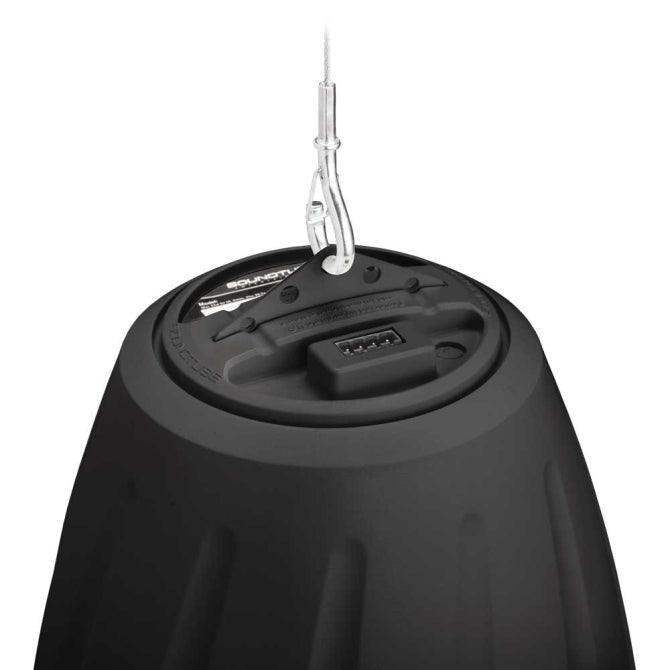

The RS600i has a 6.5-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way ported speaker with an open-ceiling enclosure design delivers effective low-end response (58 Hz) and 100° off-axis performance (2 to 10 kHz, indepen-dently verified). The RS600i uses patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. SoundTube®'s proprietary BroadBeam® waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The RS600i speaker design incorporates a low-profile grille, proprietary motor-board and a six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass positions. Hanging hardware is included and features a SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Euroblock connector and terminal weather boot are included.
Specs
| Manufacturer | SoundTube |
|---|---|
| Manufacturer's Category | RSi Original Pendant |
| Height | 14.31 in / 363.5 mm |
| Width/Diameter | 12.1 in / 307.3 mm |
| Shipping Weight | 17.7 lbs / 8.02 kg |
| Carton Height | 16.5 in / 419.1 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 15 in / 381 mm |
| Certifications | CE, MIL Spec, RoHS, UL1480A, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 686.7 cu in / 11253 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-RS600-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM6-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| Coverage Angle (±6dB @ 2kHz) | 100° |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.7 and 7.9 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.7dB and 9.0dB |
| Frequency Response (± 10 dB) | 58 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 85 Hz - 17 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 90W |
| Max. Program Power | 180 W |
| Minimum Impedance (Ω Ohms) | 4.8 Ω |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | 1" Convex Aluminum w/ BroadBeam® Waveguide |
| Woofer Driver | 6.5" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 88.5 dB |
| Sensitivity dB @ 2.83V/1M | 88.5 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/33W/33W |
