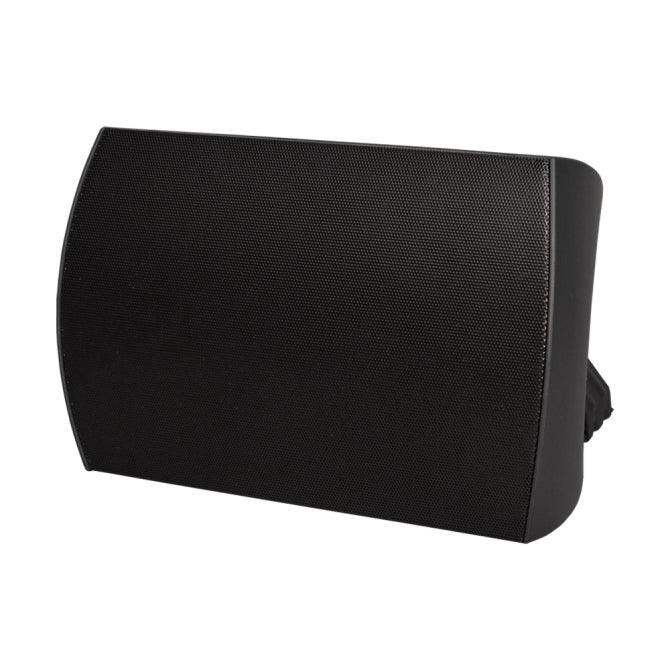

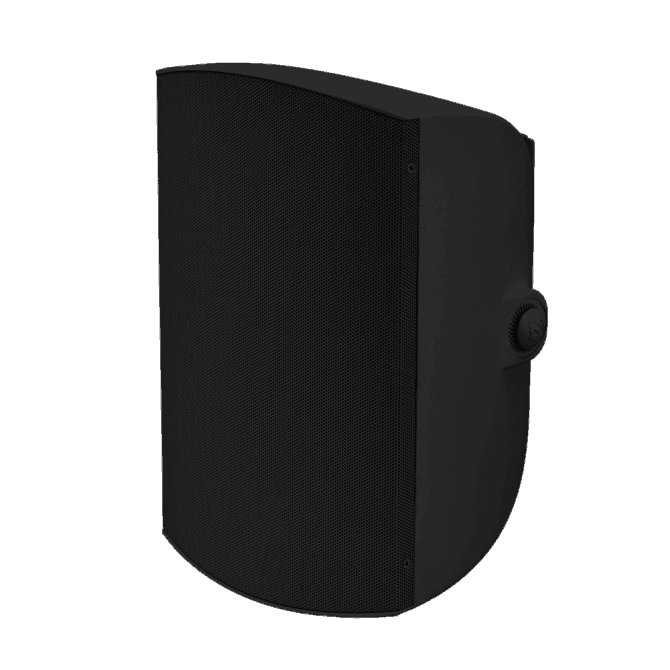

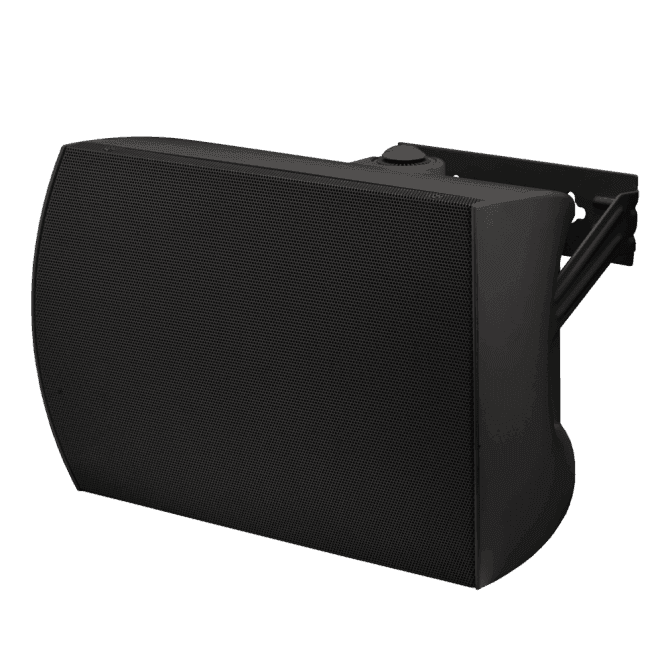

SoundTube IPD-SM82-EZ-II-WX IP-Addressable Speaker in Black
SoundTube IPD-SM82-EZ-II-WX IP-Addressable Speaker in Black
The IPD-SM82-EZ-II-WX is a Dante-enabled, weather-resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 8.0 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating: IP65. Included accessories: Safety cable, wall mount bracket, conduit connector, and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.
*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use. Also: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Specs
| Color | Black | |
|---|---|---|
| UPC |
|
|
| Manufacturer | SoundTube | |
| Manufacturer's Category | STNet IP-Addressable and Dante Series | |
| Depth | 9.88 in / 250.95 mm | |
| Height | 18 in / 457.2 mm | |
| Width/Diameter | 11.5 in / 292.1 mm | |
| Shipping Weight | 13.9 lbs / 6.3 kg | |
| Carton Height | 17 in / 431.8 mm | |
| Carton Length | 21.5 in / 546.1 mm | |
| Carton Width | 14.25 in / 361.95 mm | |
| Certifications | CE, IP65, RoHS, UL60065 | |
| Enclosure Properties | High Impact Polystyrene | |
| Included Accessories | Back Cover, Mounting Assembly, Mounting Hardware, Port Plug, Safety Cable, Weather Plug, Weatherproof Strain Relief | |
| Optional Accessories | White Grille (GRL-SM82-WH) | White Weatherboot (WEATHERBOOT-S-WH) | Port Plug (AC-SM8-PP) | |
| Source Inputs | RJ45 Ethernet Port | |
| IP Rating | IP65 | |
| Coverage Angle (±6dB @ 2kHz) | 70° Horizontal / 90° Vertical | |
| Crossover Frequency | 2.5 kHz | |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2 and 12.0 | |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.2 dB and 10.8 dB | |
| Frequency Response (± 10 dB) | 38 Hz - 20 kHz | Sealed: 50 Hz - 20 kHz | |
| Frequency Response (± 3 dB) | 50 Hz - 20 kHz | Sealed: 70 Hz - 20 kHz | |
| Grille Properties | Aluminum, Powder-Coated | |
| Low Frequency Voice Coil | 1.5 in / 38.1 mm | |
| Low Pass Crossover | 12 dB per octave, 2nd order | |
| Max SPL @ 1M | 101 dB | |
| Network Type: High Pass | 12 dB per octave, 2nd order | |
| Tweeter Driver | 1" Soft Dome | |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
