SoundTube IPD-SM82-EZ-II IP-Addressable Speaker in Black
SoundTube IPD-SM82-EZ-II IP-Addressable Speaker in Black

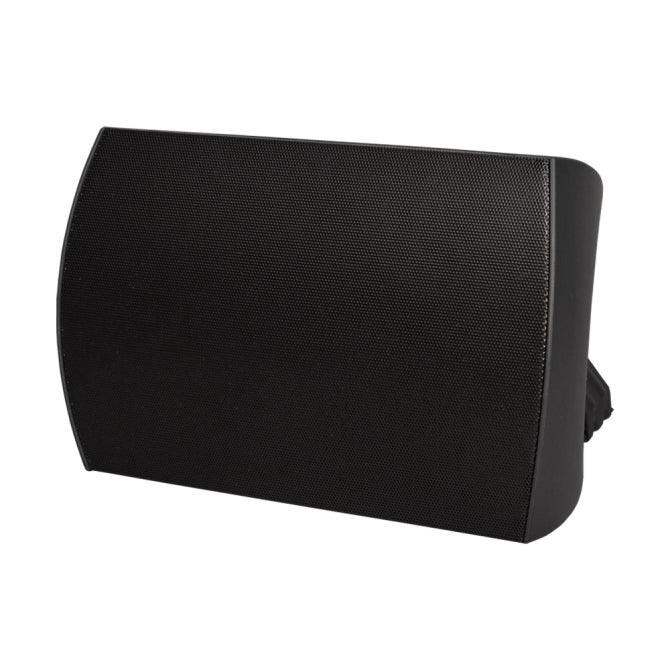

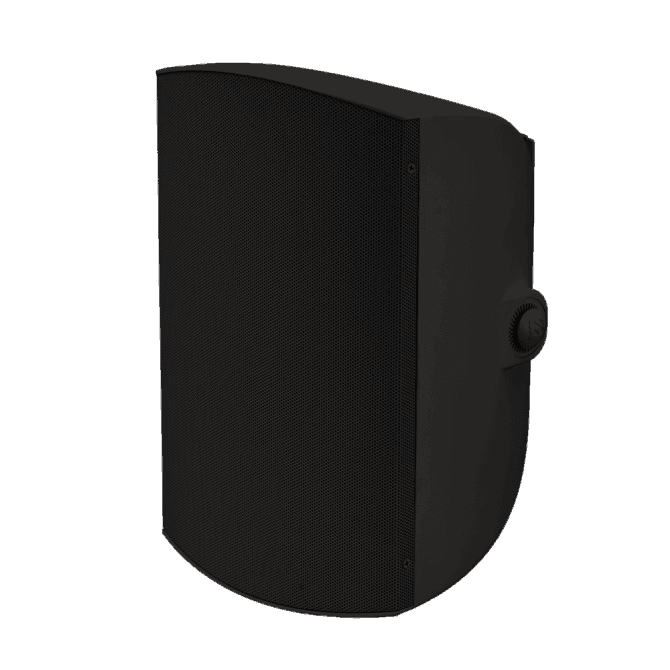

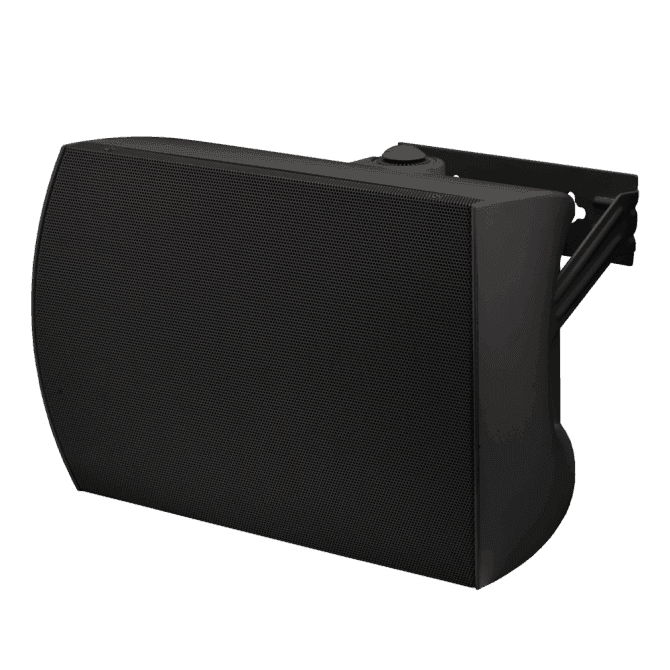

The IPD-SM82-EZ-II is a Dante-enabled, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 8.0 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. Included accessories: Safety cable, wall mount bracket, conduit connector and optional port plug.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Specs
| Color | Black |
|---|---|
| UPC | 644216220908 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Depth | 9.88 in / 250.95 mm |
| Height | 18 in / 457.2 mm |
| Width/Diameter | 11.5 in / 292.1 mm |
| Shipping Weight | 15.4 lbs / 7 kg |
| Carton Height | 17 in / 431.8 mm |
| Carton Length | 21.5 in / 546.1 mm |
| Carton Width | 14.25 in / 361.95 mm |
| Certifications | CE, IP65, RoHS, UL60065 |
| Enclosure Properties | High Impact Polystyrene |
| Included Accessories | Mounting Assembly, Mounting Hardware, Port Plug, Safety Cable |
| Optional Accessories | Black Grille (GRL-SM82-BK) | Black Weatherboot (WEATHERBOOT-S-BK) | Port Plug (AC-SM8-PP) |
| Source Inputs | RJ45 Ethernet Port |
| Coverage Angle (±6dB @ 2kHz) | 70° Horizontal / 90° Vertical |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2 and 12.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.2 and 10.8 |
| Frequency Response (± 10 dB) | 38 Hz - 20 kHz | Sealed: 50 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 50 Hz - 20 kHz | Sealed: 70 Hz - 20 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.5 in / 38.1 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 101 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Soft Dome |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
