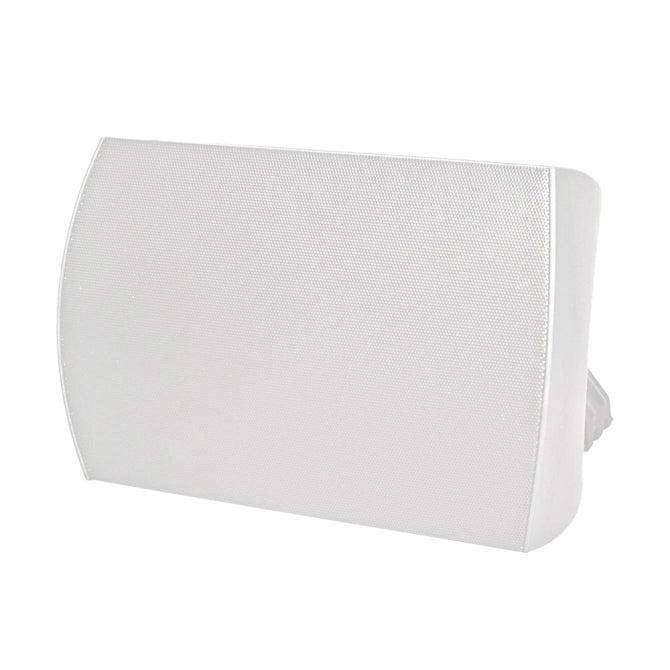

SoundTube IPD-SM52-EZ-WX IP-Addressable Speaker in White
SoundTube IPD-SM52-EZ-WX IP-Addressable Speaker in White
The IPD-SM52-EZ-WX is a Dante-enabled, weather resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating: IP65. Included accessories: Safety cable, wall mount bracket, conduit connector, and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.
*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use. Also: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II).
Specs
| Color | White | |
|---|---|---|
| UPC |
|
|
| Manufacturer | SoundTube | |
| Manufacturer's Category | STNet IP-Addressable and Dante Series | |
| Depth | 6.63 in / 168.4 mm | |
| Height | 11.88 in / 301.75 mm | |
| Width/Diameter | 7.5 in / 190.5 mm | |
| Shipping Weight | 7.8 lbs / 3.54 kg | |
| Carton Height | 12 in / 304.8 mm | |
| Carton Length | 15 in / 381 mm | |
| Carton Width | 10.5 in / 266.7 mm | |
| Certifications | CE, IP65, RoHS, UL60065 | |
| Enclosure Properties | High Impact Polystyrene | |
| Included Accessories | Mounting Hardware, Port Plug, Safety Cable | |
| Source Inputs | RJ45 Ethernet Port | |
| IP Rating | IP65 | |
| Coverage Angle (±6dB @ 2kHz) | 91° Horizontal / 120° Vertical | |
| Crossover Frequency | 3.5 kHz | |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.9 and 5.9 | |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2 and 7.7 | |
| Frequency Response (± 10 dB) | 55 Hz - 20 kHz | Sealed: 62 Hz - 20 kHz | |
| Frequency Response (± 3 dB) | 65 Hz - 20 kHz | Sealed: 80 Hz - 20 kHz | |
| Grille Properties | Aluminum, Powder-Coated, White | |
| Low Frequency Voice Coil | 25.4 mm (1") high temperature Kapton | |
| Max SPL @ 1M | 97 dB | |
| Tweeter Driver | 1" Soft Dome | |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surroun |
