Soundtube HP82-EZ 8" Hanging Speaker
Soundtube HP82-EZ 8" Hanging Speaker - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Soundtube HP82-EZ 8" Hanging Speaker
One 8.0 inch (203 mm) high power coaxial driver with BroadBeam Ring™ compression driver technology for long throw and smooth directivity. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with fiberglass reinforcement for lasting durability in indoor or outdoor applications. 16 ohm impedance for easy daisy chaining in low voltage systems. Aluminum grille with protective finish. Built-in thermal fuse. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Unit ships in eco-friendly, recyclable packaging. UL 1480 UEAY, UL 2239 and EN54-24 listed. Included accessories: hanging hardware, terminal weather boot, cover plate, and AC-RSEZ-HH-10.
Specs
| Manufacturer | SoundTube |
|---|---|
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 12.83 in / 325.9 mm |
| Shipping Weight | 16.5 lbs / 7.5 kg |
| Carton Height | 16 in / 406 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 15 in / 381 mm |
| Certifications | CE, EN54, RoHS, UL1480A, UL2239 |
| Enclosure Properties | Ported, Reinforced ABS |
| Included Accessories | Cover Plate, Hanging Hardware, Weather Plug |
| Optional Accessories | Black Grille (GRL-RS82-EZ-BK)|10' Hanging Cable (AC-RSEZ-HH-10)|20' Hanging Cable (AC-RSEZ-HH-20)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |

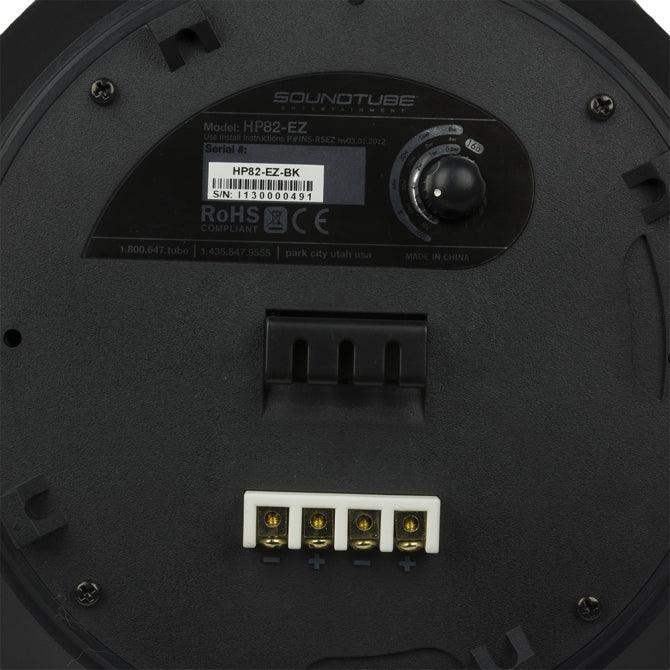

| Source Inputs | 4 Pin Ceramic Terminal |
| Coverage Angle (±6dB @ 2kHz) | 135° |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.6 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6dB |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 110 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.5 in / 38 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 64W |
| Max. Program Power | 128 W |
| Minimum Impedance (Ω Ohms) | 12 Ω |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (Ω Ohms) | 16 Ω |
| Tweeter Driver | 1.38" Titanium Compression Driver w/ Waveguide |
| Woofer Driver | 8" Treated Paper Cone w/ Cloth Surround |
| Sensitivity dB @ 1W/1M | 92 dB |
| Sensitivity dB @ 2.83V/1M | 89 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 16 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
