Shure ULXD4Q Quad-Channel Digital Wireless Mic Receiver - ULXD4Q=-J50A

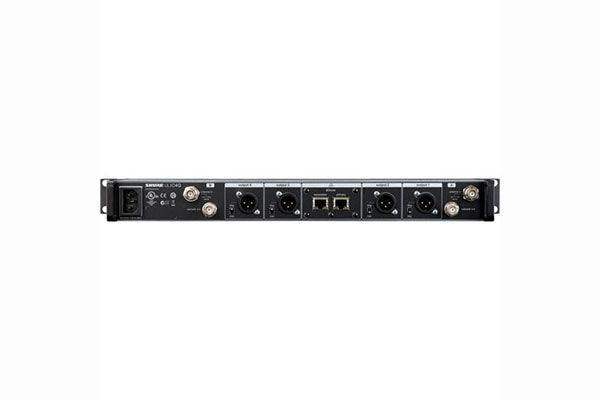

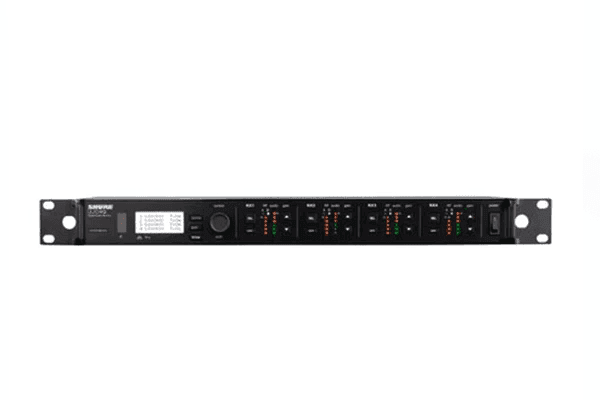

The Shure ULXD4Q ULXD4Q=-J50A Quad Channel Digital Wireless Receiver offers four channels of uncompromising audio quality, RF signal stability, and advanced setup features in a space-efficient single rack unit. Rugged yet lightweight and compact, the 1RU all-metal chassis houses four independent receivers, each with its own audio and RF meters, gain control, and XLR outputs that can be either direct or summed for flexible signal routing. At only 7.6 pounds, the ULXD4Q offers space savings in the rack and cost savings when shipping. With RF cascade and two Ethernet ports, units can easily share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, Dante™ digital networking allows multiple channels of audio over a single Ethernet cable. With the suite of features and benefits ULX-D® Digital Wireless Systems offer, the ULXD4Q is truly generations ahead of any other available receiver in its class, and brings a new level of performance and scale to professional sound reinforcement.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features
- For Large Venues & A/V Installations
- 4 x Digital Audio Channels, 1 Rackspace
- 26 MHz Tuning Range
- Expandable up to 12 Channels
- 2 x Ethernet/Dante Ports
- 2 x RF Cascade Ports
- Audio Summing
- Secure AES-256 Encryption
Specification
Shure ULXD4Q Specs
| Wireless Technology | Digital UHF |
| Number of RF Channel Frequencies | 1760 |
| Diversity | Antenna Diversity |
| RF Frequency Band | J50A: 572 to 608 MHz 614 to 616 MHz |
| RF Bandwidth | 44 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 328.1' / 100 m |
| Max Transmitters per Band | 60 |
| Latency | < 2.9 ms |
| Modulation | Proprietary |
| Receiver Type | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (Full Rack) |
| Antenna | 2 x 1/2 Wave External, BNC (Rear-Mount) |
| Antenna Bias Voltage | 12 to 13 VDC, 150 mA (per Antenna) |
| Number of Audio Channels | 4 |
| Audio I/O | 4 x XLR 3-Pin Male Balanced Output |
| Gain Range | -18 to +42 dB (1 dB Steps) |
| Pad | 30 dB |
| Audio Output Level | XLR Outputs: +18 dBV (Line Level, Balanced) XLR Outputs: -12 dBV (Mic Level) |
| Phantom Power Protection | On XLR Outputs |
| Frequency Response | 30 Hz to 20 kHz ±1 dB (Dependent on Mic) |
| Network I/O | 2 x RJ45 (1 Gb/s) |
| Network Protocols | DHCP, Dante, Manual IP |
| Impedance | XLR Output: 100 Ohms (Balanced) |
| Approximate RF Sensitivity | -98 dBm |
| Adjacent Channel Isolation | >70 dB |
| Spurious | Rejection: >80 dB |
| Power Requirements | AC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.32 A |
| Display & Indicators | 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation) 2 x Multi-Segment LED (AF Level, Output Level, Peak) |
| Housing | Steel |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 19 x 1.7 x 10.8" / 482 x 44 x 274 mm |
| Weight | 7.6 lb / 3.4 kg |
| Package Weight | 12.1 lb |
| Box Dimensions (LxWxH) | 27.5 x 17.5 x 3.6" |
