Shure SLXD5 Digital Camera-Mount Wireless Microphone Receiver (G58: 470 to 514 MHz) - SLXD5=-G58

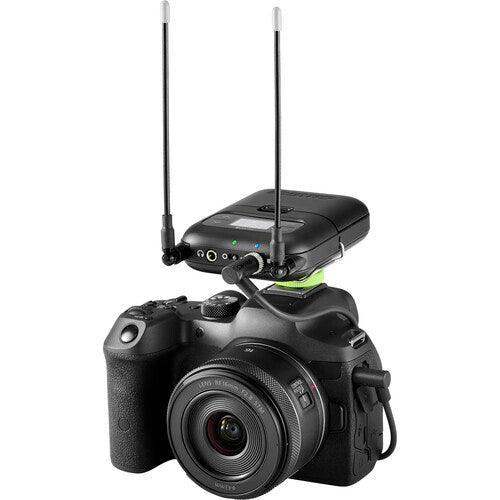

Designed to meet the needs of today's videographers, journalists, documentary makers, and content producers, the Shure SLXD5 is a camera-mount digital wireless microphone receiver that delivers crystal-clear sound quality and is quick and easy to set up, even if you're using multiple systems on set. Compatible with the SLXD1 bodypack, SLXD2 handheld, and SLXD3 plug-on transmitters, the versatile single-channel receiver includes a cold-shoe mount for your camera and also fits perfectly into an audio bag. The comprehensive feature set ensures reliable wireless transmission and professional-sounding, broadcast-ready results for demanding filmmakers and creators.

• The SLX-D delivers 24-bit digital audio with a fast transient response, a 20 Hz to 20 kHz frequency response, and a 118 dB dynamic range, resulting in clear, accurate sound.
• Operating far away from potential Wi-Fi interference in the 2.4 GHz band, this version of the receiver operates in the G58: 470 to 514 MHz UHF band, with a 44 MHz tuning range and 1760 frequencies it can autoscan to ensure a clean wireless signal.
• Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas before dropouts occur.
• A low latency of 3.2 ms helps ensure your sound and picture are easy to properly sync.
• The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
• Great for shoots with several cameras and microphones, Multi-Mic Mode lets you scan and create a list of clean frequencies which you can send to multiple receivers via IR.
• Each receiver will sync to the appropriate transmitter at the touch of a button; settings on the transmitters like the input gain and high-pass filter are also recalled.
• Multi-Mic Mode makes channel allocation easier and efficient since the receivers aren’t all auto-scanning and competing for open frequencies.

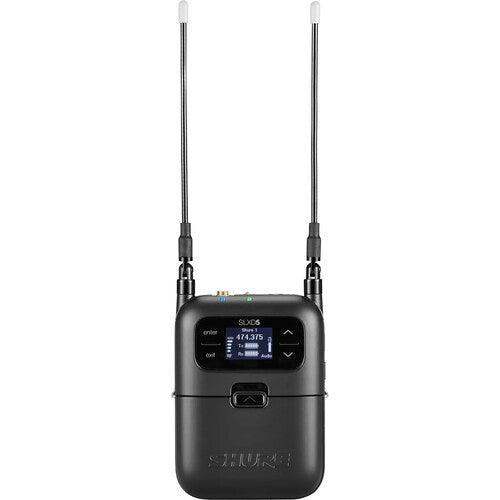

• Powerful and portable, the SLXD5 features user-configurable front-panel controls and a bright OLED screen for key system function readouts and remaining battery life.
• Housed in a tough metal chassis with adjustable front-mounted antennas, the SLXD5 is a great fit for on-the-go shooting rigs.
• It offers adjustable gain control and dual 3.5mm outputs including a headphone monitor out and a switchable line/mic output. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

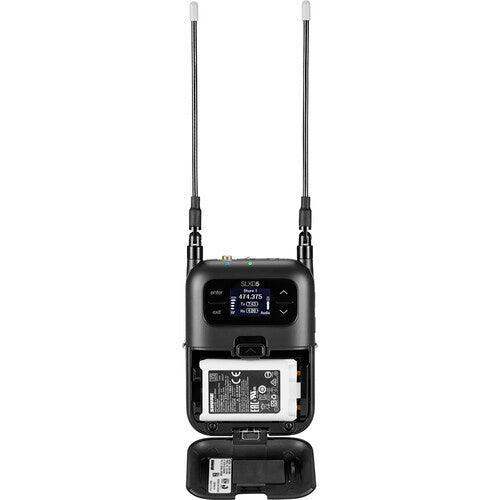

• Two AA batteries (included) or an SB903 rechargeable battery (available separately) will power the unit for up to 5.5 hours.
• The USB-C port can be used to recharge the SB903 battery or power the unit.

• Adding the SB903 lithium-ion rechargeable battery, along with an SBC10-903 single charger, SBC203 dual-docking charger, or SBC80-903 8-bay charger offers a cost-effective and environmentally friendly alternative to throwing away AA batteries (batteries and chargers available separately).
• Using the SB903 battery and SBC203 charger simplifies the task of keeping multiple transmitters charged and ready—you can even recharge the battery while still in the transmitter or receiver.
• When powered by an SB903, the transmitter and receiver both display the remaining battery life in hours and minutes.
• For bag use, the SBC-DC-903 battery eliminator (available separately) allows you to power the receiver from your mixer's battery.

Shure offers numerous transmitter and microphone options to adapt your SLX-D system as your needs evolve.



• The SLXD1 bodypack transmitter has a durable and ergonomic design and features a TA4M connector that allows it to work with a wide range of Shure lavalier and headset microphones.
• The WL183 omnidirectional lavalier mic offers consistent pickup, even when the talent turns away from the mic.
• The WL184 supercardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
• The discrete UL4 UniPlex subminiature cardioid lav provides directional pickup, exceptional clarity, and a discreet, low-profile appearance.
• If you need a waterproof option, the DL4 DuraPlex miniature lavalier features an IP57 rating for water and dust resistance. Its forgiving omnidirectional microphone capsule delivers a clear, transparent, full-range sound.
• The SLXD2 handheld transmitter is available with several mic capsules choices for presenters who prefer the flexibility of a handheld microphone.
• Add the XLR microphone of your choice to the system with the SLXD3, a plug-on transmitter with a secure locking connector that features both 12 and 48V phantom power for condenser mics.

• Use with SLX-D Wireless Transmitters
• 1-Channel Receiver for Camera or Bag Use
• 118 dB Dynamic Range, 24-Bit Audio
• Reliable Predictive-Diversity Antennas
• 44 MHz Bandwidth, 1760 Frequencies
• Multi-Mic Mode for Complex Setups
• Easy-to-Read OLED Screen
• 5.5 Hours on Two AA or SB903 Battery
• Expandable to 32 Mic Channels/330'

Specs

Wireless Technology	Digital UHF
Diversity	True Digital Diversity
Max Operating Range	328' / 100 m
Receiver Type	Camera-Mount
Number of Audio Channels	1
Audio I/O	1x 1/8" / 3.5 mm TRS Female Balanced Mic/Line Output 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Network I/O	No
Power Requirements	Battery, Bus Power (USB)
