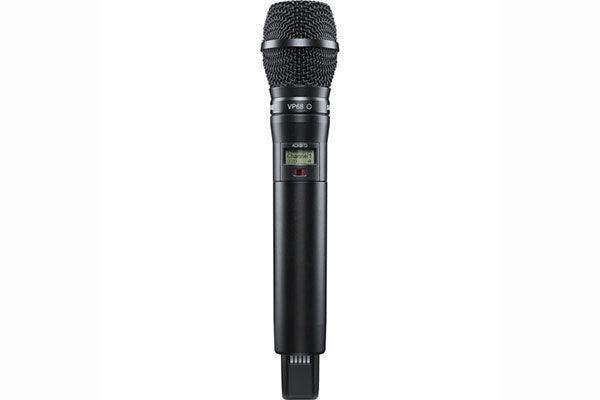

Shure ADX2FD/VP68 Digital Handheld Wireless Microphone Transmitter with VP68 Capsule
Shure ADX2FD/VP68 Digital Handheld Wireless Microphone Transmitter with VP68 Capsule - ADX2FD/VP68=-G57 (941-960 MHZ) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Shure ADX2FD/VP68 Digital Handheld Wireless Microphone Transmitter ...
Description
The Shure ADX2FD/VP68 is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters. The transmitter also features Frequency Diversity for seamless audio in even the most challenging RF environments.
The ADX2FD/VP68 comes equipped with a VP68 condenser capsule that delivers a natural sound optimized for speech intelligibility. The capsule's omnidirectional polar pattern ensures that the sound remains consistent, even when moving the mic between speakers.
Features
- For Axient Digital Systems
- VP68 Condenser Omnidirectional Mic
- Frequency Diversity & ShowLink Control
- Automatic Gain Adjustment
- 2/10/50mW RF Output Power
- Mute Mode, Backlit LCD
- Secure AES-256 Encryption
- Networked Intelligent Charging
- Interchangeable Capsule Design
- 9 Hours with SB920 Rechargeable Battery
Specification
| Wireless Technology | Digital UHF |
| RF Frequency Band | 417 to 616 MHz |
| RF Bandwidth | 146 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 328.1' / 100 m (Line of Sight) |
| Latency | 2 to 2.9 ms (Selectable) |
| Encryption | AES 256 |
| Modulation | Proprietary |
| Transmitter Type | Handheld |
| RF Output Power | 2 / 10 / 20 / 50 mW (Switchable) |
| Audio I/O | None |
| Pad | 12 dB |
| Muting | Mute Switch |
| Audio Input Level | 145 dB |
| Gain Range | -12 to +21 dB (3 dB Steps) |
| Sync Method | IR |
| Antenna | 1 x Internal (Handheld) |
| Power Requirements | Battery |
| Battery Type | 1 x Rechargeable (Included, Replaceable) |
| Approx. Battery Life | Med.: 9 Hours (Lithium) High: 5 Hours (Lithium) |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Group, Signal Strength) |
| Housing | Aluminum |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 2 x 10" / 51 x 254 mm |
| Weight | 11.9 oz / 338 g (without Batteries) |
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 40 Hz to 20 kHz |
| Maximum SPL | 136.5 dB SPL |
| Sensitivity | 41 dBV/Pa at 1 |
| Dynamic Range | 118 dB |
