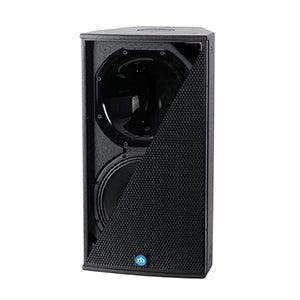

Renkus-Heinz CX121 2‐Way, Full Range Loudspeaker 12" LF, 1" HF - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
12-Inch Heavy Duty Woofer + 2-inch Titanium HF Driver
Sound that makes performances and audiences truly come alive doesn’t come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.
The C121 features a 12-inch heavy duty woofer and a 2-inch titanium HF driver.
CX121 Non-Powered Loudspeakers
For use with external amplification
Features
• Compact Design
Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design.
• Exclusive 90° x 40° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
• 2-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 18 kHz and beyond.
• Heavy-Duty 12-inch Woofer
Easily handles 600 Watts of program power.
• Built-in Crossover
Includes EQ and high frequency protection; in the C121 eliminates need for a separate electronic crossover and bi-amplification.
If you need an outstanding high-power 12-inch 2-way system, order the C121.
Applications
• Virtually any application where size is a critical issue and outstanding sonic performance is required.
Permanent Installations
• Ideal compact main PA for music and speech or as part of a high output distributed system in larger venues.
• Houses of worship, schools, performing art centers, night clubs, stadiums and arenas.
Portable Applications
• Ideal main PA for unobtrusive live music and speech reinforcement or as fill coverage in larger systems.
• Rental A/V, DJ systems, churches, schools, etc.
Specs
Technical Information |
||
Sensitivity: | CX121 | 97 dB (1W/1m) |
Max SPL: | CX121 | 128 dB Peak |
CA121-A CA121-RN CA121-RD |
127 dB Peak | |
Dispersion: | CX121 CA121-A CA121-RN CA121-RD |
90° x 40°, rotatable horn, (60° x 40° available for purchase) |
Freq. Response: | CX121 CA121-A CA121-RN CA121-RD |
± 3 dB, 60 Hz to 20 kHz |
HF Driver: | CX121 CA121-A CA121-RN CA121-RD |
SSD1747-8 driver, 60 W AES @ 8 ohms |
LF Driver: | CX121 CA121-A CA121-RN CA121-RD |
SSL12-26, 350 W AES @ 8 ohms |
Enclosure: | CX121 CA121-A CA121-RN CA121-RD |
Poplar Ply, perforated metal grille |
Finish: | CX121 CA121-A CA121-RN CA121-RD |
Black or White Paint |
Power Rating: | CX121 | 350 W AES @ 8 Ohms 700 W Pgm @ 8 Ohms |
CA121-A CA121-RN CA121-RD |
See SA-1250 Amplifier | |
Connectors: | CX121 | Screw terminals & looping 4-pin Neutrik Speakon style connectors |
CA121-A CA121-RN CA121-RD |
See SA-1250 Amplifier | |
Hardware: | CX121 CA121-A CA121-RN CA121-RD |
12-point Universal Mounting Hardware (Metric M10 threads) M10 U-bracket attachment points |
Dimensions: | CX121 CA121-A CA121-RN CA121-RD |
27″ H x 14-3/8″ W x 14-1/4″ D 686 x mm H x 365 mm W x 362 mm D |
Weight: | CX121 CA121-A CA121-RN CA121-RD |
45 lbs / 20.4 kg, Net |
SA1250 Specifications |
||
Audio Connections: | CA121-A | 2 x XLR-3, In & Loop-out, Analog |
CA121-RN | 2 x XLR-3, In & Loop-out, Analog and AES | |
CA121-RD | 2 x XLR-3, In & Loop-out, Analog and AES 2 x RJ45 Dante Primary & Secondary Ethernet |
|
Network Connections: | CA121-RN | 2 x RJ45, Looping Ethernet/RHAON |
CA121-RD | 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.) | |
Maximum Input Level: | CA121-A | +22 dBu, Analog |
CA121-RN CA121-RD |
+22 dBu, Analog, 0 dBFS digital | |
User DSP: | CA121-RN CA121-RD |
Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms. |
Software: | CA121-RN CA121-RD |
RHAON II |
Latency: | CA121-A CA121-RN |
6.25 ms |
CA121-RD | 6.25 ms + Dante transport latency | |
Power Output: | CA121-A CA121-RN CA121-RD |
LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers. |
Mains Voltage: | CA121-A CA121-RN CA121-RD |
100-240 volts, 50/60 Hz auto-switching |
Power Consumption: | CA121-A CA121-RN CA121-RD |
Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting) |
Power Connector: | CA121-A CA121-RN CA121-RD |
Neutrik powerCON TRUE-1 |
Temprature Limits: | CA121-A CA121-RN CA121-RD |
Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C. |
