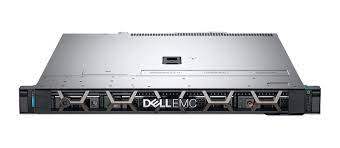

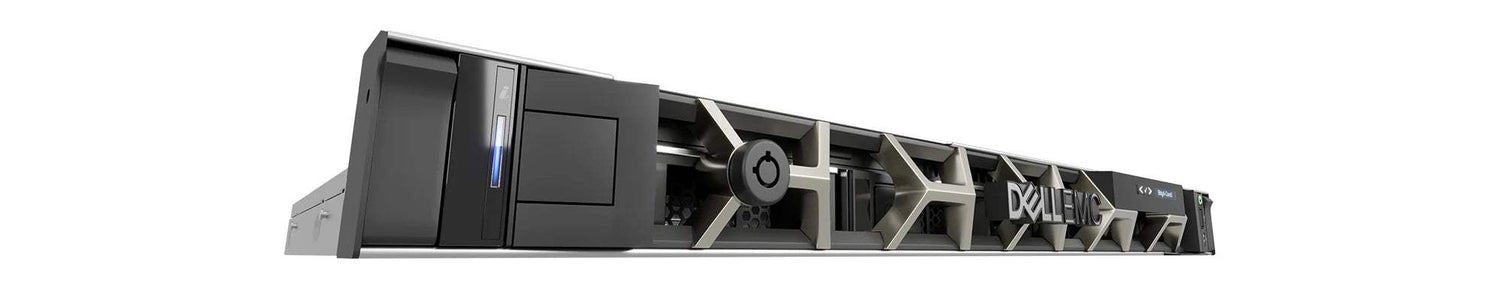

Q-SYS Core 610 Enterprise-Grade AV&C Processor for Large-Scale Audio Video Systems

The Q-SYS Core 610 is a high-performance, fully networked audio, video, and control (AV&C) processor designed for large-scale AV environments. Powered by the robust Q-SYS OS and based on enterprise-grade Dell server hardware, the Core 610 provides unparalleled scalability, reliability, and flexibility across complex installations. Whether you're centralizing control across an enterprise or powering AV processing in high-traffic venues, the Core 610 ensures high-capacity performance and seamless network integration.

Key Features and Benefits

• Enterprise-Level Performance: 256 x 256 Q-LAN/AES67 audio channels, 64 AEC processors, and up to 128 x 128 Dante support (expandable).
• Flexible AV Infrastructure: Fully networked architecture enables distributed I/O and centralized processing across rooms and zones.
• Expandable Capabilities: Unlock additional capacity with software-based Q-SYS Core 610 Scaling License (DSP power, channels, microphones, etc.).
• Advanced Control Integration: Includes iDRAC, RS232, SNMP, and LDAP support for enterprise IT system compatibility.
• Onboard Media Storage: 480 GB internal drive (440 GB user-available) supports multitrack playback and recording.
• Redundant Networking: Dual gigabit Ethernet ports ensure robust and fail-safe AV data transmission.

Ideal Applications

• Boardrooms and Executive Suites
• Enterprise Conference Rooms
• Houses of Worship AV Control
• Government Command Centers
• Corporate Meeting Spaces
• Multi-purpose Event Rooms
• All-Hands Collaboration Halls
• Hospitality and Entertainment Venues
• Transportation Terminals and Hubs

Q-SYS + Dell: Industry-Tested Reliability

Through a strategic partnership with Dell, the Q-SYS Core 610 leverages proven enterprise hardware for mission-critical AV deployments. This results in a processor that not only delivers real-time DSP processing, video switching, and control, but also aligns seamlessly with IT protocols and infrastructure requirements.

Networked AV Architecture

The Core 610 simplifies system topology by allowing decentralized input/output placement while maintaining centralized control. This supports larger installations where flexible routing, easy scaling, and reduced hardware footprints are essential.

Scalable Licensing and Upgrade Path

With Q-SYS firmware-based licensing, the Core 610 can grow alongside your AV deployment. The optional Scaling License (Q-SYS Designer v9.9+) enhances DSP power, AEC capacity, streaming bandwidth, and microphone support — all without additional hardware.

Specifications Overview

Core Specifications

• Hardware Platform: Dell PowerEdge R250
• Power Supply: 450W universal PSU
• Network: 4x Gigabit Ethernet, iDRAC v9, RS232 port
• Cooling: Forced air ventilation with front intake and rear exhaust
• Form Factor: 1RU rack mount

Control & Monitoring

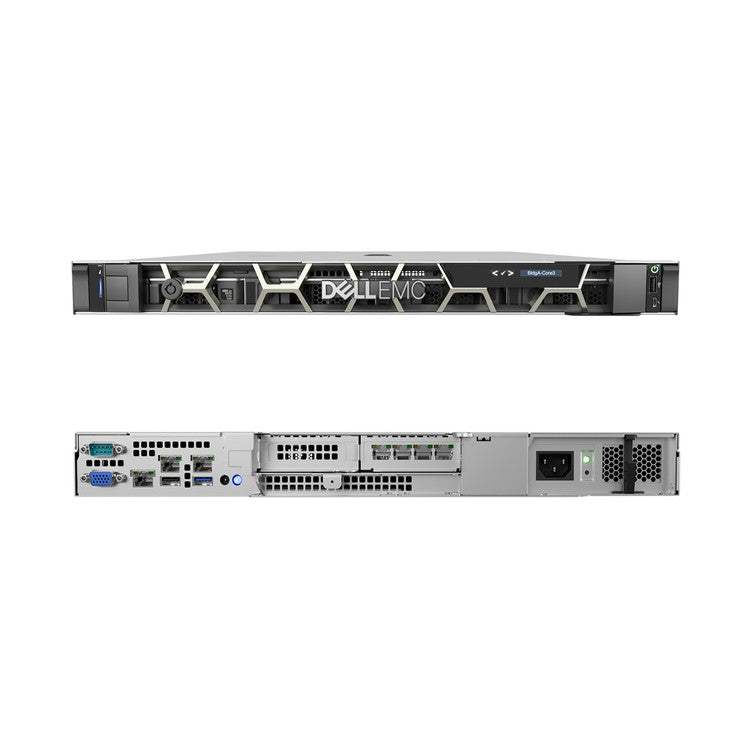

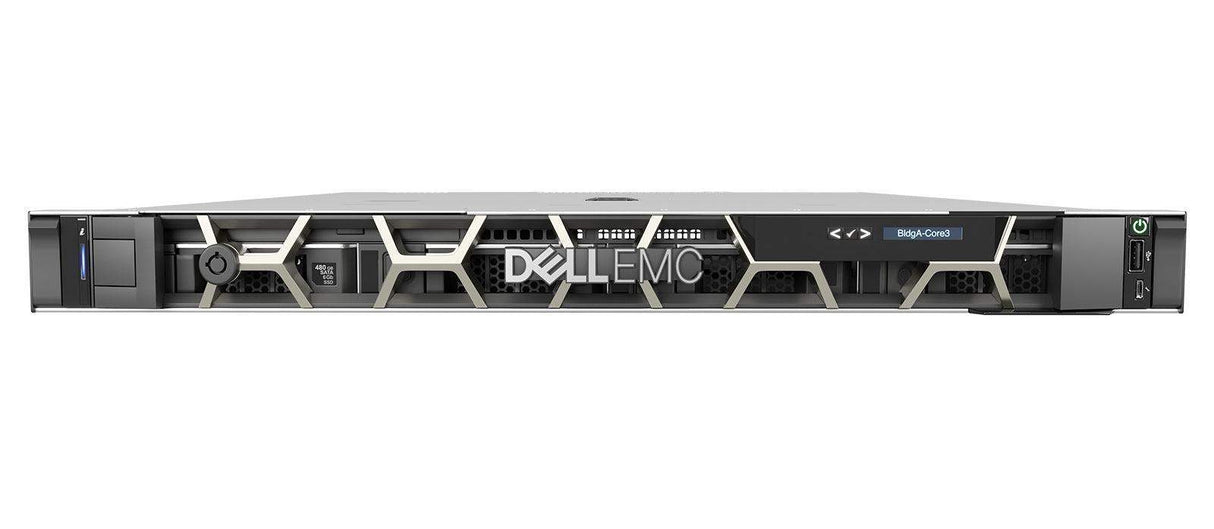

• Front Panel: Power button, LCD display with navigation, ID indicators

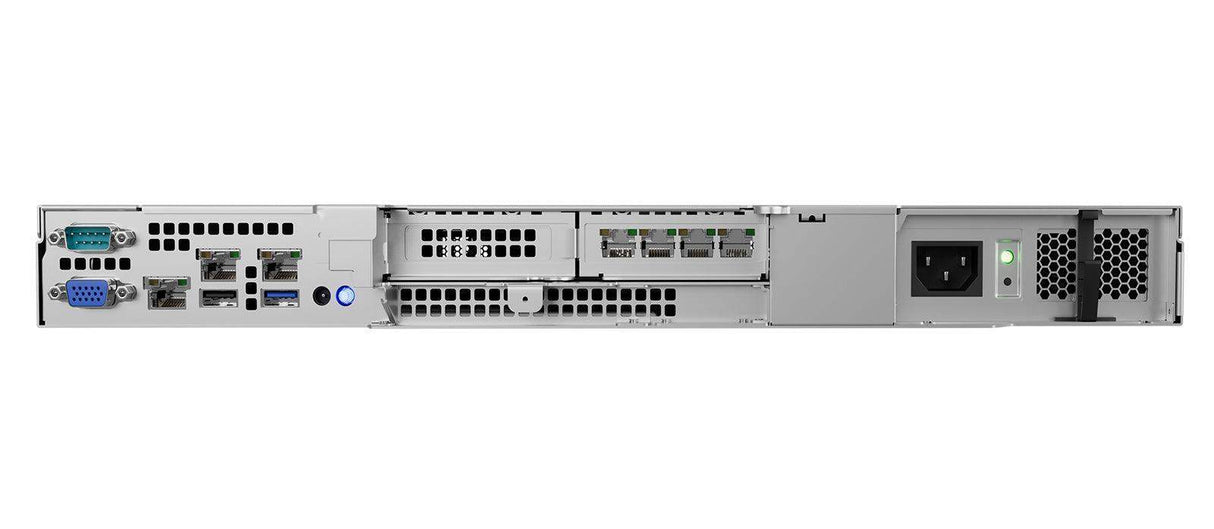

• Rear Panel: ID indicators, iDRAC integration

Q-SYS Capacities (Base vs. Licensed)

Competitive Advantages

• Fully integrated AV&C platform — unlike segmented competitors requiring separate devices.
• Cloud-manageable and IT-friendly — supports remote updates, diagnostics, and monitoring.
• Q-SYS OS compatibility ensures seamless pairing with network microphones, amplifiers, control panels, and third-party AV devices.
• Software-defined feature scaling — reduces capital expenditure while allowing future expansion.

Comparison Table

Product Video

Complete Your AV System with Confidence

Whether you are building a future-ready enterprise AV network or scaling audio and video systems across a campus or venue, the Q-SYS Core 610 offers unmatched control, flexibility, and scalability — all with native Q-SYS ecosystem support.
