Epiphan Pearl Mini Live Video Production System
Epiphan Pearl Mini Live Video Production System is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Epiphan Pearl Mini Live Video Production System

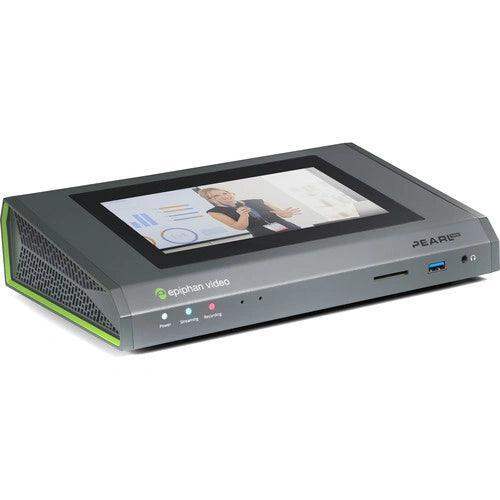

The Epiphan Pearl Mini Live Video Production System lets you switch, record, and stream up to two HD video inputs. This touchscreen-operated device will fit right into classrooms, lecture halls, houses of worship, or any other situation that requires simple switching operations with the capacity to record and stream content live.

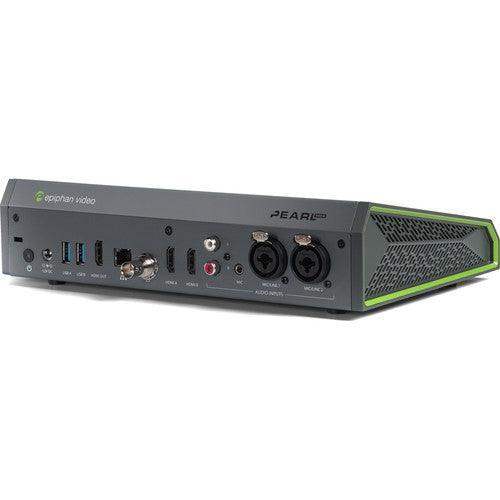

On the rear panel, SDI and HDMI inputs are available for cameras, playback devices, and computers; no scaling or scan-conversion is necessary. For audio, combo jacks support XLR microphones and 1/4" TRS connections. 3.5mm microphone and stereo RCA line inputs are available as well. An HDMI output can be used to monitor any video input or the switched program.
Built-in, hardware-accelerated encoding happens in real time for streaming and recording. A choice of formats is available to match your workflow for streaming to popular CDNs or recording to an SD card. After recording to the card, you have the option of copying the recording to an attached USB drive.
- 2-Input Video Production System
- SD, HD, and Computer Signal Compatible
- SDI and HDMI Inputs
- Combo Jack Inputs for Mic/Line Audio
- Built-In Touchscreen Monitor
- HDMI Confidence Monitor/Multiview Output
- Stream Live over Ethernet
- 2-Channel Picture-in-Picture
- Built-In Hardware-Accelerated Encoding
- Record Video to SD Cards
Specs
Epiphan Pearl Mini Specs
| Video Inputs | SDI: 1 x BNC, 3G-SDI HDMI: 2 x HDMI type A |
| Audio Inputs | Mic/Line: 2 x XLR/TRS combo Mic: 1 x 3.5 mm Line: 1 x 2RCA |
| Outputs | HDMI: 1 x HDMI type A |
| Video Encoding | Codecs: H.264, MP4, MJPEG Formats: AVI, MP4, MOV, MPEG-TS Bit Rate: 1-50 Mb/s Chroma Subsampling: 4:2:0 Maximum Resolution: 1920 x 1200 |
| Audio Encoding | Formats: MP3, PCM, AAC Sample Rate: 16-bit, 48 kHz Bit Rate: Up to 320 kb/s (compressed audio) |
| Network | Ethernet: 1 x RJ45, 10/100/1000 |
| Storage | Memory Card: 1 x SD card, up to 512 GB Local USB: 2 x USB 3.0 host ports Network: FTP, SFTP, SCP, RSYNC, CIFS, AWS, or WebDav servers |
| Dimensions | 10.25 x 6.75 x 2.4" / 26.1 x 17.2 x 6 cm |
| Weight | 3.8 lb / 1.7 kg |
| Package Weight | 8.5 lb |
| Box Dimensions (LxWxH) | 18.3 x 15.7 x 9.4" |
