Epiphan LiveScrypt
Fast to set up and requiring only a LAN connection to the internet, the Epiphan Video LiveScrypt is a portable box that enables you to provide highly accurate live transcription from video or audio for live events. The box sends the audio to the cloud where it is turned into text and sent back for display by the device. As LiveScrypt supports Google's basic ASR languages, it supports a wide range of dialects and accents.

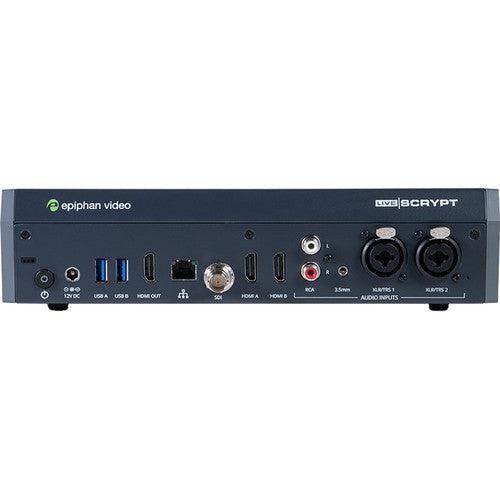

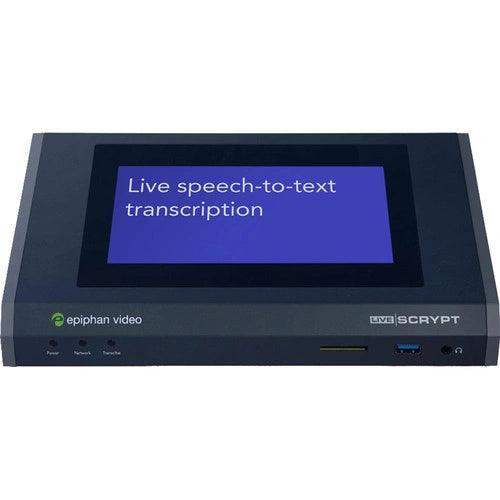

The LiveScrypt device features HDMI, SDI, and UVC video over USB with embedded audio as well as analog audio input via XLR, 1/4" phone, or RCA inputs. The text displays on the device's 7" LCD touchscreen as well as via the HDMI output to monitors for the audience to read. The touchscreen allows you to select the background for the displayed text as well as adjust settings and engage filters such as the profanity filter.
Live Transcription
Language Support
- Afrikaans
- Albanian
- Amharic
- Arabic
- Armenian
- Azerbaijani
- Basque
- Bengali (India)
- Bosnian
- Bulgarian
- Burmese
- Catalan
- Chinese
- Croatian
- Czech
- Danish
- Dutch
- English
- Estonian
- Filipino
- Finnish
- French
- Galician
- Georgian
- German
- Greek
- Gujarati
- Hebrew (Israel)
- Hindi
- Hungarian
- Icelandic
- Indonesian
- Italian
- Japanese
- Javanese
- Kannada
- Khmer
- Korean
- Lao
- Latvian
- Lithuanian
- Macedonian
- Malay
- Malayalam
- Marathi
- Mongolian
- Nepali
- Norwegian Bokmål
- Persian
- Polish
- Portuguese
- Punjabi
- Romanian
- Russian
- Serbian
- Sinhala
- Slovak
- Slovenian
- Spanish
- Sundanese
- Swahili
- Swedish
- Tamil
- Telugu
- Thai
- Turkish
- Ukrainian
- Urdu
- Uzbek
- Vietnamese
- Zulu
Accurate
Specs
Epiphan Livescrypt Specs
| Touchscreen | 7" LCD Confidence Monitor |
| Inputs | Video HDMI: 2 x Type-A SDI: 1 x BNC UVC: 1 x USB Type-A (on Rear Panel) Analog Audio Balanced: 2 x Combo XLR-1/4" (Female) Unbalanced: 1 x 2RCA Microphone: 1 x 3.5mm Stereo Digital Audio Embedded in Video Signal |
| Outputs | Video HDMI: 1 x Type-A Analog Audio Headphone: 1 x 3.5mm Stereo (Front Panel) |
| Supported Video | Resolution 720 x 480p to 1920 x 1200p Frame Rate Up to 60 fps |
| Interface | Ethernet: 1 x RJ45 10/100/1000 Base-T, Half/Full Duplex with Autodetect |
| Protocols | USB: 1.1, 2.0, 3.0 Ethernet: DHCP, HTTP, HTTPS HDMI: HDCP Compliant |
| File Formats | Transcription: SRT. TXT |
| Power | Power Supply 100 to 240 VAC, 50 to 60 Hz Device 12 VDC, 5.0 A with 60 W Power Supply 12 VDC, 7.0 A with 84 W Power Supply |
| Environment | Operating Temperature: 32 to 104°F / 0 to 40°C |
| Cooling | Fan |
| Mounting | Desktop VESA Mountable |
| Time Synchronization | NTP, PTPV1, RDATE |
| Compliance | FCC Compliance: Part 15 CE Compliance: Directive 2014/30/EU - Electromagnetic Compatibility Directive 2014/35/EU - Low-Voltage Directive Directive 2011/65/EU - RoHS |
| Dimensions | 10.28 x 6.77 x 2.36" / 26.1 x 17.2 x 6 cm |
| Weight | 3.75 lb / 1.7 kg |
| Package Weight | 9.555 lb |
| Box Dimensions (LxWxH) | 18 x 15.7 x 9.7" |
