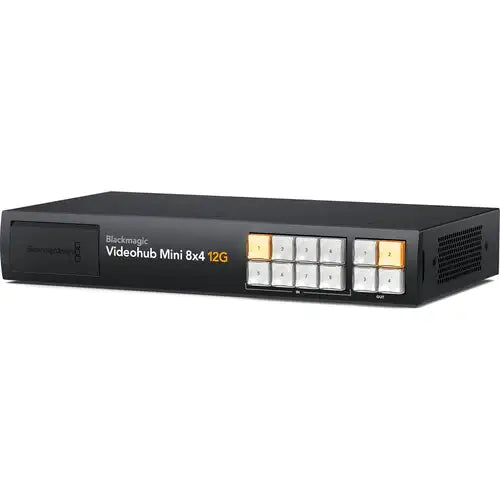

Blackmagic Design Videohub Mini 8x4 12G
Blackmagic Design Videohub Mini 8x4 12G is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blackmagic Design Videohub Mini 8x4 12G
Blackmagic Design Videohub Mini 8x4 12G – VHUBSMTK12G0804
The Blackmagic Videohub Mini 8x4 12G is a compact yet powerful video router designed for professional broadcast and live production environments. Featuring 8 inputs and 4 outputs with 12G-SDI connectivity, it supports Ultra HD video up to 2160p60 over a single cable, delivering high-quality signal routing with minimal latency. This router is perfect for small to medium production setups requiring reliable and fast video switching between multiple sources and destinations.
Built with robust hardware and a simple user interface, the Videohub Mini 8x4 12G integrates easily into existing broadcast infrastructures and control systems. Its IP-based Ethernet control allows remote operation via software or control panels, providing flexible and centralized routing management in studios, OB trucks, and live event setups.
Features
-
8 Inputs and 4 Outputs with full 12G-SDI support for Ultra HD workflows
-
Supports Video up to 2160p60 over a single SDI cable
-
Compact 1RU Rackmount Design ideal for space-constrained environments
-
Low Latency, High-Quality Signal Routing with robust 12G-SDI connections
-
IP-Based Ethernet Control compatible with software and hardware control panels
-
Simple User Interface for fast and intuitive video routing
-
Scalable and Flexible to integrate with larger Videohub systems
Specifications
| Specification | Details |
|---|---|
| Model Number | VHUBSMTK12G0804 |
| Inputs | 8 x 12G-SDI |
| Outputs | 4 x 12G-SDI |
| Max Resolution | Up to 2160p60 (Ultra HD) |
| Control Interface | Ethernet (IP control) |
| Video Standards Supported | SD, HD, 3G, 6G, 12G SDI |
| Form Factor | 1RU rack-mount |
| Latency | Ultra low |
| Power | Internal power supply |
| Dimensions | Approx. 17.4" x 8.4" x 1.75" |
| Weight | Approx. 5 lbs (2.3 kg) |
Comparison Table
| Feature | Videohub Mini 8x4 12G | Videohub 40x40 12G |
|---|---|---|
| Inputs | 8 | 40 |
| Outputs | 4 | 40 |
| Max Resolution | Up to 2160p60 | Up to 2160p60 |
| Form Factor | 1RU rackmount | 2RU rackmount |
| Control Interface | Ethernet | Ethernet |
| Ideal Use Case | Small to medium production | Large broadcast facilities |
